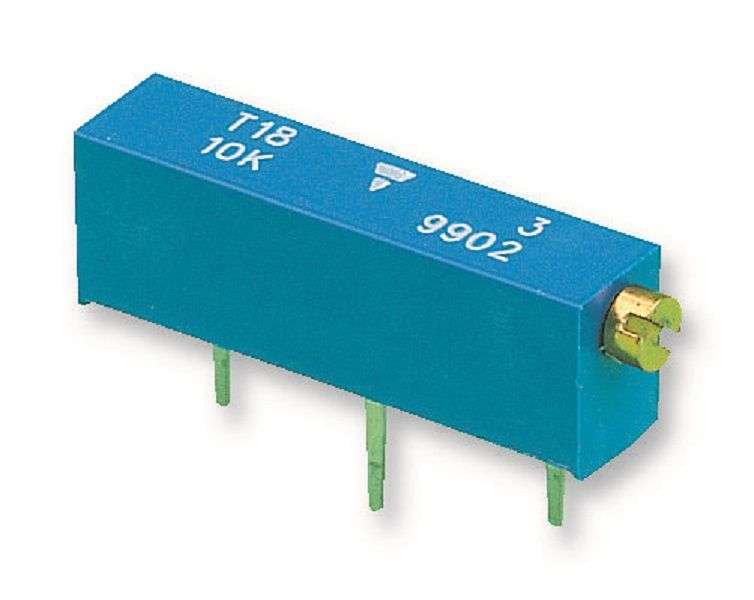

Vishay (T18103KT10) Trimpot, Multi Turn, Cermet, Side Adjust, 10 kohm

Vishay (T18103KT10) Trimpot, Multi Turn, Cermet, Side Adjust, 10 kohm

228 available / new
R269.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1141462
Bob Shop ID
645128201
Trimpot, Multi Turn, Cermet, Side Adjust, 10 kohm, Through Hole, 18 TurnsProduct InformationTrack Resistance: 10kohmTrimpot Type: Multi TurnNo. of Turns: 18TurnsElement Material: CermetAdjustment Type: Side AdjustPower Rating: 750mWPotentiometer Mounting: Through HoleResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CProduct Range: T18Trimpot Shape / Size: 3/4 Inch RectangularResistor Case / Package: -Product Length: 19mmProduct Width: 4.8mmProduct Height: 6.4mmOperating Temperature Min: -55°COperating Temperature Max: 125°CQualification: -Product OverviewThe T18 series 3/4-inch rectangular multi-turn Cermet Trimmer offersmulti-finger wiper for better CRV and clutch action end stop torque.Pure Sn (e³) terminals1000V Dielectric strength (RMS)10³MR Minimum insulation resistance (500VDC)IP67 Protection rating (fully sealed)
