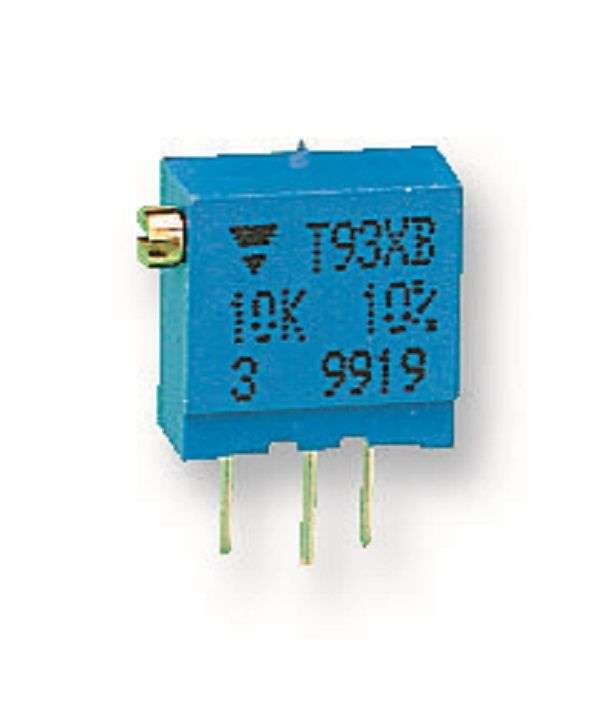

Vishay (T93XB103KT20) Trimpot, Multi Turn, Cermet, Side Adjust, 10 kohm

Trimpot, Multi Turn, Cermet, Side Adjust, 10 kohm, Through Hole, 23 TurnsProduct InformationTrack Resistance: 10kohmTrimpot Type: Multi TurnNo. of Turns: 23TurnsElement Material: CermetAdjustment Type: Side AdjustPower Rating: 500mWPotentiometer Mounting: Through HoleResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CProduct Range: T93Trimpot Shape / Size: 3/8 Inch SquareResistor Case / Package: -Product Length: 9.7mmProduct Width: 5mmProduct Height: 9.8mmOperating Temperature Min: -55°COperating Temperature Max: 155°CQualification: -Product OverviewThe T93 is a small size trimmer - 3/8" x 3x8" x 3/16" - answering PC boardmounting requirements. Five versions are available which differ by the positionof the control screw in relation to the PC board plane and by the spacing of theterminals. Excellent operational stability is provided by the use of a cermetelement.Industrial grade21 turns Electrical travel23 turns Mechanical travelFully sealed - IP67Operating temperature range -55°C to +125°CResistance value range: 10 R to 2.2MR
