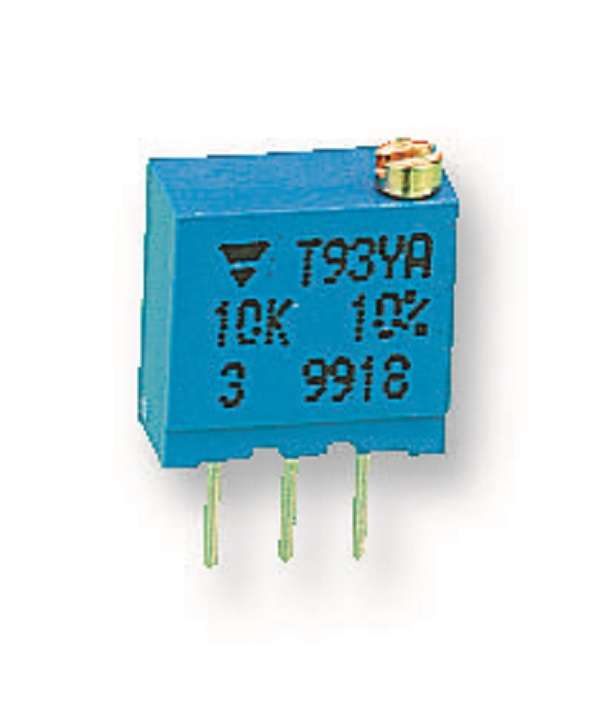

Vishay (T93YA501KT20) Trimpot, Multi Turn, Cermet, Top Adjust, 500 ohm

Trimpot, Multi Turn, Cermet, Top Adjust, 500 ohm, Through Hole, 23 TurnsProduct InformationTrack Resistance: 500ohmTrimpot Type: Multi TurnNo. of Turns: 23TurnsElement Material: CermetAdjustment Type: Top AdjustPower Rating: 500mWPotentiometer Mounting: Through HoleResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CProduct Range: T93Trimpot Shape / Size: 3/8 Inch SquareResistor Case / Package: SIPProduct Length: 9.7mmProduct Width: 5mmProduct Height: 9.8mmOperating Temperature Min: -55°COperating Temperature Max: 155°CQualification: -Product OverviewThe T93 is a small size trimmer - 3/8" x 3x8" x 3/16" - answering PC boardmounting requirements. Five versions are available which differ by the positionof the control screw in relation to the PC board plane and by the spacing of theterminals. Excellent operational stability is provided by the use of a cermetelement.Industrial grade21 turns Electrical travel23 turns Mechanical travelFully sealed - IP67Operating temperature range -55°C to +125°CResistance value range: 10 R to 2.2MR
