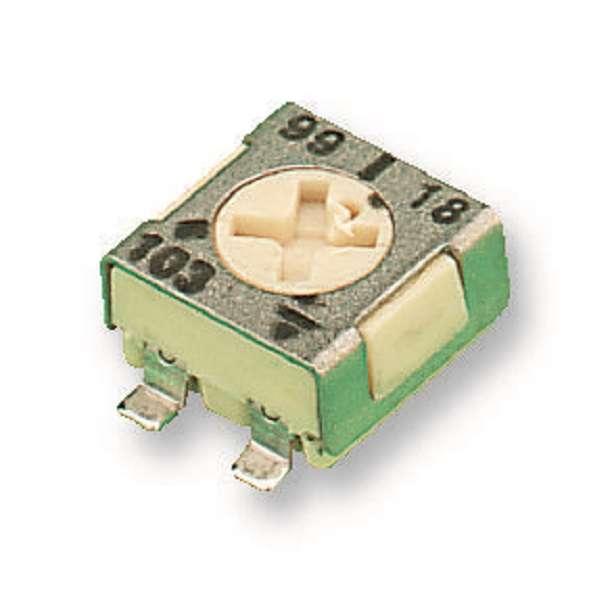

Vishay (TS53YL103MR10) Trimpot, Single Turn, Cermet, Top Adjust, 10 kohm

Trimpot, Single Turn, Cermet, Top Adjust, 10 kohm, Surface Mount, 1 TurnsProduct InformationTrack Resistance: 10kohmTrimpot Type: Single TurnNo. of Turns: 1TurnsElement Material: CermetAdjustment Type: Top AdjustPower Rating: 250mWPotentiometer Mounting: Surface MountResistance Tolerance: ± 20%Temperature Coefficient: ± 100ppm/°CProduct Range: TS53Trimpot Shape / Size: 5 mm SquareResistor Case / Package: SMDProduct Length: 5mmProduct Width: 5mmProduct Height: 2.7mmOperating Temperature Min: -55°COperating Temperature Max: 155°CQualification: -MSL: MSL 4 - 72 hoursProduct OverviewThe Vishay TS53 series are single turn, cermet sealed, surface mount miniaturetrimming potentiometers. These trimming potentiometer are designed for surfacemount applications and offers volumetric efficiency with high performance andstability. TS53 design is suitable for both manual and automatic operation andcan withstand wave and reflow soldering techniques.5mm square shape potentiometerResistance value ranges 10 ohm to 1MohmPower rating of 0.25W at 70°C±20% toleranceMaximum working voltage is 200VSealing is IP67 ratedTemperature coefficient is resistance (TCR) is ±100ppm/°CSmall size for optimum packaging densityTests according to CECC 41000 or IEC 60393-1Operating temperature range from -55°C to 125°C
