Vishay (TSM4YJ103KR05) Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm

Vishay (TSM4YJ103KR05) Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm

258 available / new
R539.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
1141348
Bob Shop ID
645125844

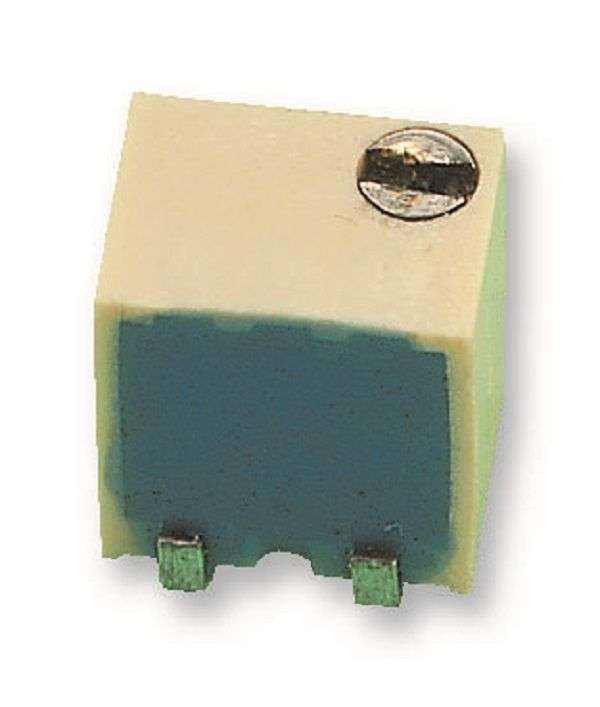

Trimpot, Multi Turn, Cermet, Top Adjust, 10 kohm, Surface Mount, 13 TurnsProduct InformationTrack Resistance: 10kohmTrimpot Type: Multi TurnNo. of Turns: 13TurnsElement Material: CermetAdjustment Type: Top AdjustPower Rating: 250mWPotentiometer Mounting: Surface MountResistance Tolerance: ± 10%Temperature Coefficient: ± 100ppm/°CProduct Range: TSM4Trimpot Shape / Size: 5 mm SquareResistor Case / Package: SMDProduct Length: 4.8mmProduct Width: 3.5mmProduct Height: 5.1mmOperating Temperature Min: -65°COperating Temperature Max: 155°CQualification: -MSL: MSL 1 - UnlimitedProduct OverviewThe TSM4 trimming potentiometer has been designed for surface mount applicationsand offers volumetric efficiency 5 mm x 5 mm x 3.7 mm with high performance andstability. The TSM4 design is suitable for both manual or automatic operation,and can withstand vapor phase and reflow soldering techniques.Professional and industrial grade11 turns Electrical travel13 turns Mechanical travelFully sealed - IP67Operating temperature range -55°C to +125°CResistance value range: 10 R to 1 MR
