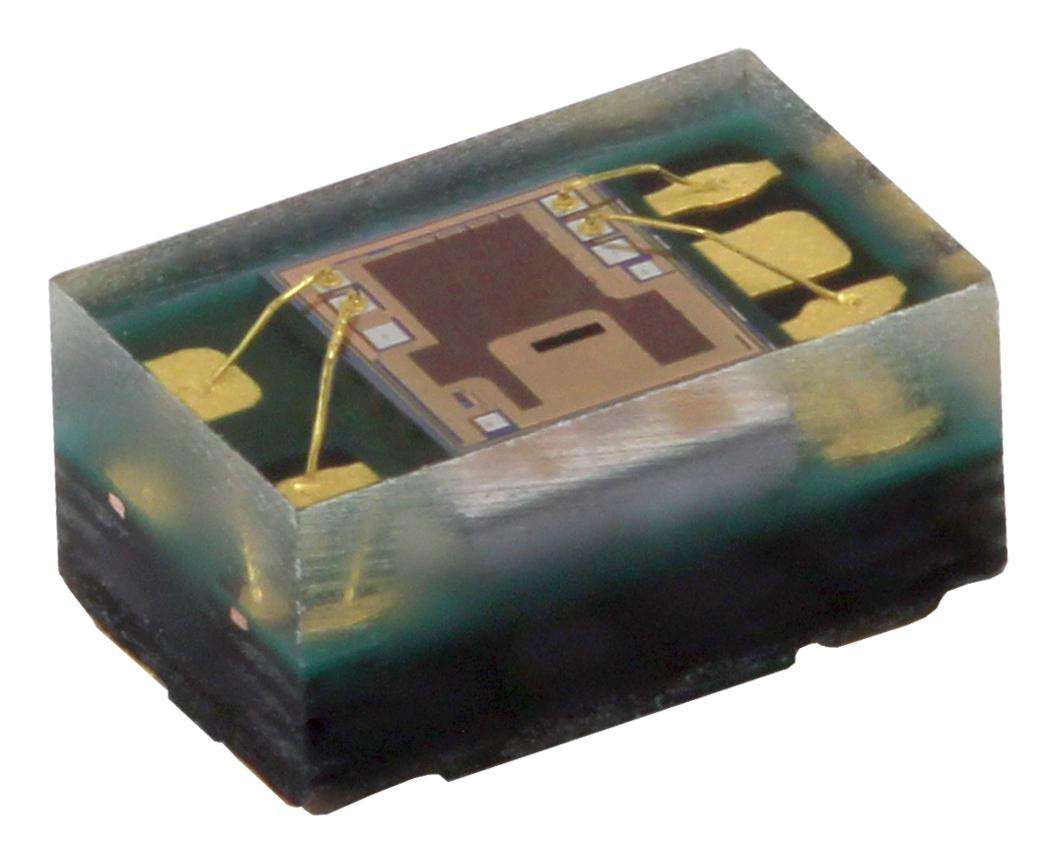

Vishay (VEML3328) Colour Sensor, RGBCIR, I2C Interface, 16 bit

Colour Sensor, RGBCIR, I2C Interface, 16 bit, 2.6 to 3.6 V, OPLGA4Product InformationSensing Range Max: -Supply Voltage Min: 2.6VSupply Voltage Max: 3.6VColour Processing Mode: -Colour Resolution: 16bitProduct Range: -DESCRIPTIONVEML3328 sensor senses red, green, blue, clear, and IR light by incorporatingphotodiodes, amplifiers, and analog / digital circuits into a single CMOS chip.With this sensor, the brightness and color temperature of a display backlightcan be adjusted based on the ambient light source, and it can differentiateindoor from outdoor lighting environments.FEATURES Package type: surface-mount Dimensions (L x W x H in mm): 2.0 x 1.25 x 1.0 Integrated modules: color sensor and signal conditioning IC Supports low transmittance (dark) lens design Provides 16-bit resolution for each channel (R, G, B, C, and IR) Package: OPLGA4 Temperature compensation: -40 °C to +85 °C Low power consumption I2C (SMBus compatible) interface Floor life: 168 h, MSL 3, according to J-STD-020 Output type: I2C bus Operation voltage: 2.6 V to 3.6 VAPPLICATIONS Automatic white balancing and color cast correction in digital cameras Automatic LCD backlight adjustment Maintaining consistent true color and ideal brightness levels on handhelddisplays as users move between indoor and outdoor environments On / off light switching in industrial and consumer applications Active monitoring of LED color output for IoT and smart lighting
