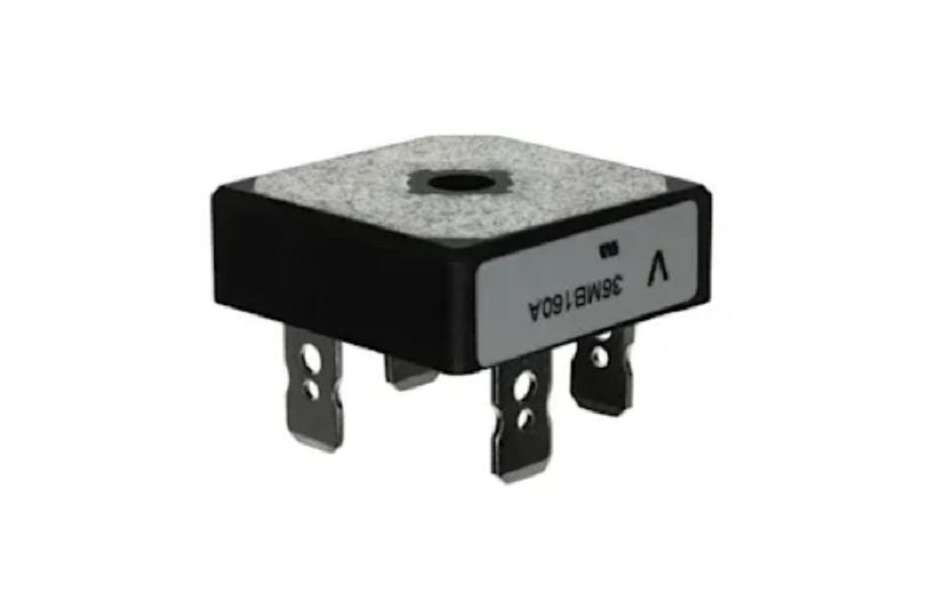

Vishay (VS-36MB160A) Bridge Rectifier, Single Phase, 1.6 kV, 35 A, 1.3 V

Bridge Rectifier, Single Phase, 1.6 kV, 35 A, Module, 4 Pins, 1.3 VProduct OverviewThe VS-36MB160A is a single-phase extremely compact encapsulated BridgeRectifier offering efficient and reliable operation. The VS-MB high voltageseries bridge rectifier features centre hole fixing and excellent power/volumeratio. They are intended for use in general purpose.1700V Maximum non-repetitive peak reverse voltage2A Maximum repetitive peak reverse current0.74V Low level value of threshold voltage0.79V High level value of threshold voltage2700V RMS isolation voltage base plateApplicationsMains RectificationProduct InformationNo. of Phases: Single PhaseRepetitive Peak Reverse Voltage: 1.6kVAverage Forward Current: 35ABridge Rectifier Case Style: ModuleForward Voltage Max: 1.3VNo. of Pins: 4PinsBridge Rectifier Mounting: Surface MountForward Surge Current: 330AOperating Temperature Max: 150°CProduct Range: VS-36
