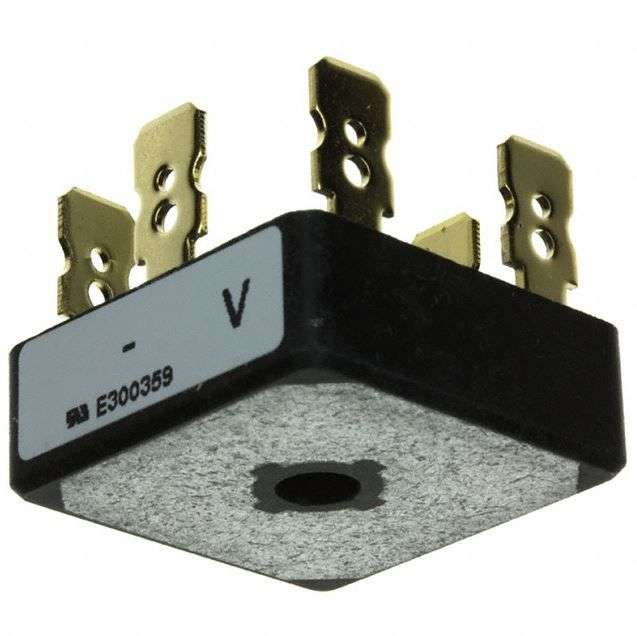

Vishay (VS-36MT120) Bridge Rectifier, Three Phase, 1.2 kV, 35 A, Module

Bridge Rectifier, Three Phase, 1.2 kV, 35 A, Module, 5 Pins, 1.19 VProduct OverviewThe VS-36MT120 is a three-phase extremely compact encapsulated Bridge Rectifieroffering efficient and reliable operation. The bridge rectifier features centrehole fixing and excellent power/volume ratio. They are intended for use ingeneral purpose.1300V Maximum non-repetitive peak reverse voltage2A Maximum repetitive peak reverse current0.86V Low level of threshold voltage100µA Maximum DC reverse current2700V RMS isolation voltageApplicationsMains RectificationProduct InformationNo. of Phases: Three PhaseRepetitive Peak Reverse Voltage: 1.2kVAverage Forward Current: 35ABridge Rectifier Case Style: ModuleForward Voltage Max: 1.19VNo. of Pins: 5PinsBridge Rectifier Mounting: Panel MountForward Surge Current: 475AOperating Temperature Max: 150°CProduct Range: VS-36
