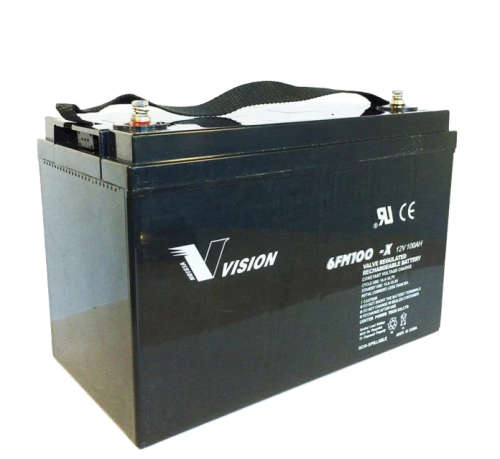

Vision 6FM100Z-X 100Ah 12V AGM Battery

R100 courier to the door

General Features

• Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
• Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
• UL-recognized component.
• Can be mounted in any orientation.
• Computer designed lead, calcium tin alloy
• grid for high power density.
• Long service life, float or cyclic applications.
• Maintenance-free operation.
• Low self-discharge.

Performance Characteristics
General

• Nominal Voltage: 12V.
• Number of cells: 6.
• Design life: 12 Years.
• Max. Discharge Current @ 25oC: 900A(5s).
• Short Circuit Current: 2100A.
• Internal Resistance (Fully Charged battery @ 25°C): 5.7mOhms.
• Self-Discharge: 3% of capacity declined per month @ 20°C(average).

Nominal Capacity @ 25°C

• 10-hour rate (10.0A, 10.8V) 100Ah.
• 5-hour rate (17.4A, 10.5V) 87.0Ah.
• 3-hour rate (26.6A, 10.5V) 79.8Ah.
• 1-hour rate (65.2A, 9.6V) 65.2Ah.

Operating Temperature Range

• Discharge: -20~60°C.
• Charge: -10~60°C
• Storage: -20~60°C.

Charge Methods (Constant Voltage Charge @ 25°C)
Cycle use: 2.40-2.45VPC

• Maximum charging current: 30A.
• Temperature compensation -30mV/°C.

Standby use 2.20-2.27VPC

• Temperature compensation -20mV/°C.

Dimensions and Weight

• Length(mm): 330.
• Width(mm): 171.
• Height(mm): 215.
• Total Height(mm): 220.
• Approx. Weight (Kg): 30.

Please Note: The above characteristics data are average values obtained within three charge/discharge cycles not the minimum values.
