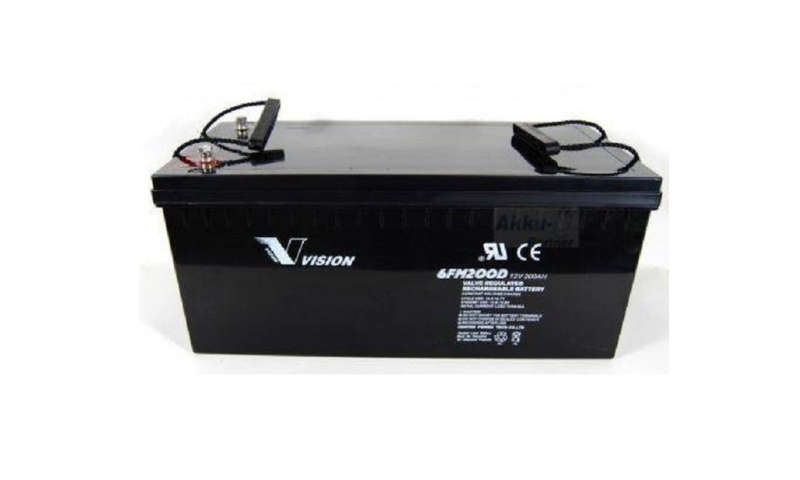

Vision Deep Cycle AGM Battery 6FM200Z-X (For Use With Inverters - 200Ah 12V)

The rechargeable batteries are lead-lead dioxide systems. The dilute sulfuric acid electrolyte is absorbed by separators and plates and thus immobilized. Should the battery be accidentally overcharged producing hydrogen and oxygen, special one-way valves allow the gases to escape thus avoiding excessive pressure build-up.

Otherwise, the battery is completely sealed and is, therefore, maintenance-free, leak proof and usable in any position.

Features
Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to 99% and freedom from electrolyte maintenance or water adding.
Not restricted for air transport-complies with IATA/ICAO Special Provision A67.
UL-recognized component.
Can be mounted in any orientation.
Computer designed lead, calcium tin alloy grid for high power density.
Long service life, float or cyclic applications.
Maintenance-free operation.
Low self discharge.

Battery Construction
Component: Raw material
Positive plate: Lead dioxide
Negative plate: Lead
Container: ABS
Cover: ABS
Safety valve; Rubber
Terminal; Copper
Separator: Fiberglass
Electrolyte: Sulfuric acid

Performance Characteristics
Nominal Voltage; 12V
Number of cell: 6

Internal Resistance
Fully Charged battery 77oF(25oC): 4mOhms
Self-Discharge: 3% of capacity declined per month at 20oC(average)
Operating Temperature Range
Discharge: -20~60oC
Charge: -10~60oC
Storage: -20~60oC
Max. Discharge Current 77oF(25oC): 1000A(5s)
Short Circuit Current: 3300A
Charge Methods: Constant Voltage Charge 77oF(25oC)
Cycle use: 2.40-2.45VPC
Maximum charging current: 60A
Temperature compensation: -30mV/oC
Standby use: 2.20-2.27VPC
Temperature compensation: -20mV/oC

What's in the box
1 x 200Ah AGM Battery
