Vito 10.2KVA Hybrid Inverter (Pure Sine Wave) + 5.12kWh 100Ah Lithium Battery | Solar & Backup Po...

Vito 10.2KVA Hybrid Inverter (Pure Sine Wave) + 5.12kWh 100Ah Lithium Battery | Solar & Backup Power Solution

Description:

The Vito 10.2KVA Hybrid Inverter with MPPT technology, paired with a 5.12kWh 100Ah lithium battery, provides a reliable and energy-efficient power solution for homes and businesses. Designed for solar energy integration and backup power, this system delivers pure sine wave output, advanced safety protections, and optimized battery charging. Whether for off-grid living or reducing electricity costs, this hybrid inverter system ensures stable and uninterrupted power supply.

Key Features:

• 10.2KVA Hybrid Inverter Provides 10200W pure sine wave output, ideal for sensitive electronics.
• Smart MPPT Technology Maximizes solar energy conversion with an MPPT range of 90V - 450V DC.
• Configurable AC/Solar Charging Priority Customize energy consumption settings via LCD controls.
• Advanced Battery Management Ensures optimized performance with configurable charging settings.
• Comprehensive Safety Protections Includes overload, short circuit, and over-temperature protection.
• Cold Start & Auto Restart Functionality Ensures uninterrupted operation during power fluctuations.
• Wi-Fi/GPRS Monitoring (Optional) Enables remote tracking of system performance.
• Lithium Battery Compatibility Supports modern lithium-ion battery technology for efficient energy storage.

Technical Specifications:

Hybrid Inverter Specifications:

• Power Output: 10.2KVA / 10,200W
• Waveform: Pure Sine Wave
• MPPT Voltage Range: 90V - 450V DC
• Max PV Open Circuit Voltage: 500V DC
• Nominal AC Output Voltage: 220/230/240V AC
• Operating Frequency: 50/60Hz
• Power Factor: >0.99
• Efficiency: Up to 97% DC/AC conversion
• Protection Features: Overload, short circuit, over-temperature, reverse polarity
• User Interface: LCD display with configurable settings
• Weight: 16.9kg
• Dimensions: 618 x 463 x 205mm

Lithium Battery Specifications:

• Battery Type: Lithium Iron Phosphate (LiFePO4)
• Capacity: 5.12kWh (51.2V, 100Ah)
• Maximum Continuous Discharge Power: 5,500W
• Peak Discharge Power: 7,500W
• Bulk Charge Voltage: 56.4-56.6V
• Float Charge Voltage: 54V
• Cut-Off Voltage: 47V
• Cycle Life: Up to 20 times longer than traditional lead-acid batteries
• Safety Features: Short circuit protection, reverse connection protection, overcharge protection
• Operating Temperature Range: -20°C to 60°C
• Weight: 49kg
• Dimensions: 480 x 170 x 500mm
• IP Rating: IP54 (dust and water resistance)
• Communication Protocols: RS485, RS232, CAN
• Design Life: 15 years

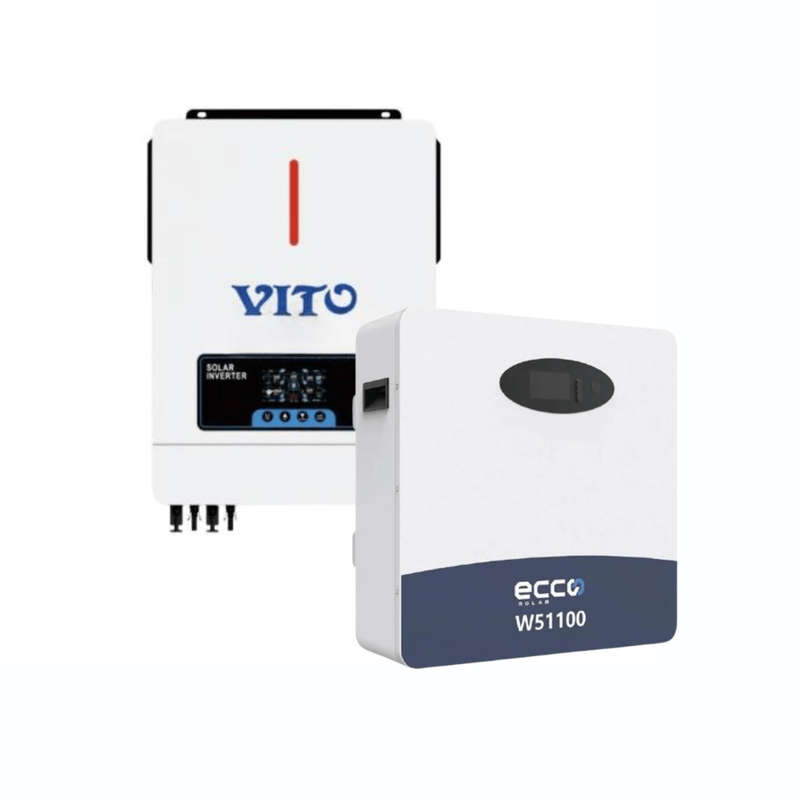

What's Included in the Combo:

• 1x Vito 10.2KVA Hybrid Inverter (MPPT SH10.2K48)
• 1x Ecco 5.12kWh 100Ah Lithium Battery (Wall-Mounted)
• Battery Cables & Mounting Accessories
• User Manual

Installation & Warranty Information:

• Installation must be performed by a qualified electrician registered with the Department of Labour.
• A valid Certificate of Compliance (COC) is required for warranty claims.
• Inverter Warranty: 2-Year Repair Warranty
• Battery Warranty: 5-Year Manufacturer's Warranty
