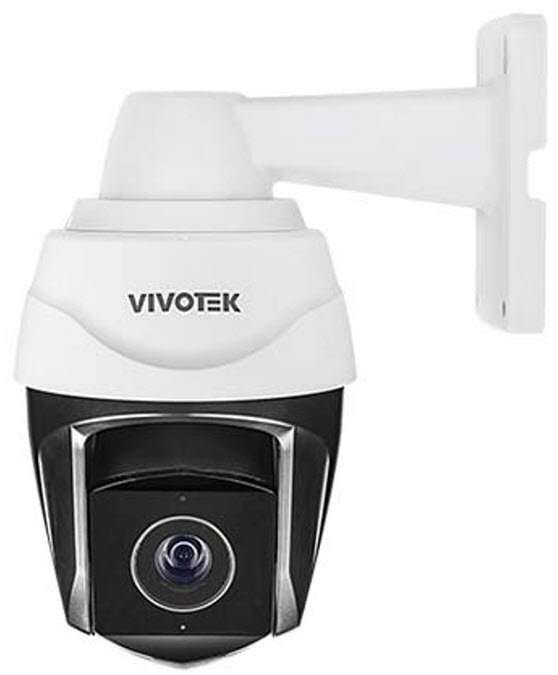

Vivotek SD9368-EHL Speed Dome, 2MP 60fps, H.265, 40x Optical Zoom, 250M Smart IR, -40°C ~ 60°COverview:The new VIVOTEK SD9368-EHL is a professional IR speed dome camera (PTZ) with 2MP resolution at 60fps, excellent for video surveillance in wide coverage areas such as airports, city surveillance, and manufacturing facilities. SD9368-EHL is equipped with 250M IR illuminators and a 40x optical zoom to gain more details in any scene. The smart IR technology allows broad coverage FOV and highly uniform IR intensity while at the same time avoiding hotspots.Video surveillance in big areas has the potential for many incidents, SD9368-EHL's built-in Smart Tracking Advanced (our latest AI technology for Smart VCA) allows user to identify the risk and track the suspected person automatically in real time.SD9368-EHL's camera body is protected with IP66, IK10 and NEMA 4X certifications against rain, dust, and corrosion. It also supports a wide operating temperature from -40degC to 60degC (-40degF to 140degF) for operation in extreme weather conditions.Features:60 fps @ 1920x108040x Optical Zoom, Auto Focus360° Continuous Pan, -20° to 90° (auto flip) Tilt250M IR with Smart IRWeather-proof IP66-rated, Vandal-proof IK10 and NEMA 4X-rated Housing-40°C ~ 60°C Wide Temperature Range for Extreme Weather ConditionsEIS (Electronic Image Stabilization) for Image StabilityTrend Micro IoT SecuritySmart Tracking Advanced for Moving People with People-based Deep Learning TechnologySmart Tracking AdvancedSmart Tracking Advanced is designed to enhance the performance of tracking objects via PTZ cameras. Smart Tracking Advanced covers four types of Video Content Analyses intrusion detection, line crossing detection, loitering detection and face detection. Through user-defined rules, a person demonstrating suspicious behavior would trigger preset alarms. Automatic tracking of the person of interest, optimizing the recording video quality, and notifying security personnel all activate simultaneously.Camera LinkCamera Link is a feature that enables VIVOTEK PTZ cameras to automatically zoom onto pre-set locations and start tracking an object when the alarm is triggered by the "spotter" camera within the same surveillance system. Camera Link's connection between cameras does not require a VMS system. Therefore lag time is minimized and operation efficiency is enhanced. It is also great for situations where cameras are installed far away from the VMS workstation.Specifications:System InformationModel SD9368-EHLCPU Multimedia SoC (System-on-Chip)Flash 8 GBRAM 2 GBCamera FeaturesImage Sensor 1/2.8" Progressive CMOSMax. Resolution 1920x1080 (2MP)Lens Type 40x Optical Zoom, Auto FocusFocal Length f = 4.25 ~ 170 mmAperture F1.6 ~ F4.95Iris Type DC-irisField of View 65.70° ~ 1.88° (Horizontal)39.39° ~ 1.09° (Vertical)73.03° ~2.13° (Diagonal)Shutter Time 1 sec. to 1/100, 000 sec.WDR Technology WDR ProDay/Night YesRemovable IR-cut Filter YesIR Illuminators Built-in IR Illuminators up to 250 meters with Smart IR, IR LED*8Minimum Illumination 0.04 lux @ F1.6 (Color)0.005 lux @ F1.6 (B/W)0 lux with IR illumination onPan Speed Preset speed: 450°/sPan Range 360° endlessTilt Speed Preset speed: 450°/sTilt Range -20° to 90° (auto flip)Preset Locations 256 preset locationsPan/Tilt/Zoom Functionalities 32x digital zoom (4x on IE plug-in, 8x built in)Auto Pan modeAuto Patrol modeMechanical Auto flipStorage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)Built-in Installation Aids Remote focus, remote zoomVideoVideo Compression H.265, H.264, MJPEGMaximum Frame Rate 60 fps @ 1920x1080Maximum Streams 3 video streams (Up to 8 configurable profiles)S/N Ratio 60 dBDynamic Range 120 dBVideo Streaming Adjustable resolution, quality and constant bitrate control, Smart Stream IIIImage Settings General settings: video title and time stamp overlay, video orientation (flip, mirror), day/night settings; Illuminators: illuminators, anti-overexposure; Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, HLM, 3DNR, EIS, scene mode (auto, deblur); Exposure: BLC, HLC, exposure control (exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR; Focus; Privacy mask; Scheduled profile settings; Pixel calculatorAudioAudio Capability Two-way audio (Full duplex)Audio Compression G.711, G.726Audio Interface External line inputExternal line outputNetworkUsers Live viewing for up to 10 clientsSecurity Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account managementProtocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTCIP, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnPInterface 10 Base-T/100 Base-TX Ethernet (RJ-45)*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.ONVIF Profile G, S, T supported, specification available at www.onvif.orgSolution IntegrationSmart Tracking Advanced Smart tracking Advanced (Default, license embedded; including intrusion detection, loitering detection, line crossing detection, face detection)VADP Package Smart Tracking Advanced, Trend Micro IoT Security (3-year free trial), StratocastAlarm and EventEvent Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, smart tracking advanced trigger, system boot, preset reachedEvent Action Event notification via audio clip, camera link, digital output, email, HTTP, FTP, NAS server, SD cardFile upload via email, HTTP, FTP, NAS server, SD card; trigger track, trigger patrol, move to presetGeneralConnectors RJ-45 cable connector for 10/100 Mbps PoE network connectionAudio line inputAudio line outputDC 48V power inputAC 24V power inputDigital input*2Digital output*1LED Indicator System power and status indicatorPower Input AC 24V, DC 48V, IEEE 802.3 bt Class 6 PoE(Simultaneous Power Redundancy Supported)Power Consumption PoE:Max. 51W/26W (IR on/off)DC 48V:Max. 51W/26W (IR on/off)AC 24V:Max. 51W/26W (IR on/off)Dimensions 256 x 336 mmWeight 7.1 kgCertifications EMC: CE (EN 55032 Class A, EN55035, EN50121-4), UKCA (BS EN 55032: 2015 +A11: 2020, BS EN 55035: 2017), FCC (FCC Part 15 Subpart B Class A), IC (ICES-003:2020 Issue7, Class A), RCM (AS/NZS CISPR 32 Class A), VCCI (VCCI-CISPR 32 Class A); Safety: UKCA (BS EN 62368-1:2014+A11:2017), UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471); Environment: IK10 (IEC 62262), IP66 (IEC 60529), NEMA (NEMA 250 Type 4X); IA: BIS (IS 13252), BSMIOperating Temperature Starting Temperature:-40°C ~ 55°C (-40°F ~ 131°F)Working Temperature:-40°C ~ 60°C (-40°F ~ 140°F) (IR on)Humidity 98% RH (non-condensing)Warranty 36 monthsSystem RequirementsOperating System Microsoft Windows 10/8/7Mac 10.12 (Chrome only)Web Browser Chrome 58.0 or aboveInternet Explorer 10/11
