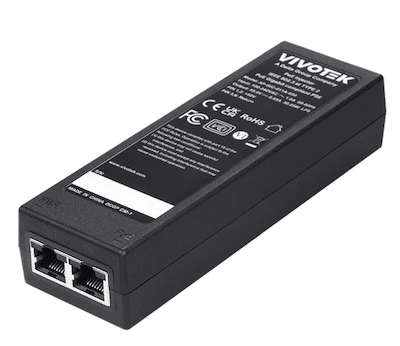

Vivotek 30W POE Ethernet Injector

Introducing the Vivotek 30W POE Ethernet Injector!

Enhance the power and efficiency of your network with the Vivotek 30W POE Ethernet Injector. This compact yet powerful device delivers incredible performance at an unbeatable price, making it the perfect solution for both home and office environments.

Features and Benefits:

• Amazing 30W POE output power for fast and reliable performance
• Instant Gigabit Ethernet connectivity for seamless data transfer
• Exclusive IEEE PoE standards supported for maximum compatibility
• Over current and circuit shorting protection for added safety

Don't miss out on the opportunity to revolutionize your network with the Vivotek 30W POE Ethernet Injector. With a limited availability and high demand, now is the perfect time to upgrade your setup and experience the difference.

Take action now and add the Vivotek 30W POE Ethernet Injector to your cart. Transform your network today!

Technical Specifications

• Model: AP-GIC-011A-030

Ethernet

• Gigabit Ethernet 10/100/1000Mbps (Data in): 1

Standards

• IEEE 802.3 10-BASE-T (Ethernet): Supported
• IEEE 802.3u 100-BASE-TX (Fast Ethernet): Supported
• IEEE 802.3ab 1000-BASE-T (Gigabit Ethernet): Supported
• IEEE 802.3 af/at/bt: Supported

PoE Function

• Number of PoE Port: 1
• Max. PoE Output Power/Per Port: 30W
• IEEE PoE Standard: 802.3af/at
• Over Current Protection: Supported
• Circuit Shorting Protection: Supported
• Total PoE Power Budget: 30W
• Power Pin Assignment: 1,2 (+)/3,6 (-)
• PoE PD Auto Detection: Supported

General

• Input Voltage Range: 100~240VAC / 50~60Hz
• Output Voltage/Current: 55VDC/0.55A
• Electrostatic Discharge (ESD) Per IEC-61000-4-2: Contact discharge: ±6KV, Air discharge: ±8KV, Criterion B
• MTBF: 200k hours of continuous operation at 25°C
• Dimensions: 140 (L) x 45.5 (W) x 30 (H) mm
• Weight: 0.14 kg
• Operating Temperature: -10°C ~ 45°C (14°F ~ 133°F)
• Storage Temperature: -25°C ~ 65°C (-13°F ~ 149°F)
• Humidity: Operating: 5~90%, Storage: 5~90% (Non-condensing)
• Safety Certifications: CE, CB, FCC, VCCI
• Warranty: 24 Months

Accessories

• Included Accessories: Power cord, QIG
