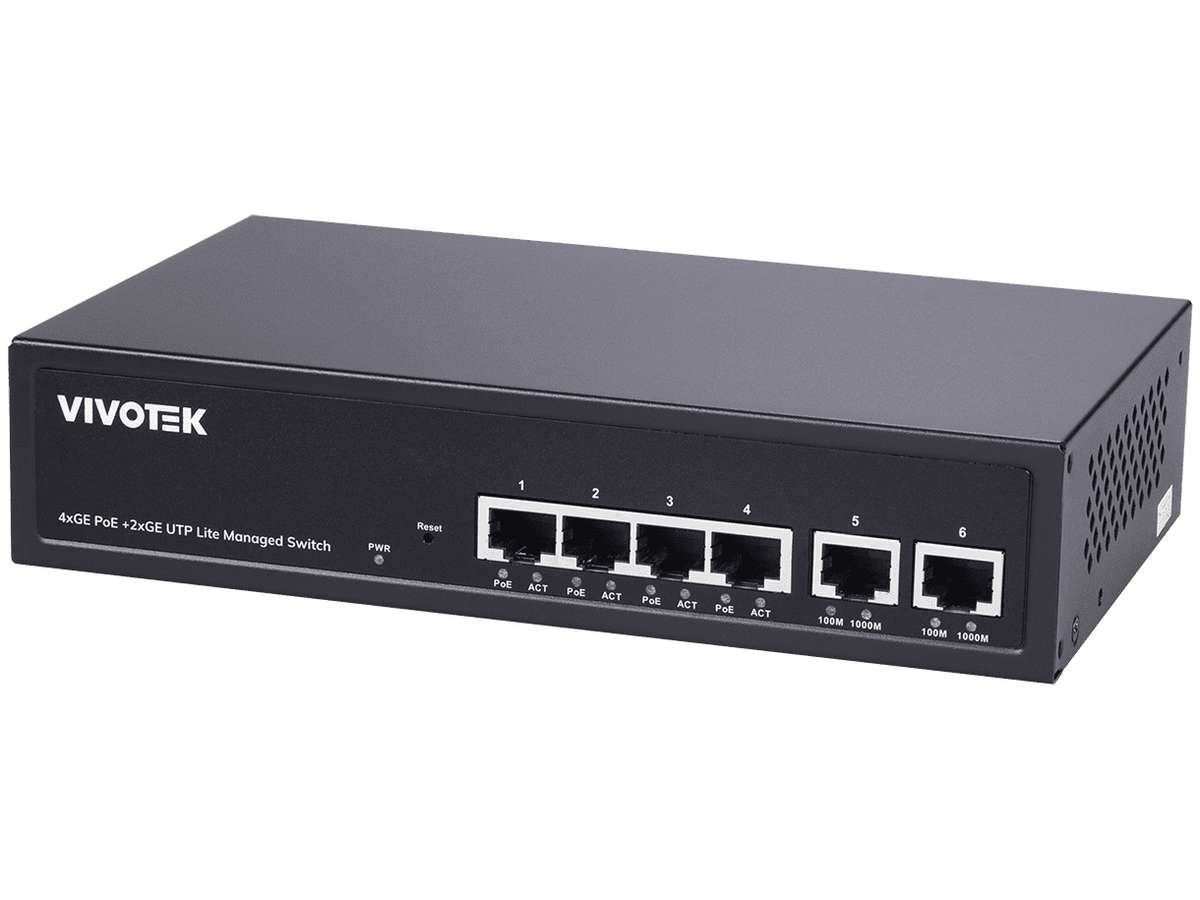

Vivotek 4x GE PoE and 2x GE UTP Lite Managed Switch

Vivotek 4x GE PoE & 2x GE UTP Lite Managed Switch, 4x Gbit PoE Ports, 2x Gigabit RJ45 Port, 12 Gbps switching Bandwidth, 30W PoE Output Power per Port, 60W total PoE Power budget, AW-GEL-065A-060

Specifications:

Model AW-GEL-065A-060
Product Description 4xGE PoE + 2xGE UTP Lite Managed Switch
Port Configuration
10M/100M/1G PoE Port 4
10M/100M/1G RJ45 Port 2
IEEE 802.3x V
IEEE 802.3u V
IEEE 802.3ab V
Total Ports 6
HW Performance
Switching Bandwidth 12 Gbps
Buffer Memory1 1 Mb
MAC Address 8K
Jumbo Frames 9216 Bytes
Spanning Tree Protocol
IEEE 802.1d (STP) V
IEEE 802.1w (RSTP) V
Link Aggregation Control Protocol V
VLAN
802.1Q Tag-based VLAN 4096 VLAN IDs
Port-based VLAN V
QoS
CoS port-based V
CoS 802.1p-based V
CoS DSCP-based V
Loop Protection V
Flow Control V
Strom Control V
Port-Based Mirroring V
Port Isolation V
Bandwidth Control V
Satic MAC V
PoE Management
PoE On/Off Control V
PoE Auto Checking V
Non-Stop PoE V
Extend PoE Mode (250M) V
PoE Function
IEEE 802.3 PoE Standard Compliant 802.3 af/at
Number of PoE Output Port 4
PoE Output Power 30W
Totoal PoE Power Budget 60W
PoE Pin Assignment 1/2(+), 3/6(-)
PoE Surge Protection 4KV Per PoE port
Environmental Specifications
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -20°C ~ 70°C (-4°F ~ 158°F)
Operating Humidity 10 ~ 90% RH
Mechanical Specifications
Dimensions 200 (W) x 118 (D) x 44 (H) mm
Weight 0.66 kg
Power Source
AC Input 100V ~ 240V
Frequency 50 ~ 60 Hz
Power Consumption 65W
Certifications
Certifications CE, FCC, LVD, VCCI
Accessories
Included Accessories Power Cord, QIG, Rack Mount Kit
