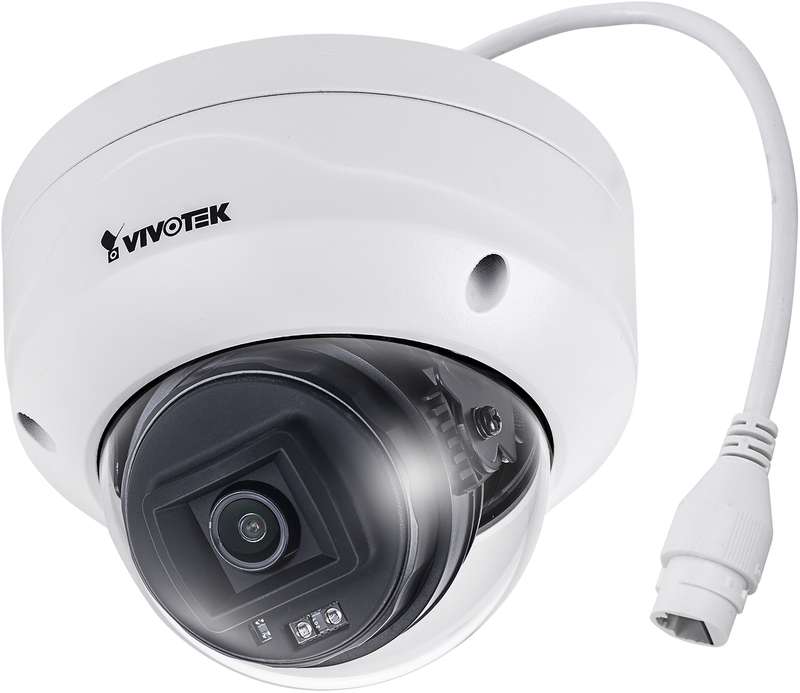

Vivotek 5MP Dome IP camera with 2.8mm Lens, 2560x1920 (5MP) Maximum Resolution, WDR Pro, Built-In IR illuminators effective up to 30 meters with Smart IR, H.265 / H.264 / MJPEG Video Compression, 20 fps @ 2560x1920, 3 Video streams, 120 dB Dynamic range, Live viewing for up to 10 clients, 10 BASE-T/100 Base-TX Ethernet (RJ-45), Five-window Video motion detection
Overview:
FD9380-H
5MP, H.265, 2.8/3.6mm, 30M IR, SNV, WDR Pro
H.265, H.264, MJPEG
SNV
WDR Pro
Smart IR
Trend Micro IoT Security
NDAA
Features:
H.265 Compression Technology
20 fps @ 2560x1920 (WDR Pro on)
SNV (Supreme Night Visibility) for Low Light Conditions
WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
Smart Stream III to Optimize Bandwidth Efficiency
Built-in IR Illuminators, Effective up to 30 Meters
Trend Micro IoT Security
Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
VIVOTEKs FD9380-H is a H.265 outdoor dome network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the FD9380-H is capable of capturing high-quality imagery in both high contrast and low light environments.
The FD9380-H deploys a 2.8mm/3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the FD9380-H is encased in IP66 and IK10 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the FD9380-H is able to reduce bandwidth usage by up to 90%* while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.
* Depending on scenes
Specifications:
System Information
Model FD9380-H (2.8mm)
FD9380-H (3.6mm)
CPU Multimedia SoC (System-on-Chip)
Flash 128 MB
RAM 512 MB
Camera Features
Image Sensor 1/2.7" Progressive CMOS
Max. Resolution 2560x1920 (5MP)
Lens Type Fixed-focal
Focal Length FD9380-H (2.8mm): f = 2.8 mm
FD9380-H (3.6mm): f = 3.6 mm
Aperture F2.0
Iris Type Fixed iris
Field of View FD9380-H (2.8mm):
103° (Horizontal)
76° (Vertical)
134° (Diagonal)
FD9380-H (3.6mm):
76° (Horizontal)
59° (Vertical)
100° (Diagonal)
Shutter Time 1/5 sec. to 1 / 32,000 sec.
WDR Technology WDR Pro
Day/Night Yes
Removable IR-cut Filter Yes
IR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR, IR LED*2
Minimum Illumination 0.03 lux @ F2.0 (Color)
0 lux with IR illumination on
Pan Range 350°
Tilt Range 75°
Rotation Range 350°
Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)
Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)
Video
Video Compression H.265, H.264, MJPEG
Maximum Frame Rate 20 fps @ 2560x1920
Maximum Streams 3 video streams (Up to 8 configurable profiles)
S/N Ratio FD9380-H (2.8mm): 65 dB
FD9380-H (3.6mm): 67 dB
Dynamic Range 120 dB
Video Streaming Adjustable resolution, quality and bit rate control, Smart Stream III
Image Settings General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings, Illuminators: illuminators, anti-overexposure, Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR, Privacy mask, Scheduled profile settings
Network
Users Live viewing for up to 10 clients
Security Access list, digest authentication, HTTPS, IEEE 802.1x, password protection, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account management
Protocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnP
Interface 10 Base-T/100 Base-TX Ethernet (RJ-45)
*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.
ONVIF Profile G, S, T supported
Solution Integration
Video Motion Detection Five-window video motion detection
VADP Package Stratocast, Trend Micro IoT Security (1-year free trial), VIVOCloud
Alarm and Event
Event Trigger Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot
Event Action Event notification via email, HTTP, FTP, NAS server, SD card, push notification
File upload via email, HTTP, FTP, NAS server, SD card
General
Connectors RJ-45 cable connector for 10/100Mbps Network/PoE connection
LED Indicator System power and status indicator
Power Input IEEE 802.3af PoE Class 2
Power Consumption Max. 6.49 W/3.69 W (IR on/off)
Dimensions Ø 117.2 x 89.6 mm
Weight 540 g
Certifications EMC: CE (EN 55032 Class B, EN 55024), FCC (FCC Part 15 Subpart B Class B), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), Environment: IK10 (IEC 62262), IP66 (IEC 60529), IA: BIS (IS 13252)
Operating Temperature Starting Temperature: -10°C ~ 60°C (14°F ~ 140°F)
Working Temperature: -30°C ~ 60°C (-22°F ~ 140°F)
Humidity 90%
System Requirements
Operating System Microsoft Windows 10/8/7
Mac 10.12 (Chrome only)
Web Browser Chrome 58.0 or above
Internet Explorer 10/11
Other Players VLC: 1.1.11 or above
Included Accessories
Packing Contents Quick installation guide, alignment sticker, screw pack, cable gland
