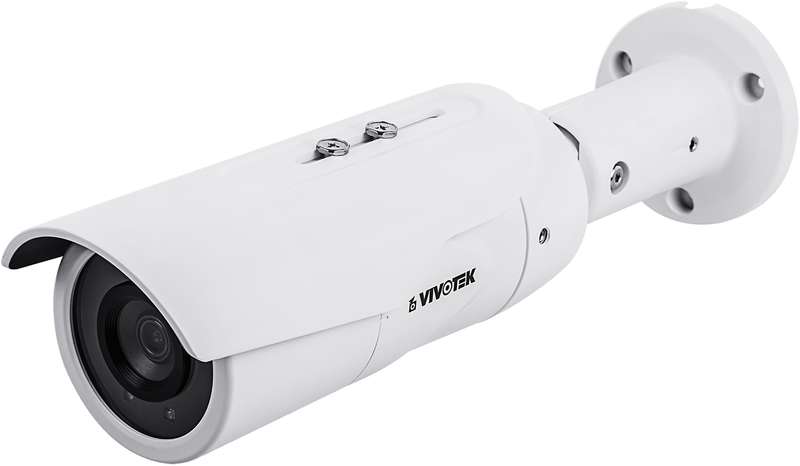

Vivotek 5MP H.265 2MP 60fps bullet Network camera with 3.6mm Lens, 1/2.7" progressive CMOS image sensor, 2560x1920 (5MP) Maximum Resolution, Fixed iris, WDR Pro, Up to 30 meters IR range, H.265 / H.264 / MJPEG Video Compression, 30 FPS @ 2560x1920 Maximum Frame rate, 60 FPS @ 1920x1080 Maximum Frame rate, 3 Video streams, 120 dB Dynamic range, 1x 10 BASE-T/100 Base-TX Ethernet (RJ-45)Overview:IB9389-EH-v2 - 5MP, H.265, 2MP 60fps, 3.6mm, 30M IR, WDR Pro, SNVWDR Pro30 fps @ 2560x1920, 60 fps @ 1920x1080WDR Pro (120 dB) for Improved Visibility in High Contrast ScenesBuilt-in IR Illuminators, Effective up to 30 MetersSmart IR Technology to Avoid OverexposureTrend Micro IoT SecurityVandal-proof IK10-rated, Weather-proof IP66-rated Housing3.6mm Fixed LensFeatures:IVOTEKs IB9389 series is a H.265 bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 30 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9389 series is capable of capturing high-quality imagery in both high-contrast and low-light environments.The IB9389 series offers various lens options for different user scenarios: fixed focus, manual focus, and remote focus lenses. The camera is equipped with IR illuminators with a 30-meter effective range for better night visibility. To provide reliable coverage in harsh outdoor environments, the IB9389 series is encased in IP66 and IK10 housing.The IB9389 series comes with VIVOTEK's Smart Stream III technology and H.265 codec suppor t. It is capable of reducing bandwidth consumption to 90% while maintaining supreme image quality. Additionally, VIVOTEKs VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in the diversified surveillance market.Specifications:System InformationModel IB9389-EH-v2CPU Multimedia SoC (System-on-Chip)Flash 8 GBRAM 1 GBCamera FeaturesImage Sensor 1/2.7" Progressive CMOSMax. Resolution 2560x1920 (5MP)Lens Type Fixed-focalFocal Length f = 3.6 mmAperture F2.0Iris Type Fixed irisField of View 76° (Horizontal)56° (Vertical)100° (Diagonal)Shutter Time 1/5 sec. to 1 / / / 32,000 sec.WDR Technology WDR ProDay/Night YesRemovable IR-cut Filter YesIR Illuminators Built-in IR illuminators, effective up to 30 meters with Smart IR LED*4Minimum Illumination 0.06 lux @ F2.0 (Color)0.01 lux @ F2.0 (B/W)0 lux with IR illumination onTilt Range 90°Rotation Range 180°Pan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)VideoVideo Compression H.265, H.264, MJPEGMaximum Frame Rate 30 fps @ 2560x192060 fps @ 1920x1080Maximum Streams 3 video streams (Up to 8 configurable profiles)S/N Ratio 55 dBDynamic Range 120 dBVideo Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream IIIImage Settings General settings: video title and time stamp overlay, video orientation (flip, mirror, rotation), day/night settings, Illuminators: illuminators, anti-overexposure, Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, EIS, scene mode (auto, deblur), Exposure: BLC, HLC, exposure control(exposure level, iris adjustment, exposure time, gain control, iris mode), AE speed adjustment, WDR, Privacy mask, Scheduled profile settingsNetworkUsers Live viewing for up to 10 clientsSecurity Access list, digest authentication, HTTPS, IEEE 802.1x, Password protection, secure boot, signed firmware, Trend Micro IoT Security (brute force attack event, cyberattack event, quarantine event), user access log, user account managementProtocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnPInterface 10 Base-T/100 Base-TX Ethernet (RJ-45)*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.ONVIF Profile G, S, T supportedSolution IntegrationSmart Motion Detection Five-window video motion detection, human detection, time filter(Without bounding box)Smart VCA Intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, face detection, crowd detection, running detectionVADP Package Deep Learning VCA (Smart Motion Detection, Smart VCA*), Trend Micro IoT Security (3-year free trial)*License required. Free trial license is not supported.Alarm and EventEvent Trigger Camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, shock detection, system bootEvent Action Event notification via camera link, email, HTTP, FTP/SFTP, NAS server, SD cardFile upload via email, HTTP, FTP/SFTP, NAS server, SD cardGeneralConnectors RJ-45 cable connector for 10/100Mpbs Network/PoE connectionLED Indicator System power and status indicatorPower Input IEEE 802.3af PoE Class 0Power Consumption Max. 11 W (IR on)Max. 8 W (IR off)Max. 11W (IR on, Heater on)Max. 8.6 W (IR on, Heater off)Dimensions Ø 86 x 300 mmWeight 1 kgCertifications EMC: CE (EN55032, EN55024 Class A, EN50121-4 ), FCC (FCC Part 15 Subpart B Class A), RCM (AS/NZS CISPR32 Class A), VCCI (VCCI-CISPR 32 Class A)Safety: UL (UL62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471)Environment: IK10 (IEC 62262), IP66 (IEC 60529)IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)Operating Temperature Starting Temperature:-30°C ~ 50°C (-13°F ~ 122°F)Working Temperature(IR on):-40°C ~ 60°C (-40°F ~ 140°F) (IR off)-40°C ~ 50°C (-40°F ~ 122°F) (IR on)Humidity 98% RH (non-condensing)System RequirementsOperating System Microsoft Windows 10/8/7Mac 10.12 (Chrome only)Web Browser Chrome 58.0 or aboveInternet Explorer 10/11Other Players VLC: 1.1.11 or aboveIncluded AccessoriesPacking Contents Quick installation guide, alignment sticker, screw pack
