Vivotek 8-port GbE PoE Lite Managed Switch with 1x GbE and 1x SFP ports

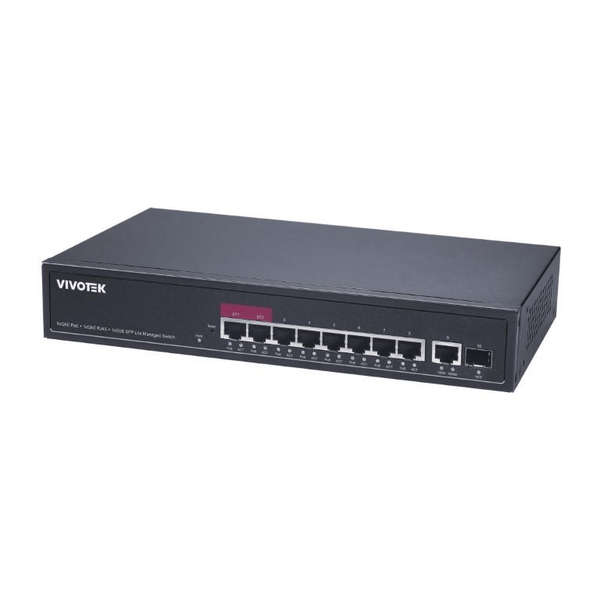

Vivotek 8-port GbE PoE Lite Managed Switch with 1x GbE and 1x SFP ports AW-GEL-105A-110

The AW-GEL-105A-110 is a 8 port 10/100/1000BaseT lite managed PoE switch capable of feeding 15.4/30W (54V max. per port) power to Power over Ethernet (PoE) devices. It comes with 1x GbE UTP ports + 1x GbE SFP ports. The switch is capable of a total of 110W power budget.

Technical Specification

Product Model: AW-GEL-105A-110
Product Description: 2x GE bt 90W PoE + 6x GE 30W PoE + 1x GE UTP + 1x GE SFP Lite Managed Switch
Port Configuration
10M/100M/1G PoE Port: 8
10M/100M/1G RJ45 Port: 1
100M/1G SFP Port: 1
IEEE 802.3x: Yes
IEEE 802.3u: Yes
IEEE 802.3ab: Yes
Total Ports: 10
Performance
Switching Bandwidth: 20 Gbps
Buffer Memory: 1.5 Mb
MAC Address: 4K
Jumbo Frames: 9216 Bytes
PoE Management
PoE On/Off Control: Yes
PoE Auto Checking: Yes
Non-Stop PoE: Yes
Extend PoE Mode (250M): Yes
PoE Function
IEEE 802.3 PoE Standard Compliant: 802.3 af/at/bt
Number of PoE Output Port: 8
PoE Output Power
Port 1-2 bt 90W
Port 3-8 at 30W
Totoal PoE Power Budget: 110W
PoE Pin Assignment
Port 1-2: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-)
Port 3-8: 2 pairs 1/2 (-), 3/6 (+)
PoE Surge Protection: 4KV Per PoE port
Included Accessories
Power Cord
QIG
