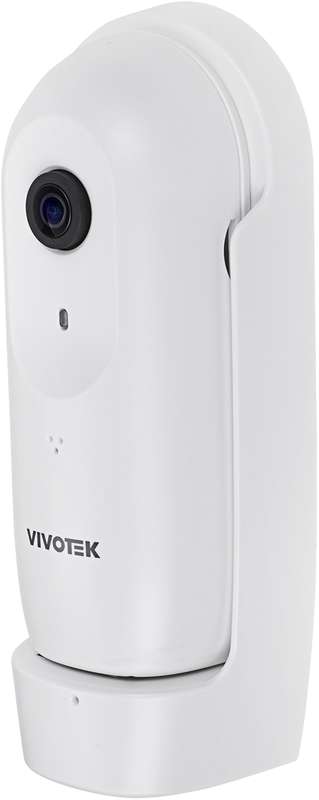

VIVOTEK CC9160-H Indoor 180 degree 2MP IP Network camera, 256MB Flash, 512MB RAM, 1/2.8" progressive CMOS image sensor, 1920x1080 Maximum Resolution, Fixed-focal Lens Type, WDR Pro, H.265, H.264, MJPEG Video Compression, 3 simultaneous streams, 120 dB Dynamic range, One-Way audio, Built-In Microphone, Five-window Video motion detection, RJ-45 cable connector for 10/100 Mbps Network/PoE connection, IEEE 802.3af PoE Class 2 power InputOverview:CC9160-H2MP, WDR Pro, 180° Panoramic View, Smart Stream IIITrend Micro IoT Security180° Panoramic ViewH.265, H.264, MJPEGWDR ProSNVFeatures:VIVOTEK's CC9160-H is a low-profile network camera especially designed for 180° panoramic indoor surveillance. The inconspicuous design makes it a great choice for retail, convenience stores, hotels, classrooms, and cafes. With 120 dB WDR Pro for high contrast lighting environments, the 180° panoramic views in 1080P provides amazing situational surveillance coverage. The unique mounting design facilitates easy installation onto any wall. A built-in microphone further increases the level of surveillance while recording sound within a 5 meter radius. Included digital input and digital output connections also add to the CC9160-H's security capabilities.2-Megapixel CMOS Sensor180° Horizontal Panoramic ViewCompact, Low-Profile Design30 fps @ 1920x1080Smart Stream III to Optimize Bandwidth EfficiencyWDR Pro 120 dBDigital Input, Digital Output, Built-in MicrophoneTrend Micro IoT SecuritySpecifications:System InformationModel CC9160-HCPU Multimedia SoC (System-on-Chip)Flash 256MBRAM 512MBCamera FeaturesImage Sensor 1/2.8" Progressive CMOSMax. Resolution 1920x1080Lens Type Fixed-focalFocal Length f = 1.66 mmAperture F1.95Iris Type Fixed-irisField of View 180° (Horizontal)100° (Vertical)180° (Diagonal)Shutter Time 1/5 sec. to 1 / / / 32,000 sec.WDR Technology WDR ProMinimum Illumination 0.03 lux @ F1.95 (Color)Tilt Range 15° with tilt bracketPan/Tilt/Zoom Functionalities ePTZ: 48x digital zoom (4x on IE plug-in, 12x built-in)Storage Seamless Recording to MicroSD/SDHC/SDXC card and recording to network-attached storage (NAS)VideoVideo Compression H.265, H.264, MJPEGMaximum Frame Rate H.265: 30 fps @ 1920x1080 (WDR Pro on/off)H.264: 30 fps @ 1920x1080 (WDR Pro on/off)MJPEG: 30 fps @ 1920x1080 (WDR Pro on/off)Maximum Streams 3 simultaneous streamsS/N Ratio 66.2 dBDynamic Range 120 dBVideo Streaming Adjustable resolution, quality and constant bit rate control, Smart Stream IIIImage Settings General settings: video title and time stamp overlay, video orientation (flip, mirror), Image settings: white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3DNR, HLM, DIS, scene mode (auto, deblur), Exposure: BLC, HLC, exposure control (exposure level, exposure time, gain control), AE speed adjustment, WDR, Privacy mask, Scheduled profile settingsAudioAudio Capability One-way AudioAudio Compression G.711, G.726Audio Interface Built-in microphoneEffective Range 5 metersNetworkUsers Live viewing for up to 10 clientsProtocols 802.1X, ARP, Bonjour, CIFS/SMB, DDNS, DHCP, DNS, FTP/SFTP, HTTP/HTTPS, ICMP, IGMPv3, IPv4, IPv6, NTP, PPPoE, QoS (CoS/DSCP), RTSP/RTP/RTCP, SMTP, SNMP, SSL, TCP/IP, TLS 1.2, UDP, UPnPInterface 10 Base-T/100 Base-TX Ethernet (RJ-45)*It is highly recommended to use standard CAT5e & CAT6 cables which are compliant with the 3P/ETL standard.ONVIF Profile G, S, T supportedSolution IntegrationVideo Motion Detection Five-window video motion detectionVADP Package Trend Micro IoT Security (1-year free trial), VIVOCloud, StratocastAlarm and EventEvent Trigger Audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), manual trigger, motion detection, periodical trigger, recording notification, SD card life expectancy, system boot, digital inputEvent Action Event notification via email, HTTP, FTP, NAS server, SD card, push notification, digital outputFile upload via email, HTTP, FTP, NAS server, SD cardGeneralConnectors RJ-45 cable connector for 10/100Mpbs Network/PoE connectionDIDOLED Indicator System power and status indicatorPower Input IEEE 802.3af PoE Class 2Power Consumption Max. 5 WDimensions 120 (H) x 52 (W) x 39 (D) mm (Body only)147 (H) x 61 (W) x 41 (D) mm (w/ Bracket)Weight 81 g (camera body)127 g (w/ bracket)Certifications EMC: CE (EN 55032 Class B, EN 55035), FCC (FCC Part 15 Subpart B Class B), UKCA (BS EN 55032: 2015 +A11: 2020), RCM (AS/NZS CISPR 32 Class B), VCCI (VCCI-CISPR 32 Class B), Safety: UL (UL 62368-1), CB (IEC/EN 62368-1, IEC/EN 60950-22, IEC/EN 62471), UKCA (BS EN IEC 62368-1: 2020 +A11: 2020), IA: BIS (IS 13252), BSMI (EMC: CNS 13438, Safety: CNS 14336-1)Operating Temperature Starting Temperature: 0°C ~ 45°C (32°F~ 113°F)Working Temperature: -10°C ~ 45°C (14°F~ 113°F)Humidity 90%System RequirementsOperating System Microsoft Windows 10/8/7Mac 10.12 (Chrome only)Web Browser Chrome 58.0 or aboveInternet Explorer 10/11Other Players VLC: 1.1.11 or aboveIncluded AccessoriesPacking Contents Quick installation guide, mounting bracket, tilt bracket, screw pack
