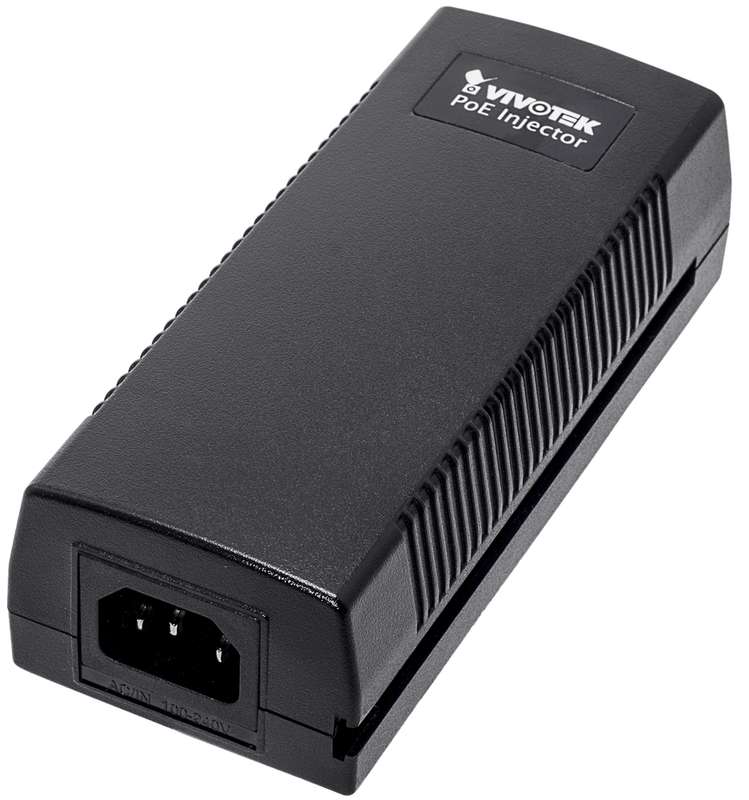

Vivotek Indoor IEEE802.3af FE PoE Injector 15W

Vivotek AP-FIC-010A-015 Indoor IEEE802.3af FE PoE Injector 15W

Specifications

Product Code    AP-FIC-010A-015

Model    AP-FIC-010A-015

IP Camera Compatibility

Video Resolution    Megapixel/D1/VGA

Video Compression    MJPEG/MPEG-4/H.264/H.265

Compatible Camera List    VIVOTEK Network Cameras

Ethernet

Fast Ethernet (RJ45)    1

Standards

IEEE 802.3 10-BASE-T (Ethernet)    Supported

IEEE 802.3u 100-BASE-TX (Fast Ethernet)    Supported

IEEE 802.3af Power over Ethernet    Supported

Transmission Media

10Base T    Cat. 3, 4, 5 UTP/STP

100Base TX    Cat. 5, 5e UTP/STP

PoE Function

Number of PoE Out Ports    1

PoE Output Power    54VDC/15.4W

802.3af Standard Compatible    Yes

Over Current Protection    Supported

Circuit Shorting Protection    Supported

Power Pin Assignment    1/2(+), 3/6(-)

PoE PD Auto Detection    Supported

General

LED Indicators    Power, PoE

Power Input    100~240VAC / 50~60Hz

Power Consumption    19W

Dimensions    146 (L) x 64 (W) x 42 (H) mm

Weight    0.2 kg

Operating Temperature    0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature    -20°C ~ 70°C (-4°F ~ 158°F)

Humidity    Operating: 10~90% (Non-condensing)

Storage: 10~90% (Non-condensing)

Safety Certifications    CE, C-Tick, FCC, VCCI, LVD

Accessory

Included Accessories    Power cord, QIG
