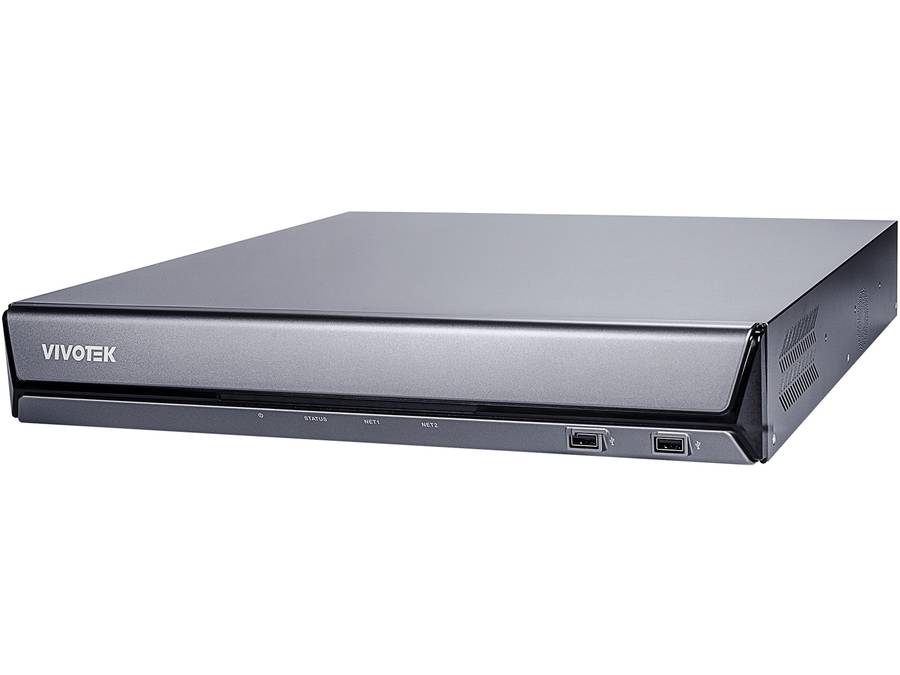

Vivotek ND9442P 16 channel Core+ AI NVR, Embedded Linux OS, 1080p 360 fps with H.265 Compression technology, Up to 20MP cameras supported, 16 channels LiveView Display, 1x HDMI, 1x VGA, Max 3840x2160 Display Resolution, H.265 / H.264 / MJPEG Video Format, Up to 7680 x 2560 decoding Resolution, 1x 3.5 phone jack audio Output, 4x 3.5" Hard Disk Drive devices, 4 channels playback Display, 2x Gigabit Ethernet (RJ-45), 16x 802.3at/af compliant PoE Ports, 16 alarm in, 8 alarm out, Motion detection, Event action, Deep searchOverview:Next Generation NVR Firmware: Core+AICore+ AI firmware take Core+ up a level. Core+ AI NVR's are empowered with Deep Search, utilizing AI to provide the fastest, smartest and most efficient evidence search user experience. VIVOTEK cameras enabled with Vision Object Analytics provide the metadata used by Deep Search's AI. Deep Search is comprised of two main functions: Attribute Search and Scene Search.Deep SearchAttribute Search uses people and vehicles as search criteria utilizing multiple attributes (e.g. gender, age group, clothing or car color, vehicle type, etc.) to quickly and accurately find the person / vehicle of interest.Smart VCA Event SearchND9442P supports alarm management and event search of VIVOTEK's deep-learning video analytics technology, Smart VCA. Users can search by single or multiple event types, playback triggered events and then export these search results to video clips.*Requires Smart VCA enabled cameras4K IP Camera Video Input and 4K Local Video OutputSupporting 4K IP camera video input and 4K local video output, VIVOTEKs ND9442P can provide users extra high definition video resolution ensuring they will never miss a single detail in both video monitoring and recording.VIVOCloud App & Portal for 24/7 ViewingThe free VIVOCloud app makes surveillance lightweight and portable, ensuring efficient operation. The latest P2P technology makes remote access even more convenient, by simply scanning the QR-code and installing the app, users can view live streams and play recorded clips with the intuitive interface anytime, anywhere. Armed with the Push Notification function, users will directly get an alert message on their Android/iOS mobile device and directly playback the video to check for any suspicious activity.Features:1080P 360 fps with H.265 Compression TechnologyUp to 20MP Cameras Supported4K Video Output Display for Clear and Detailed MonitoringDeep Search (Attribute Search, Scene Search)VIVOTEK Smart VCA Camera Supported for Event Search & Recording802.3at/af PoE with PoE ManagementRAID 0, 1, 5 Supported to Prevent from Recording Data LossAlarm In *16, Alarm Out *8Trend Micro IoT Security & Cybersecurity ManagementVIVOCloud App, VAST 2, and VAST Security Station (VSS)Made in TaiwanSpecifications:DeviceModel ND9442POS Embedded LinuxWatchdog Hardware + SoftwarePower Restoration System Restart Automatically after Power RecoveryDisplayLiveView Display 16 ChannelsMulti-Layout Display: 1x1, 2x2, 3x3, 1P+3, 2P+3, 1M+5, 1P+6, 3V, 1M+12, 4x4Video Output HDMI x1, VGA x1Display Resolution 3840x2160, 1920x1080, 1280x720Fisheye Dewarp Local: 1O, 1R, 1P, 1O3R, 1O8R, 1P3RWeb: 1O, 1R, 1PPTZ Operation Direction Control, Home, Iris, Preset, Patrol (Group)VideoVideo Format H.265, H.264, MJPEGGraphic Decoder Hardware decodingDecoding Resolution Up to 7680x2560Decoding Capability H.265/H.264:3840x2160 @ 90 fps (3-CH)1920x1080 @ 360 fps (12-CH)AudioAudio Format G.711, G.726Audio In/Out 3.5 Phone Jack Audio Output x13.5 Phone Jack Audio Input (Reserved) x1RecordRecording Time (sec.) Pre-Record: 5 (Max. 10)Post-Record: 20 (Max. 300)Recording Stream DualRecording Throughput 192 MbpsRecording Mode Continuous, Schedule, Manual, Event, Activity Adaptive StreamingRecording Setting Recycle (unit: Day)Watermark SupportedStorage & BackupHDD Devices Internal x4 (3.5")*HDD purchased separately.HDD Max. Capacity *Please refer to the recommended HDD list on the VIVOTEK website.RAID RAID 0, 1, 5Disk Management Create, Format and Remove DiskHDD S.M.A.R.T.External Storage USB Storage (USB 3.0)Video Clip Export USB Dongle (FAT Format)Schedule Backup FTPPlaybackPlayback Display 4 ChannelsMulti-Layout Display: 1x1, 2x2, 1P+3, 3VPlayback Control Regular (play, pause, stop), rewind, next/previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)Video Search By calendar, date/time, and alarmThumbnail Explorer (Storyboard) Listing the thumbnails of recorded video (Max. 2-CH)Snapshot JPEGVideo Clip Export SupportedNetworkEthernet 10/100/1000Mbps Ethernet (RJ-45) x2Network Throughput Input/Output Total 224 MbpsPoE 802.3at/af compliant PoE ports x 16 (Total Max. 200 W)* DO NOT suggest connecting any non-PD device with this NVR PoE port in order to avoid potential risk.PoE Management SupportedProtocols IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNSExternal InterfaceUSB Front: 2 (USB 2.0)Back: 1 (USB 3.0)Alarm In 16Alarm Out 8Audio 3.5 Phone Jack Audio Output x13.5 Phone Jack Audio Input (Reserved) x1RS485 1 (Reserved)SystemCamera Integration ONVIF Profile SEvent Motion Detection, Smart VCA Event, Cyber Attack, PIR Detection, Tampering Detection, Camera DI/DO, Camera Disconnected, Disk Failure, Disk Full, NVR DI/DO, PoE error, Fan errorEvent Action Record, Email (Text), Email (Snapshot), FTP, Buzzer, ePTZ Control (Go to Preset), NVR DO, Camera DO, VIVOCloud APP NotificationUser Management User level: administrator, regular userLog System, recording, user, errorDate & Time Time Zone, Manual, Automatic Sync NTP, Daylight Saving TimeLanguage Czech, English, French, German, Italian, Japanese, Korean, Portuguese, Polish, Russian, Spanish, Simplified Chinese, Traditional Chinese, ArabicDeep SearchObject Search People, VehicleScene Search Line crossing, Intrusion, LoiteringAttribute Search People: Gender, Age, Clothing Color, AccessoriesVehicles: Type, ColorAdvanced FeaturesVCA Counting Solution SupportedVCA Event Search SupportedSmart Search II SupportedTrend Micro IoT Security SupportedCybersecurity Management SupportedRemote ClientSoftware AP Shepherd, VAST 2, VSS (VAST Security Station)Mobile/Tablet App iViewer (Android & iOS)Web Browser ChromeVIVOCloud SupportedGeneralPower Input 100-240V AC, 50/60HzPower Consumption Max. 300 WDimensions 432 (W) x 421 (D) x 66 (H) mmWeight 4.6 kg (without HDD)Operating Temperature -10°C ~ 55°C (14°F ~ 131°F)Humidity 0 ~ 95%Safety Certifications CE, LVD, FCC, VCCI, C-Tick, UL, CB, BSMI, BIS
