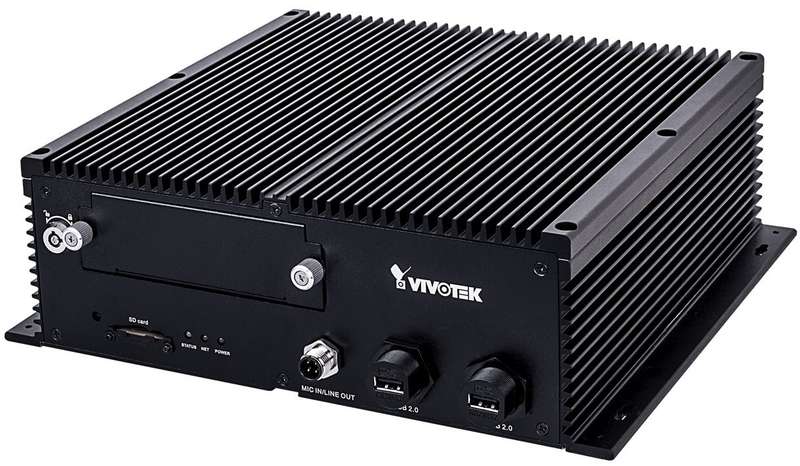

Vivotek NV9311P H.265 8-Ch Embedded mobile NVR, H.265/H.264, 8CH, 8 x PoE, 4K Display, Built-in GNSS Receiver, Built-in G-sensor, WiFi & LTA OptionsOverview:VIVOTEK's NV9311P is a mobile NVR designed for transportation surveillance and provides 1080p 8-CH real-time live display with recording efficiency using advanced H.265 video compression technology. The 8x 802.3at/af PoE ports provide network connections and power to the network cameras. With a rugged EN50155 and MIL-STD-810G compliant design, the mobile NVR will provide durable and robust protection for all types of vehicle movement.The NV9311P supports built-in G-sensor and GNSS module to provide information such as G-sensor events and speed events, as well as offering multiple network interfaces such as LAN, WiFi and LTE for different network connection requirements. By implementing VIVOTEK's VAST 2 software, GPS tracking locations are instantly displayed on Google Maps. Live videos can also be displayed remotely, allowing for instant access for complete safety control.When installed in vehicles, the mobile NVR supports system power delay on/off and low voltage protection for better system reliability. The NVR also features a wide range of power inputs, an aluminum die-case chassis, a built-in heater, surge protection, and protection from shock and vibration. With an easy-to-install design as well as simple operation and rich features, the NV9311P provides more possibilities for tomorrow's in-vehicle security applications.Features:H.265 1080p 8-CH Real-time Live DisplayVIVOTEK's Smart Stream II to Optimize Bandwidth Efficiency4K Display for Clear and Detailed MonitoringLAN/Wi-Fi/LTE Multiple Network Connections802.3at/af Compliant PoE port x8 with Management EfficiencyBuilt-in G-sensor for Vehicle Vibration AlertsGPS Tracking on Google Maps with VAST 2 VMSDelay Power Startup/Shutdown and Low Voltage ProtectionBuilt-in Heater for Extreme Temperatures (-40°C ~ 55°C)EN50155/MIL-STD-810G certified to Ensure Reliability during Vehicle TravelH.265 1080P Real-time Live DisplayFeaturing a powerful multi-core SoC to provide 1080p (1920x1080) real-time live display so that users will not miss any information during monitoring, the NVRs also provide H.265 and VIVOTEK's Smart Stream technology to help greatly save recording capacity than regular H.264 systems.WiFi and LTE Connection OptionsThe video stream and data of the Mobile NVRs will be transmitted to the control center remotely for monitoring via WiFi 802.11a/b/g/n/ac or LTE connection.Built-in G-sensorBuilt-in G-sensor for drive safety control. Users can set the sensitivity level and the G-sensor will be triggered in the event of an accident or when extreme vibrations happen.Fisheye DewarpVIVOTEK's NVR offers both LiveView and Playback modes for one fisheye network camera simultaneously. They also provide multiple fisheye de-warp display modes, including 1O, 1P, 1R, 1O3R, 1O8R, allowing users to monitor any angle, or to enjoy precise detailed images for a total surveillance experience.GPS Tracking on Google MapsThe embedded GNSS receiver supports GPS, GALILEO and GLONASS systems for different area applications. By remotely using VAST 2 VMS, it allows users to have both live video display and GPS tracking from Google Maps.Rugged Design for Mobile SurveillanceCompliance with transportation standards EN50155 and MIL-STD-810G, which ensures meeting anti-vibration and anti-shock requirements, and operable in tough conditions such as extreme low temperatures, high humidity, and even surge protection.Specifications:Model NV9311PSystemOS Embedded LinuxCPU ARM ProcessorFlash 256MBRAM 2GBWatchdog Hardware SoftwarePower Restoration System restart automatically after power recoveryLocal DisplayLive View Display 8 ChannelsMulti-layout display: 1x1, 3V, 2x2, 3x3, 1P 3, 2P 3, 1M 5, 1P 6Video Output HDMI x1, VGA x1Display Resolution 3840x2160, 1920x1080, 1280x720Camera Position Change the view cell position on the Live View screensStream Application Constant/Auto adaptive streamMonitor Enhancement OSD display (NVR), OSD display (camera), camera informationremote I/O control, event notification, aspect ratioFisheye Dewarp 1O, 1P, 1R, 1O3R, 1O8RPTZ Operation Direction control, home, iris, preset, patrol (group), PiP controlVideoVideo Format H.265, H.264, MJPEGGraphics Decoder Hardware decodingDecoding Resolution H.265: up to 4096x4096H.264: up to 8192x8192Decoding Capacity H.265/H.264:3840x2160 @ 120 fps (4-CH)1920x1080 @ 480 fps (16-CH)AudioAudio Format G.711, G.726Audio In/Out Mic in (reserved)/Line out x 1RecordRecording Time (sec.) Pre-Record: 5 (Max. 10)Post-Record: 20 (Max. 300)Recording Stream SingleRecording Throughput 64MbpsRecording Mode Continuous, schedule, manual, event, activity adaptive streamingRecording Setting Recycle (unit: day)Watermark SupportedStorageHDD Devices Internal x1 (2.5" HDD/SSD)HDD Max. Capacity 2TBDisk Management Create, format, remove diskHDD S.M.A.R.T.SD Card SD card slot x1 (reserved)Backup Schedule backup to FTP serverPlaybackPlayback Display 4 ChannelsMulti-layout display: 1x1, 2x2, 1P 3, 1V 3Playback Control Regular (play, pause, stop), rewind, next /previous frame, speed control, calendar, event, timeline, timeline scale, thumbnail (storyboard)Video Search by calendar, date/time, alarmThumbnail Explorer (Storyboard) Listing the thumbnail of recorded video (Max. 2-CH)Snapshot JPEGVideo Clip Export EXENetworkEthernet 10/100/1000Mbps Ethernet (RJ-45) x 1Video Throughput for Remote Client 96MbpsWiFi IEEE802.11a/b/g/n/ac 2T2R (optional)Mobile Network LTE (optional)PoE 802.3at/af compliant PoE ports x 8 (total Max. 64W)Please connect an external network switch for further on-line cameras. (Support all VIVOTEK PoE Switches)PoE Management SupportedProtocols IPv4, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, SMTP, FTP, DHCP, NTP, DNS, DDNS, IP FilterExternal InterfaceUSB Front x2 (USB 2.0)Back x1 (USB 2.0)Alarm In 8Alarm Out 4Audio Mic in (reserved)/Line out x 1Antenna Interface GPS x1, WiFi x2, LTE x2RS232 1 port (reserved)SystemCamera Integration ONVIF core spec 2.2 or above (request by project)GNSS GPS/GALILEO/GLONASS supportedG-sensor SupportedEvent Camera: motion detection, PIR detection, tampering detection, DI/DO, disconnectionSystem: storage abnormal, storage full, DI/DO, GPS disconnected, GPS speed, G-sensorEvent Action Video recording, email with snapshot, buzzer, PTZ, FTP, DO (camera, system), full screen, send to CMSUser Management User level: administrator, regular userLog System, recording, user, errorDate & Time Time zone, manual, automatic sync NTP, daylight saving timeRemote ClientSoftware AP Shepherd, VAST 2Mobile/Tablet App iViewer (Android & iOS)Web Browser Internet Explorer 10 (32 bit) or later/WindowsGeneralPower Input DC 12V~48V ±10%Power Management Programmable delay on/off relative to ignition or other switched voltageSurge Protection SupportedPower Consumption Max. 149 WWithout HDD/SSD and PoE: Max. 15 W (Heater off), Max. 45 W (Heater on)Dimensions 284 (W) x 230 (D) x 90 (H) mmWeight 4.06 kg (without HDD)Operating Temperature -40°C ~ 55°C (-40°F ~ 131°F)Humidity 0 ~ 95%Safety Certifications CE, FCC, VCCI, C-Tick, EN50155, EN61373, UL, C
