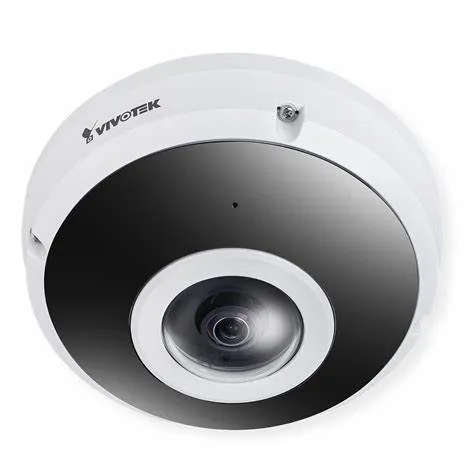

Vivotek Outdoor IK10 Fisheye Network Camera VIVOTEK FE9391-EHV-V2
Monitor an indoor or outdoor area with the FE9391-EHV-V2 12MP Network Fisheye Dome Camera from Vivotek. This unit uses a 12MP 1/2.3" progressive scan CMOS sensor to capture 2944 x 2944 resolution video at 30 fps. Four IR LEDs provide up to 66' of night vision. The camera's 1.22mm fixed lens delivers a 180° horizontal field of view and a 360° fisheye panomorph view. Two-way audio is possible thanks to a built-in microphone, an audio input, and an audio output. A memory card slot accepts microSD/SDHC/SDXC cards (available separately). Integrated PoE technology simplifies connectivity by enabling the transfer of power and data through a single cable.
This camera complies with ONVIF profiles G, S, and T, making it compatible with a wide range of surveillance devices. It is housed in an IP66-, NEMA 4X-, and IK10-rated enclosure for outdoor use in areas at risk of vandalism. An embedded heater allows the camera to be operational in temperatures as low as -40°F.
General Features
Built-in heater
Client and local dewarping modes offer various fisheye, panoramic, and region views while the camera is wall or ceiling mounted
Multimedia SoC CPU
Removable IR cut filter enables day and night functionality
H.265, H.264, and MJPEG video codecs
Smart Stream III optimizes bandwidth efficiency
Triple streaming
ePTZ with 12x digital zoom
WDR Pro
120 dB dynamic range
56.9 dB S/N ratio
Image settings include; video title and time stamp overlay, video orientation (flip, mirror), day/night settings, anti-overexposure, white balance, image adjustment (brightness, contrast, saturation, sharpness, gamma curve), defog, 3D-DNR, exposure, BLC, exposure control, AE speed adjustment, WDR, privacy mask, scheduled profile settings, and pixel calculator
Five-window video motion detection, people detection, and time filter
Smart VCA includes; intrusion detection, loitering detection, line crossing detection, unattended object detection, missing object detection, crowd detection, and running detection
Event triggers include; audio detection, camera tampering detection, cybersecurity events (brute force attack event, cyberattack event, quarantine event), digital input, manual trigger, motion detection, periodical trigger, recording notification, microSD card life expectancy, shock detection, and system boot
Secure boot and signed firmware security
Built-in microphone with an effective audio pickup range of about 16'
Audio input and output
100M RJ45 Ethernet
Compatible with Windows 10, 8 & 7, Mac OS 10.12 (Chrome only), Internet Explorer 10 & 11, Chrome 58 or higher, VLC 1.1.11 or higher, and VADP package
Live viewing for up to ten clients
System power and status LED indicators
CE, FCC, VCCI, UL, and CB certified
DORI Ranges
103' detection range
41' observation range
21' recognition range
10' identification range
