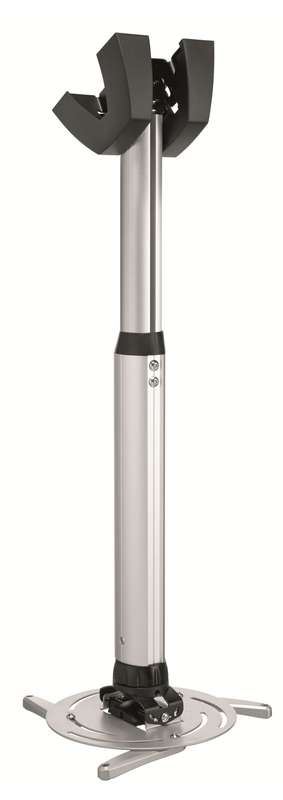

Vogel's PPC 2555 Projector Ceiling Mount

Vogel's PPC 2555 Projector Ceiling Mount

The PPC 2555 is a height adjustable projector mount specially designed for the latest generation of projectors weighing up to 30 kg.

This projector interface is equipped with fine tune adjustability for precise alignment to the projection surface. Once aligned, the projector stays in position. Turning the unique friction ring will eliminate all play from the interface connections, making the mount a solid and very stable solution.

The height adjustable projector ceiling mount kits can be used when the height of the ceiling is not known or when flexibility is wanted. These mounts come in 3 lengths offering variable height adjustment from 400 to 1350 mm.

The Cable Inlay System runs the full length of the pole and even allows for cable routing after installation. The offers sufficient space for all cables required and enables you to hide all the cables in a matter of seconds.

Cables fully concealed
Fine tuning during installation
Fine tuning possible after installation
Theft prevention

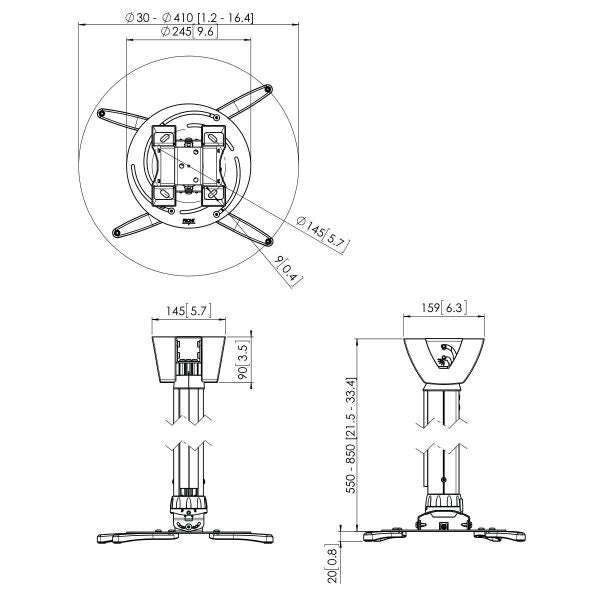

Specifications

Guarantee: 5 years
Colour: Silver
TÜV certified: Yes
Min. distance to ceiling (mm): 550
Max. distance to ceiling (mm): 850
Turn: Up to 360°
Tilt: Tilt up to 15°
Roll: 15
Max. weight load (kg): 30
Cable management: Cable management integrated in arm
Height options: Manually adjustable height
Max. projector weight (kg): Up to 30
Ceiling plate options: Flat / inclined 0-90°
Range (diameter): 30 410 mm
Height range (mm): 550 850 mm
