Easy installation in three steps
Thanks to the unique EasyFIX system, you can install your QUICK Full-Motion TV wall mount in just three steps. Your TV will be ready to watch in no more than 30 minutes. And it's no problem if your TV is mounted slightly crooked. You can also adjust your TV after installation.
Everything to hand, so convenient
Vogel's makes sure you can get to work straight away. In addition to the TV wall mount, the packaging also includes a drilling template, screws, Fischer® DuoPower plugs, a spirit level and cable ties to bind your cables together securely. Mark out your first drill hole easily, using the free DrillRight app. You can find clear installation instructions in the Quick Installation Guide. You can also view the detailed manual or the installation video online.
Guaranteed safety
Vogel's doesn't compromise on safety. Every QUICK Full-Motion+ TV wall mount is tested at three times its maximum weight capacity and is TÜV-certified. All of our TV wall mounts meet the highest safety requirements. There is a good reason why you get a 5-year warranty on your QUICK Full-Motion+ TV wall mount.
Consciously designed
The environmental impact of this product is 17,5 kg CO equivalent. At Vogel's, we think it is important to know your product inside out. This allows us to make the best design choices for the next generation of TV mounts. Want more details on the impact of this product? Then take a look at the ecosheet under Downloads.
Specifications:
EAN single box: 8712285353222
Colour: Black
Min. screen size (inch): 40
Max. screen size (inch): 77
Max. weight load (kg): 35
Maximum rotation: Full motion (up to 180°)
Maximum tilt: Tilt up to 15°
Hole pattern (VESA): 100 mm x 100 mm, 100 mm x 200 mm, 200 mm x 100 mm, 200 mm x 200 mm, 200 mm x 300 mm, 300 mm x 200 mm, 300 mm x 300 mm, 400 mm x 200 mm, 400 mm x 300 mm, 400 mm x 400 mm, 500 mm x 200 mm, 500 mm x 300 mm, 500 mm x 400 mm, 600 mm x 200 mm, 600 mm x 300 mm, 600 mm x 400 mm
Min. distance to the wall (mm): 79

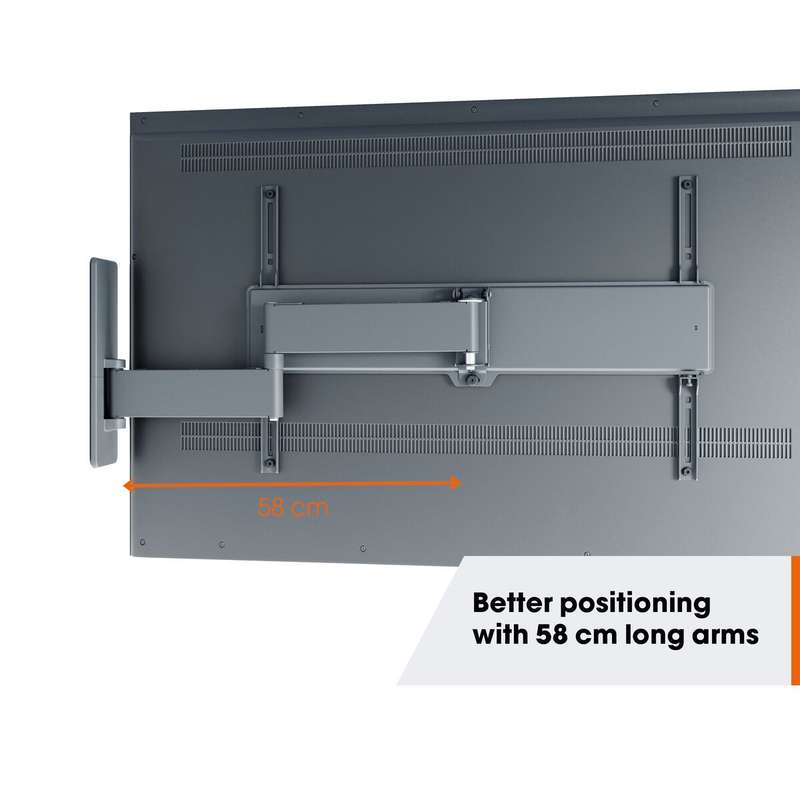

Max. distance to the wall (mm): 599
Min. distance to the wall (inch): 3.11
Number of pivot points: 3

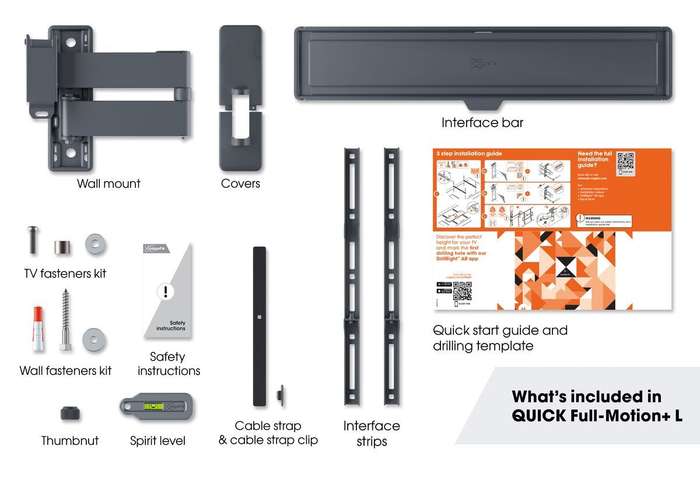

What's in the box: Wall mount, Cable straps, Wall mounting kit with fischer® Duo Power plugs, TV fasteners kit, Spirit level, Quick Installation Guide, DrillRight app, Drilling template
Product category: Full-Motion TV Wall Mount
Product Series: QUICK
Guarantee: 5 years
