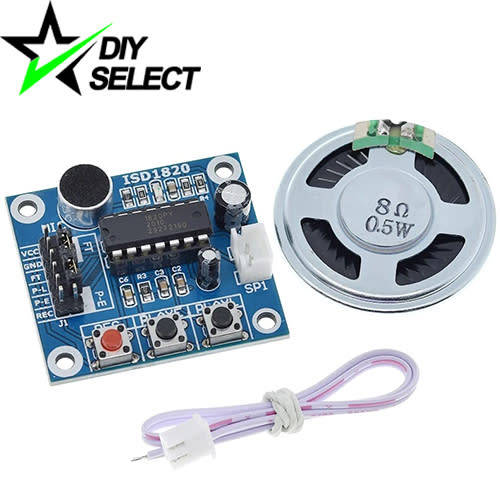

Voice Recording Module Microphone + Loudspeaker 3-5V:
Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |
Specifications:
Working Voltage Range: 3 - 5V DC

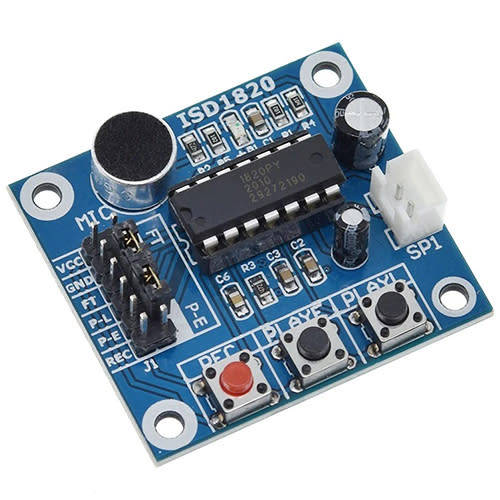

Main Chip: ISD1820
Size: 43 x 38.5 x 10mm
Features:
10 second voice recording and playback
Can be used as a loudspeaker module
Single-Pass Play, Jog play or Loop
Key Functions:
RECkey: Recording button, press and hold can be recorded, release the button to stop recording;
RLAYEkey: Trigger mode playback, click to play the current entire paragraph of the voice;
PLAYLkey: Jog mode playback, press and hold for playback, release to stop playback;
RPLJumper: Loop mode control, can be looped;
FTJumper: Through control, can make the microphone head voice to the speaker playback;
Note: The module output power is small, so the sound is also small.It is recommended to use a miniature digital audio amplifier board with 3W Speakers to achieve greater sound effects.
