Voice Recording Module Microphone + Loudspeaker 3-5V **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

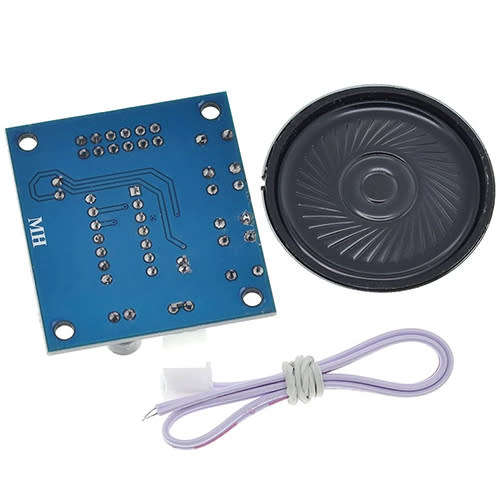

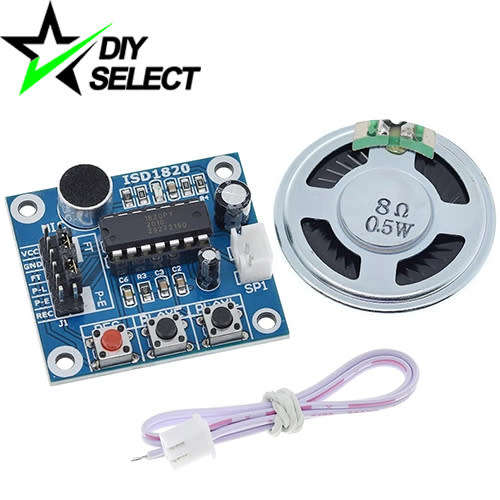

Voice Recording Module Microphone + Loudspeaker 3-5V:
Specifications:
Working Voltage Range: 3 - 5V DC
Main Chip: ISD1820

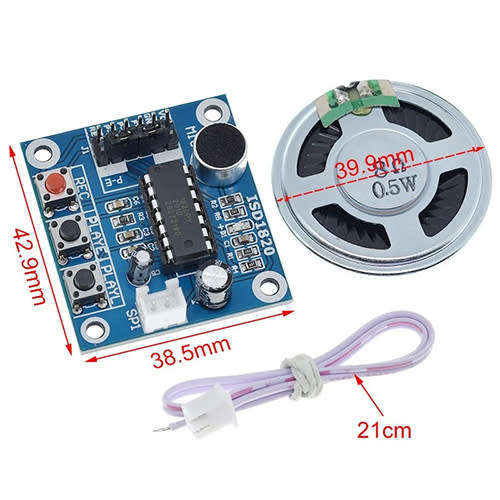

Size: 43 x 38.5 x 10mm
Features:
10 second voice recording and playback
Can be used as a loudspeaker module
Single-Pass Play, Jog play or Loop
Key Functions:
RECkey: Recording button, press and hold can be recorded, release the button to stop recording;
RLAYEkey: Trigger mode playback, click to play the current entire paragraph of the voice;
PLAYLkey: Jog mode playback, press and hold for playback, release to stop playback;
RPLJumper: Loop mode control, can be looped;
FTJumper: Through control, can make the microphone head voice to the speaker playback;
Note: The module output power is small, so the sound is also small.It is recommended to use a miniature digital audio amplifier board with 3W Speakers to achieve greater sound effects.
