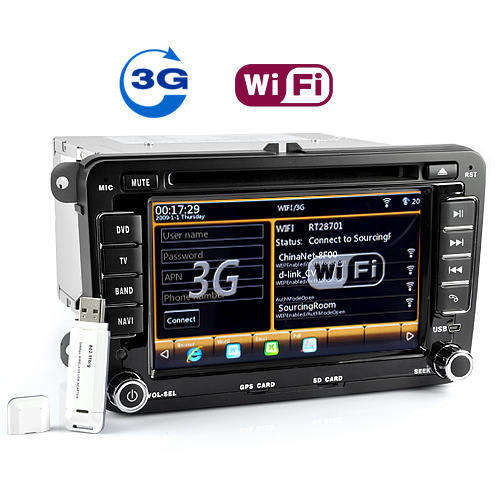

Volkswagen In Dash Car DVD
With 3G Internet (WIFI, 2DIN, GPS, DVB-T)
!!SPECIAL!!
If performance matters most then we invite you to complete your Volkswagen with The Volkswagen Edition Car DVD Player, which has been especially designed for Passat B6, Passat B7, Passat CC, Jetta 5 2005-2008, Golf 5 2003~2009, Skoda Superb, Tiguan and Touran.
At the heart of The Volkswagen unit is a performance addicted Telechips tcc8900 CPU. Korean tech giant Telechips is a leading microprocessor maker for automotive multimedia units and the tcc8900 is their brilliant brainchild. The "89" houses a 500MHz ARM11 core and a separate ARM Mali 200MHz graphic processing unit. And like all great technologies, synergy dictates that the whole unit is far more than the sum of its parts. A dedicated GPU allows picture in picture graphics to soar and 1080p videos to scream such that 500MHz plus 200MHz definitely add up to more than 700MHz, which is especially useful when you're running top of the line GPS software or watching streaming high definition discreet entertainment in the privacy of your automobile.
At a Glance...
Surf the 3G Internet
Surf WIFI Internet
High definition 7 inch touchscreen
GPS navigator
DVB-T MPEG2 receiver included (DVB-T MPEG 4 Tuner Optional Extra)
Free 2GB SD card included
Evaluation SA GPS maps
Dual zone functionality
Picture in picture
Customize background pic
Music: MP3 / WMA / EAAC+ / AC3
Video: H.264, MPEG 4, Real Video 8/9/10
Manufacturer Specifications:
Primary function: 2-DIN Car DVD Player with GPS, DVB-T, WIFI, and 3G Internet Access
Main system information
- Motherboard: Telechips TCC8900
- Core CPU: ARM 1176JZF-S (500MHz)
- GPU: ARM Mali-200 (200MHz)
- Internal memory: 256MB RAM, 256MB Nand Flash
- External memory: SDHC card (up to 32GB) and USB drive (up to 32GB)
- Default baud rate: 9600
- COM port: 2
- Operating system: Windows CE 6.0
GPS information
- Maps: via SD card
- Voice: YES
(Actual voice and display language depends on the GPS software being used)
Internet information
- 3G: supports WCDMA 3G dongles and WCDMA 3G sim cards
- WIFI: 802.11 b/g (included)
Display information
- Screen: 7 Inch TFT LCD
- Resolution: 800 x 480 RGB
- Tilt angle: 0-90 degrees (button activated motorized tilt)
- Video systems: PAL, NTSC, AUTO
Disc information
- Region free (also known as region zero or no region)
- CD, VCD, SVCD, DVD, MP3, WMA
DVD information
- Auto play: ON/OFF
- 16:9, 4:3 PS, 4:3 LB
DVB-T information
- Digital TV receiving standard: MPEG-2 (MPEG-4 receiver optional extra available)
- Automatic and manual search
- Display: 16:9, 4:3
Audio information
- Max audio output: 45W x 4
- Signal-to-noise ratio (SNR): >85dB
- User adjustable EQ: Bass, Treble, Balance, and Fade
AM/FM radio tuner information
- AM frequency range: 522~1710KHz (Worldwide)
- FM tuning range: 87.5~108.0MHz (Worldwide)
- RDS system: YES
Bluetooth 2.1
Media player information
- Video formats supported (up tp 1080p): H.264, MPEG 1/2, MPEG 4, VC-1, Real Video 8/9/10, H.263
- Audio formats supported: MP3 / WMA / EAAC+ / AC3
- Image formats supported: JPG
Connection information
- IPOD input
- USB input
- GPS antenna input
- DVB-T antenna input
- Radio antenna input
- RCA audio OUT x2 (front L and R)
- RCA audio OUT x2 (rear L and R)
- Aux-L IN
- Aux-R IN
- Subwoofer
- Video IN
- Video OUT x2
- Camera IN
- Left front speaker x2
- Right front speaker x2
- Left rear speaker x2
- Right rear speaker x2
Control information
- IR window
- Eject
- Screen angle adjust up
- Screen angle adjust down
- Volume decrease
- Volume increase
- GPS toggle
- Power ON/OFF
- Reset
- Microphone
Main menu languages: English and Chinese
Dimensions: 175mm x 150mm x 100mm (L x W x H)
Front panel: 220mm x 20mm x 130mm (L x W x H)
Product Notes:
The Volkswagen unit has 3G internet functionality but requires the use of a 3G dongle and your own 3G sim card.
This unit has steering wheel control
This product supports the DVB-T digital TV standard, which is not used worldwide. Please check to see if DVB-T will work in your region: [http://en.wikipedia.org/wiki/DVB-T]
The installation of this Car DVD Player should only be performed or supervised by a professional or a recognized fitment center.
Package Contents:
Volkswagen car DVD, Remote control, 54 Mbps 802.11b/g WIFI dongle, GPS antenna with coax connection, DVB-T antenna with coax connection,
13 pin round male to 30-pin male apple connector + female full USB cable, Micro USB male to full USB female cable, Male 5mm radio antenna to female 3mm radio antenna, AV cables, Stylus, Power cables with decoder for Volkswagen, User manual - English
