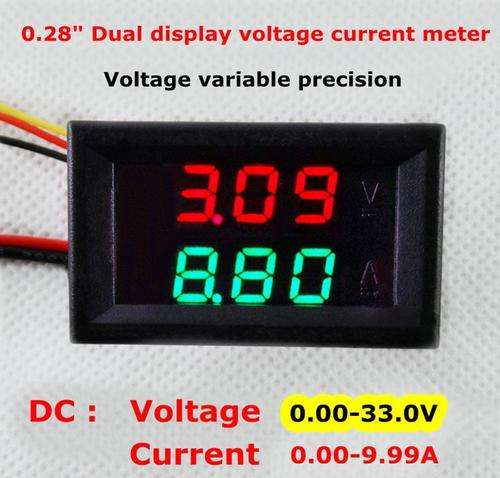

Ammeter Voltmeter DC 0.00-33.0V/10A Dual LED Display (Red+Green):
Technical Parameters:
- Display color: Red+Green
- Display mode: Dual 0.28 LED digital tube
- Update rate: About 500 ms/time
- Physical size: 48 x 29 x 26 mm (L*W* H)
- Opening size: 45 x 26 mm (L*W)
- Supply voltage : 3.5-30V

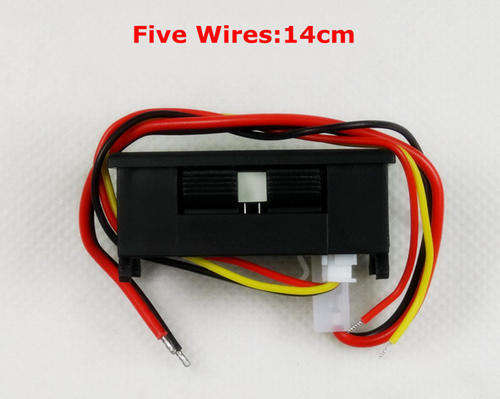

- Lead wire length: 14 cm(Five wires)
- Measurement range: DC 0.00-9.99A(current) 0.00-33.0V(voltage)
- Operation temperature: -10 degrees~65 degrees
- Measurement accuracy:± (1% + 2 digits)

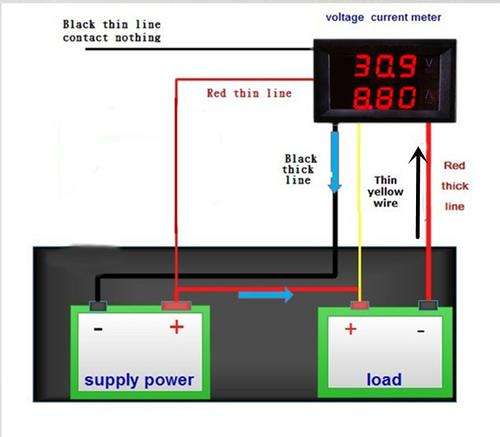

Instruction of wiring:
Red thin wire (VCC): Power input+ 3.5-30V (NOTE: If the measuring signal is lower than 30V and have abundant power supply, it can be used as power supply for the module [black wire and yellow wire are contacted together to use]
Black thin wire(GND): Power input- Measurement signal - 3.5-30V
Yellow thin wire (VIN): Measurement signal+ (0-33.0V)
Red thick wire (I+): Current input+ (connect with load negative)
Black thin wire(I-): Current input- (in series in power supply negative)
Voltage current meter with isolated power supply:
Calibration:
Instruction:
Error phenomenon one: Because of the some eclectic parts ageing and influenced by the temperature, sometimes when measuring the small current, the error of some meter become big or sometimes some meter dont show zero without load.
Solution: When the meter is off the power, please short circuit A and B (connect A and B). Then make the meter have the electricity, the meter will automatically calibrated to zero. When the automatic calibration is over, please disconnect A and B. After this, that is ok.
