Voltmeter/ Ammeter DC 0.00-33.0V/10A Dual LED Display (Red+Yellow) **IN STOCK**
Sold

Voltmeter/ Ammeter DC 0.00-33.0V/10A Dual LED Display (Red+Yellow) **IN STOCK**

4 were available / new
R98.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 2 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Customer ratings:
Product code
MET142
Bob Shop ID
306368212

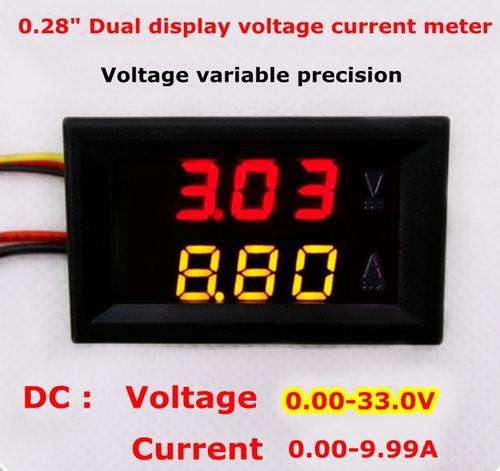

Ammeter Voltmeter DC 0.00-33.0V/10A Dual LED Display (Red+Yellow):

Technical Parameters:

Display Colour: Red+Yellow
Display Mode: Dual 0.28 LED Digital Tube
Update Rate: About 500 ms/time
Physical Size: 48 x 29 x 26 mm (L * W *  H)
Opening Size: 45 x 26 mm (L * W)
Supply Voltage: 3.5-30V
Lead Wire Length: 14 cm (Five wires)
Measurement Range: DC 0.00-9.99A (current) 0.00-33.0V(voltage)
Operation Temperature: -10 Degrees~65 Degrees
Measurement Accuracy: ± (1% + 2 digits)





Instruction of Wiring:

Red thin wire (VCC): Power input+ 3.5-30V (NOTE: If the measuring signal is lower than 30V and have abundant power supply, it can be used as power supply for the module [black wire and yellow wire are contacted together to use]

Black thin wire(GND): Power input- Measurement signal - 3.5-30V

Yellow thin wire (VIN): Measurement signal+ (0-33.0V)

Red thick wire (I+): Current input+ (connect with load negative)

Black thin wire(I-): Current input- (in series in power supply negative)



Voltage current meter with isolated power supply:




Instruction:

To Calibrate the meter to zero, when the meter is off the power, please connect A and B. Then give the meter power, the meter will automatically be calibrated to zero. When the automatic calibration is over, please disconnect A and B.
