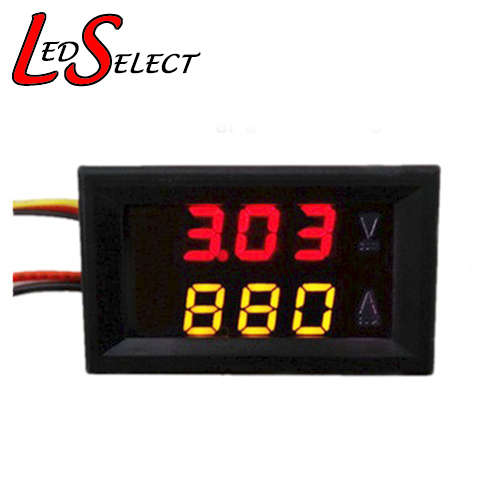

Voltmeter / Ammeter DC 0.00-33.0V/10A Dual LED Display (Red+Yellow):

Specifications:

Display Colour: Red+Yellow
Display Mode: Dual 0.28 LED Digital Tube
Update Rate: About 500 ms/time
Physical Size: 48 x 29 x 26 mm (L * W * H)
Opening Size: 45 x 26 mm (L * W)
Supply Voltage: 3.5-30V
Lead Wire Length: 14 cm (Five wires)
Measurement Range: DC 0.00-9.99A (current) 0.00-33.0V(voltage)
Operation Temperature: -10 Degrees~65 Degrees
Measurement Accuracy: ± (1% + 2 digits)

Instruction of Wiring:

Red thin wire (VCC): Power input+ 3.5-30V (NOTE: If the measuring signal is lower than 30V and have abundant power supply, it can be used as power supply for the module [black wire and yellow wire are contacted together to use]

Black thin wire(GND): Power input- Measurement signal - 3.5-30V

Yellow thin wire (VIN): Measurement signal+ (0-33.0V)

Red thick wire (I+): Current input+ (connect with load negative)

Black thin wire(I-): Current input- (in series in power supply negative)

Voltage current meter with isolated power supply:

Instruction:

To Calibrate the meter to zero, when the meter is off the power, please connect A and B. Then give the meter power, the meter will automatically be calibrated to zero. When the automatic calibration is over, please disconnect A and B.
