Voltmeter Ammeter DC 0-100V/ 0-10A (Red /Blue) **IN STOCK**

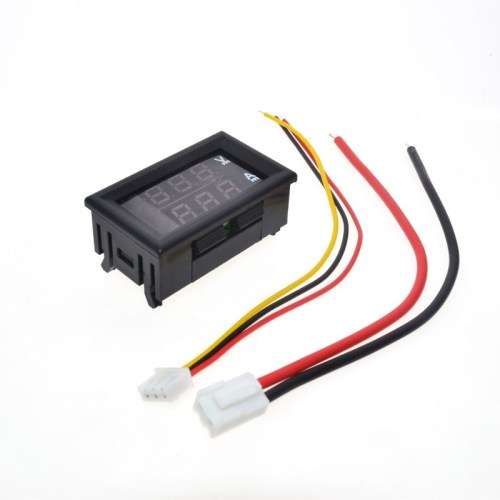

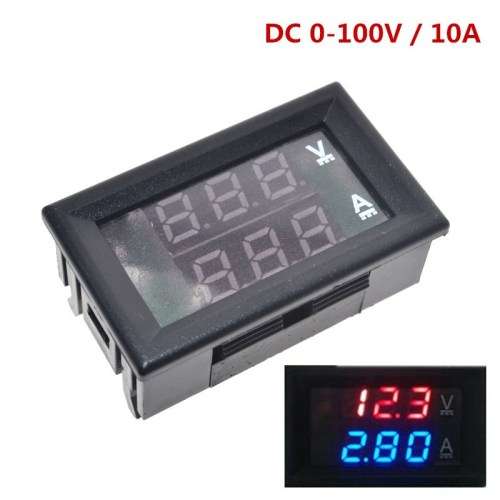

Voltmeter & Ammeter DC 0-100V/ 0-10A:

Operating voltage: DC 4.5 ~ 30V
Measure voltage: DC 0 ~ 100V
Minimum resolution(V): 0.1VMeasure current :10A (no need external shunt)
Minimum resolution(A): 0.01A
Operating current: <20mA
Display: Three 0.28" LED digital tube
Display colour: Red and Blue (two-color display)
Dimensions: 48 x 29 x 21mm
Mounting cutout: 45.5 x 26.5mm
Refresh rate: about 500mS / times
Measure accuracy: 1% (± 1 digit)
Operating temperature: -10 to 65°c
Operating Humidity: 10 to 80% (non-condensing)
Working pressure: 80 to 106 kPa

Applications:

Suitable for automotive/electric cars/motorcycles battery monitoring or other products that require voltage and current measurement.

NOTE:

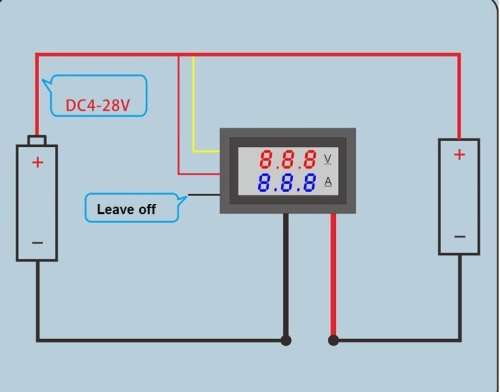

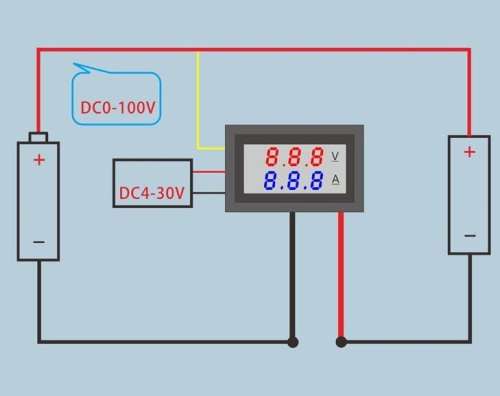

• The voltage between the thin red and thin black lines must be within DC 4.5-30V
• The ammeter can only be connected to the negative of the device under test

• It is unsuitable to use this meter to test current less than 1A ,if you use it to test ampere below 1A,it will have errors.
