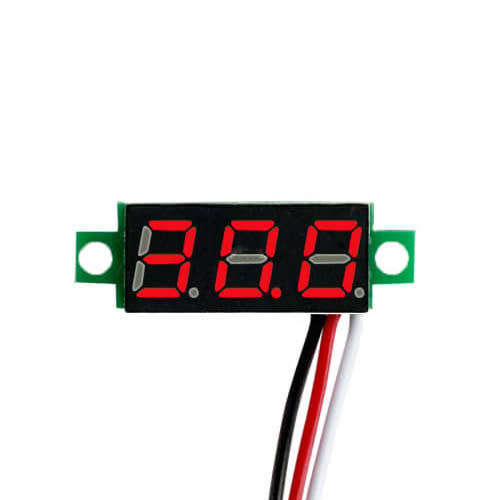

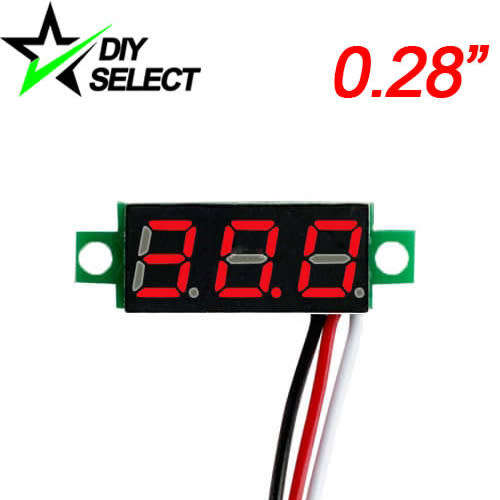

Voltmeter DC 0-100V 0.28" Mini 3 Digit Display Red **LOCAL STOCK**

Voltmeter DC 0-100V 0.28" Mini:

Specifications:

Measuring Range: DC 0-100V (Black - & White +)
Display Colour: Red 0.28"
Power Supply: DC 4.5-30V (Black - & Red +)
Dimension: 23 x 10 x 8mm

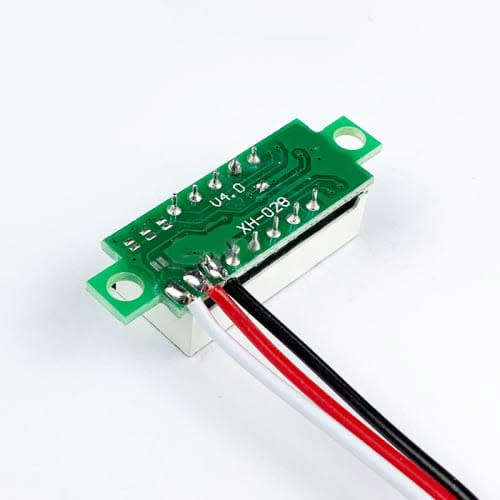

Connection:

To measure between your standard 4.5 - 30V simply connect the BLACK to negative and (RED and WHITE to positive)

To measure from 0 - 100V use the BLACK and RED wires to power the meter with 4.5-30V. Then for the voltage you want to measure, connect the White wire to the positive and the black wire to the negative terminal.

See diagram below
