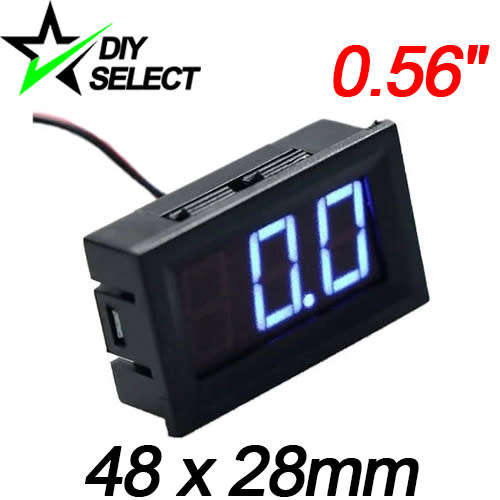

Voltmeter DC 0-100V Large 3 Digit Display Blue **LOCAL STOCK**
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Voltmeter DC 0-100V Large:
| Free combined shipping for additional orders placed in our other store "LED SELECT" https://bidorbuy.co.za/seller/434337 |
Specifications:
Measuring Range: DC 0-100V (White wire + and Black wire -)
Measuring Range: DC 4.5-30V (Red wire + and Black wire -)
Display: Three 0.56" LED digital tube
Display Color: Blue
Refresh Rate: Approx 500mS / times
Input: DC voltage
Resolution: 1% +1 digit
Operating Temperature: -10.C - 65 .C
Size: 48 x 28 x 21mm
*** To measure between your standard 4.5 - 30V simply connect the BLACK to negative and (RED and WHITE to positive)
***To measure from 0 - 100V use the BLACK and RED wire to power the meter with 4.5-30V. Then for the voltage you want to measure, connect the White wire to the positive and the black wire to the negative terminal.
