Product Information
Description

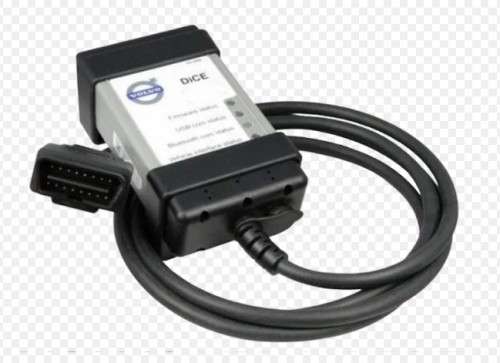

1. DICE - Diagnostic Communication Equipment, is a tool that is used together with VIDA all-in-one to communicate with the vehicle.
Communication makes diagnosing and troubleshooting the vehicle possible, as well as downloading software.
2. DICE has an integrated CARB cable, which is connected to the vehicle's diagnostic socket.
When connecting to the vehicle, DICE is powered as long as the battery is charged.
3. DICE has a folding hook that is designed for hanging the unit from one of the grab handles in the vehicle for example.
4. DICE is equipped with four status LEDs that indicate the status of the software, the USB and Bluetooth communication and the interface to the car.
5. At one end of the unit, there is a DC input where a battery cable or adaptor(12V) can be connected. The adaptor is used when upgrading and troubleshooting the DICE.
6. In the other end of the unit, there is a removable cover that could be removed by turning the screw on the cover.
General Specs
Version: 2014A
Firmware: Full Chips
2014A Supported Language: English
Applicable Model: Support cars after 1999~2016 newly
Supports System: WIN7 Professional (32Bits is better)
Browser: Internet Explorer 9 or above and NET. Framework 3.5
User Name: 1 or admin
Newest 2014D version must install IE 9, then you can use it.
Please close the anti-virus program before install and disconnect the internet.
It can not support car models before the year 1999 (no ECU system).
It can not be updated online directly, or the device will broken.
Must install on C Drive with 40G spare space.
Does not supports XP and WIN 7 Home System.
Functions
Administration - General information, design and function
Standard components, service materials and consumables. General information (among other things, control modules, SRS, general safety)
service and maintenance
Engine with mounting and equipment
Electrical system
Power transmission
Brakes
Suspension and steering
Springs, shock absorbers and wheels
Body and interior - among other things, diagnostics, design and function, repair and spare part information
Features of diagnostic
Fault-tracing
General diagnostics and tests
Diagnostic trouble codes and associated procedures
Symptom-related diagnostic procedures
Wiring diagrams
Repair
General safety information
General information
Component location
Service programs
Removal, replacement and installation
Overhaul instructions
Cleaning, Inspection and Adjustment
Installation instructions, accessories
Product specification
Visual identification
Design and function
Specifications, electrical/electronic
Specifications, mechanical
Mechanical schematics and diagrams
Gas, Vacuum and Fluids Schematics/Diagrams
Bulletins
General Information Bulletins
Manual Update Bulletins
Product Fix/Special Tool Bulletins
Recall/Service Campaign Bulletins
Emission Recall Campaign Bulletins
Service Manager Bulletins
Parts/Accessories Bulletins
WB, mechanical tools
Computer Requirements
It must be windows WIN 7 Professional
It needs to be Internet Explorer 9
Computer memory need over 3GRAM
C:// must have 40GB free space
Must be installed on C://
It must be NTFS format
General
Types: Diagnostic Tool
Material: Electronic Component, ABS
Voltage: DC 12V
Adaptable Automobile: Volvo
Size: 34cm x 23cm x 7cm
Package Contents
1 x DICE Device with OBDII and USB Cables
1 x DVD with VIDA 2014A English (activated)
1 x External Power Cable
