VOLVO VCADS Truck Diagnostic Interface Tool
Brand New
Version 2.40
R5799
Available for collection or countrywide postage.
Econoparcel with Tracking R40
Speedpost Overnight to Counter R75
Courier to Door R60 (excluding eastern cape)

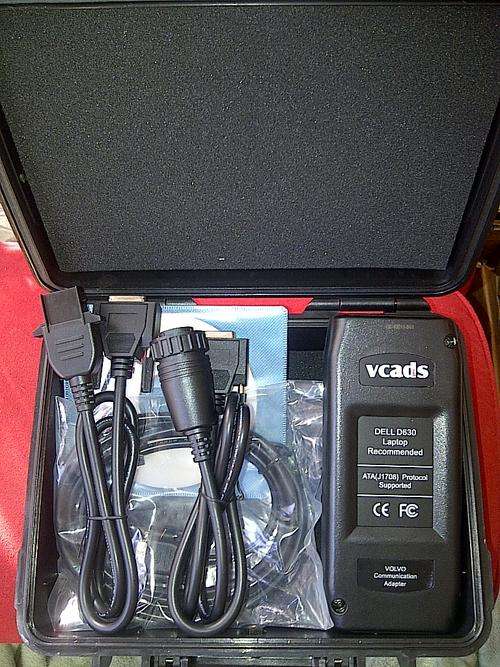

Package List:
1pc x 9998555 Adapter Main Unit
1pc x 8Pin to 16pin Cable
1pc x 14Pin to 16Pin cable
1pc x Carry Case
1pc x for Volvo VCADS(PTT 1.12) Software 2.40 Version Disc
1pc x COM Cable
Functions:
Diagnostic Program designed to read and clear fault codes.
Reprogram ECM parameters and ECMS
All features unlocked for the following manufacturers:[1] for Volvo Truck Corporation
[2] for Volvo Bus Corporation
[3] for Volvo Penta
[4] for Volvo Construction Equipment
[5] for Mack
[6] for FAW
[7] for CNHTC
[8] for OEM
PTT is a Windows-based diagnostic application specially designed to test, calibrate and program engine parameters. This software supports VN, VT, VHD, WG, WX and AC from model year '98 forward.Tests for fault tracing for Volvo D7C, D11F, D12B, D12C, D12D, D13F, D16D and D16F engines are incorporated into PTT.
Many functions in today's modern vehicles are controlled by electronic control units(ESUs). ECUs control components such as the engine, instrumentation and certain vehicles funtions. PTT is a toolbox that bundles diagnostic (VCADS) and repair applications (Guided Diagnostics) together making it a one stop shop for the technicians. The main purpose of PTT is to support the diagnostic & repair process and to make it easier for technicians to work with the tools provided.
VCADS elite software is installed on a PC. The PC is connected to the communication connector in the vehicle via the communication interface(for Volvo part number 9998555).
VCADS Elite provides tests and calibrations for VOLVO vehicles that are equipped with the Vehicle Electronics '98(VECTRO II) or Version 2 electronic control systtems. The application consists of a number of standrd graphical interfaces, such as graphs and continuous displays of parameters values. The operations are organized in the menu according to function groups. Some ECUs have changeable parameters that can be use to adjust or customize certain functions.For Volvo ECUs often have two types of parameters: Customer parameters and Vehicle parameters.
Customers parameters can be programmed locally using VCADS Elite. Vehicle parameters genarally are used to configure the vehicle when it is built and alteration of these parameters requires a connection to VDA(Vehicle Data Administration) for Volvo . These parameters CANNOT be read or programmed with VCADS Elite. These changes must be performed by a Volvo Truck dealer.
Adjustments and Improvements:
- Support for new models: FL and FE
- The Option dialog in the Tool menu has been updated.
- Manually entered chassis series are validated on the local computer.
Compatibility:
1. VOLVO TRUCKS: AC, FM10, NH565, FH12, FM12, VHD, FH16, FM7, VN, WC, WG, WI, FH565, NH12, FL6,FL7, FL10, FL12, NH525, WX, COMP04, FE, VHD, FH, FM, VM, FM9, F10, F12 , F16, NL10, NL12
2. VOLVO BUSES: B10B, B10M, B10L, B10R, M10R, B12, B58, B6, B7R, OLYMPIAN, SUPEROLY
3. VOLVO CONSTRUCTION EQUIPMENT (CE):
Wheel loader: L110E, L110F, L120E, L120F, L150E, L150F, L180E, L180F, L220E, L220F, L330E, L350F, L60E, L60F, L70E, L70F, L90E, L90F
Articulated Hauler: A25D, A25E, A30D, A30E, A35D, A35E, A40D, A40E, T450D
Excavator: EC135B, EC140B, EC140C, EC160B, EC160C, EC180B, EC180C, EC210B, EC210C, EC235C, EC240B, EC240C, EC290B, EC290C, EC330B, EC330C, EC360B, EC360C, EC460B, EC460C, EC700C, EC700B, EC700C, ECR145C, ECR235C, ECR305C, EW140B, EW140C, EW145B, EW145C, EW160B, EW160C, EW180B, EW180C, EW200B, EW210C, FC2121C, FC2421C, FC2924C, FC3329C, PL46114.
Grader: G710B, G720B, G726B, G730B, G740B, G746B, G780B, G930, G940, G946, G960 ,G970, G976, G9905.
Compact Excavator: ECR88
