The Vortex Diamondback Tactical is a long-range wolf in sheep's clothing. Rather than cramming features in at the expense of turret performance and optical quality, the Diamondback Tactical dials it back, putting the focus where it counts. Exposed turrets bring tracking performance previously unheard of at this price point, while its optical system delivers sharp image quality even at extended range. Its relatively simple design places you firmly in the driver's seat with the potential to take on that 1,000 yard mark and beyond, all at a price that's easy to justify for new shooters, your training rifle, as well as experienced shooters looking for a back-to-basics optic on their fun gun.

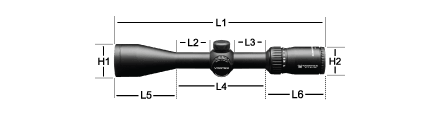

Vortex Diamondback Tactical 6-24x50 FFP Dimensions (in inches)
| Lengths |
| L1 | L2 | L3 | L4 | L5 | L6 |
| 14.28 | 2.30 | 2.70 | 6.56 | 3.98 | 3.77 |
| Heights |
| H1 | H2 |
| 2.25 | 1.73 |
Included in the Box
- Lens Covers
- Lens Cloth
- Sunshade
OPTICAL FEATURES
-XD™ Lens Elements Extra-low dispersion (XD) glass increases resolution and color fidelity, resulting in crisp, sharp images.
-Fully Multi-Coated Proprietary coatings increase light transmission with multiple anti-reflective coatings on all air-to-glass surfaces.
-First Focal Plane Reticle Scale of reticle remains in proportion to the zoomed image. Constant subtensions allow accurate holdover and ranging at all magnifications.
-Glass-Etched Reticle Allows for intricate reticle design. Protected between two layers of glass for optimum durability and reliability.
CONSTRUCTION FEATURES
-Tube Size 30 mm diameter provides maximized internal adjustment and strength.
-Aircraft-Grade Aluminum Constructed from a solid block of aircraft-grade aluminum for strength and rigidity.
-Waterproof O-ring seals prevent moisture, dust and debris from penetrating for reliable performance in all environments.
-Fogproof Nitrogen gas purging prevents internal fogging over a wide range of temperatures.
-Shockproof Rugged construction withstands recoil and impact.
-Hard Anodized Finish Highly durable hard-coat anodization provides a low-glare matte surface and helps camouflage the shooter's position.

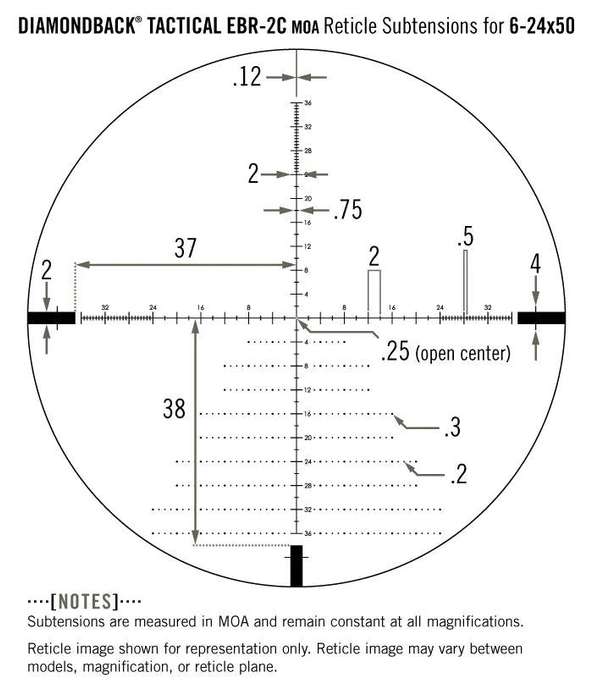

EBR-2C (MOA) Hash-marked ranging reticle using MOA based subtension lines for ranging, holdover, and windage corrections - for the subtension values, please see illustrated in the gallery lineup.
Technical Specifications;
| Magnification: | 6-24 x |
| Objective Lens Diameter: | 50 mm |
| Eye Relief: | 3.9 inches / 99 mm |
| Field of View: | 18 to 4.5 feet @ 100 yards 5.5 to 1.4 @ 91 meters |
| Tube Size: | 30mm |
| Turret Style: | Tactical |
| Adjustment Graduation: | 1/4 MOA |
| Travel per Rotation: | 15 MOA |
| Max Elevation Adjustment: | 65 MOA |
| Max Windage Adjustment: | 65 MOA |
| Parallax Setting: | 10 yards to infinity |
| Length: | 14.5 inches / 368 mm |
| Weight: | 24.6 ounces / 697 grams |
Please Note : This scope is a Parallel Import & Warranty is limited to 6 months
