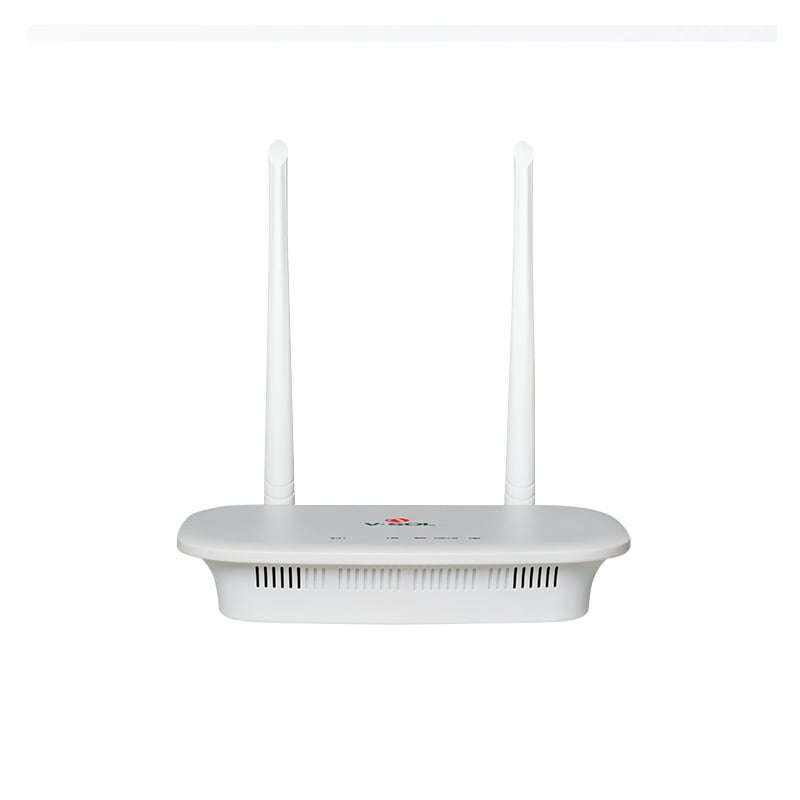

VSOL 1GE + WiFi ONU

The V2801RGW (1GE+WiFi 4 XPON ONT) is an excellent choice for quick and dependable internet connection in your home or small business. This ONT is designed to suit the demands of telecom operators for FTTH and SOHO, with a high-performance Realtek chipset that supports modern IEEE 802.11 b/g/n WiFi 4 technology. The V2801RGW supports robust Layer 2 and Layer 3 functionalities, guaranteeing high-quality data services for carrier-grade FTTH applications.

It is designed for high dependability and is simple to handle and maintain, making it an excellent solution for those seeking hassle-free internet access. With QoS assurances, you may enjoy seamless streaming, gaming, and browsing experiences. The ONT meets worldwide technological standards such as IEEE 802.3ah and ITU-T G.984, which ensure compatibility and performance. The V2801RGW is compact, attractive, and space-saving, making it simple to install and suitable for any situation. It also has a robust firewall to ensure network security.

FEATURES:

• XPON Dual Mode with both EPON and GPON OLTs, ensuring flexibility and broader network integration.
• Wi-Fi Authentication & Multiple SSID Support
• Wide Coverage up to 300MB/s
• Wi-Fi IEEE802.11b/g/n 2T2R 5dBi Antenna
• DDOS Protection & Advanced Filtering
• Layer 3 IPv4/IPv6 Support & DHCP
• Multicast IGMP v1/v2/v3 & IGMP Snooping

SPECIFICATIONS:

• Interface Parameters:
• PON Interface: 1 XPON port (EPON PX20+ & GPON Class B+), SC single mode, SC/UPC connector
• RX sensitivity: -27dBm
• Overload optical power: -3dBm (EPON) or - 8dBm (GPON)
• Transmission distance: 20Km
• LAN interface: 1 x GE Auto-negotiation RJ45 ports
• Wi-Fi interface: IEEE802.11b/g/n (TX power: 17dBm/16dBm/15dBm), 300Mbps / Supports 13 Channels
• Hardware Parameters:
• Power adapter: DC 12V, 1A, external AC-DC power adaptor
• Power supply: 6W
• Interfaces: 1GE+WIFI4
• Indicators: POWER, LOS, PON, LAN, Wi-Fi
• Storing conditions: Storing temp: -40 ~ +70C, Storing humidity: 5 ~ 95% (non-condensing)
• Operating condition: Operating temp: -10 ~ +55C, Operating humidity: 5~95% (non-condensing)
• Product Dimensions: 12 x 7.8 x 3.0 cm
• Weight: 150g

WHATS IN THE BOX:

• VSOL 1GE WiFi XPON ONT V2801RGW White x1
• DC12V/0.5A Power Adapter x1
• User Manual x1
