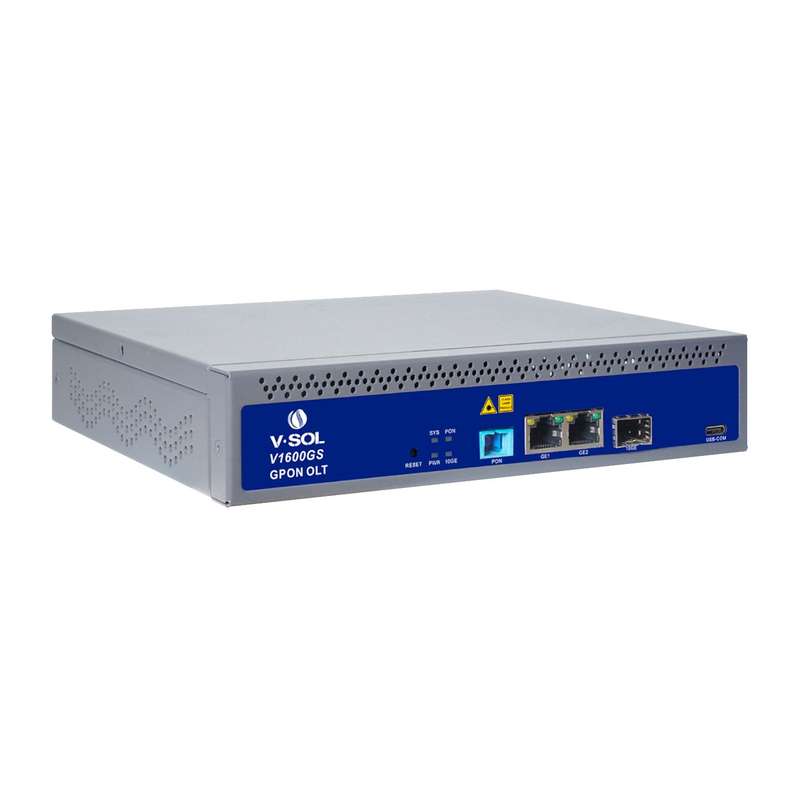

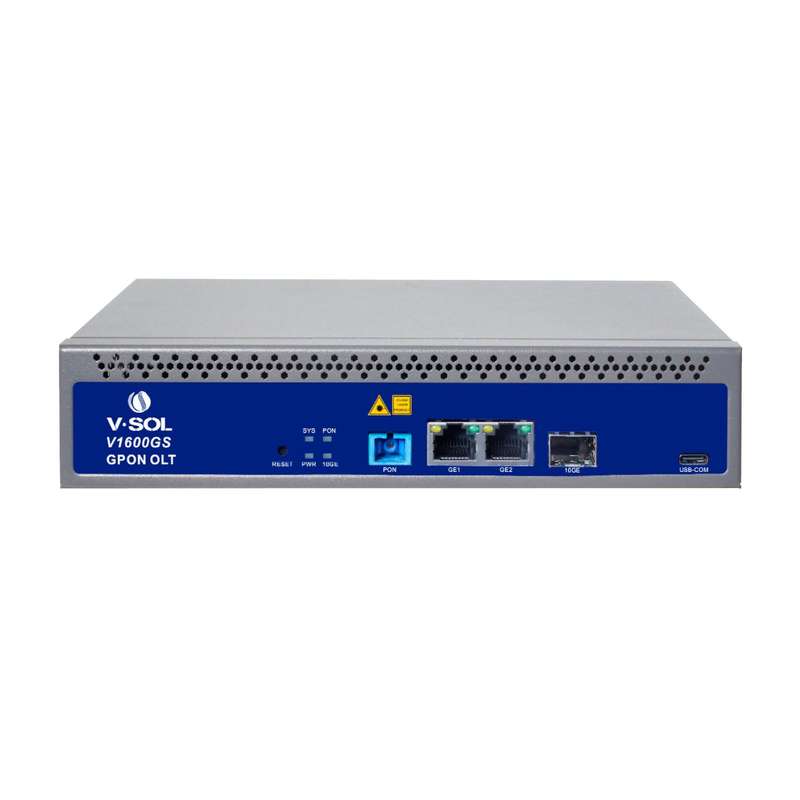

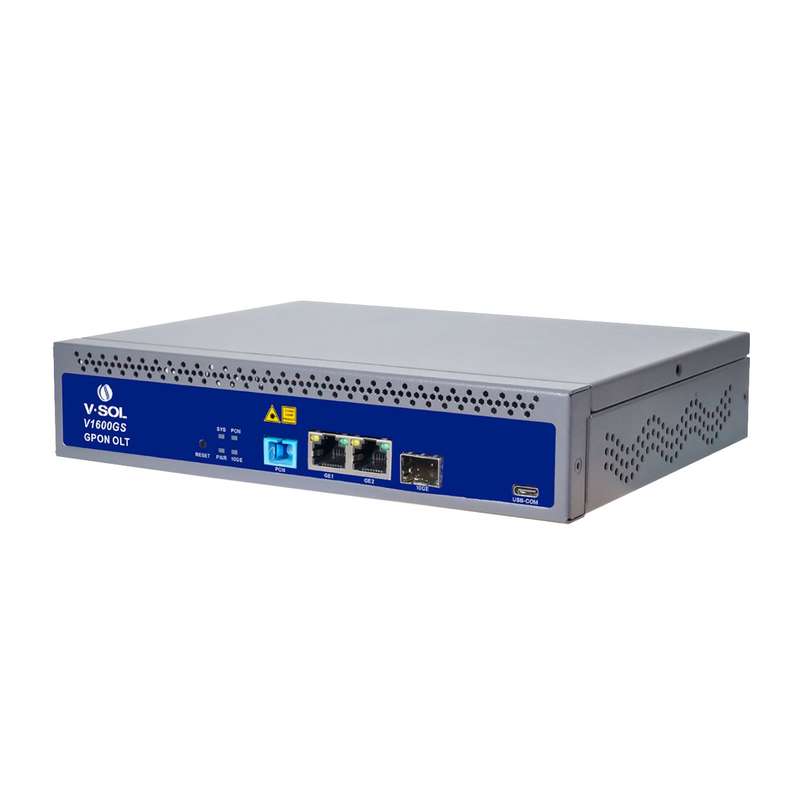

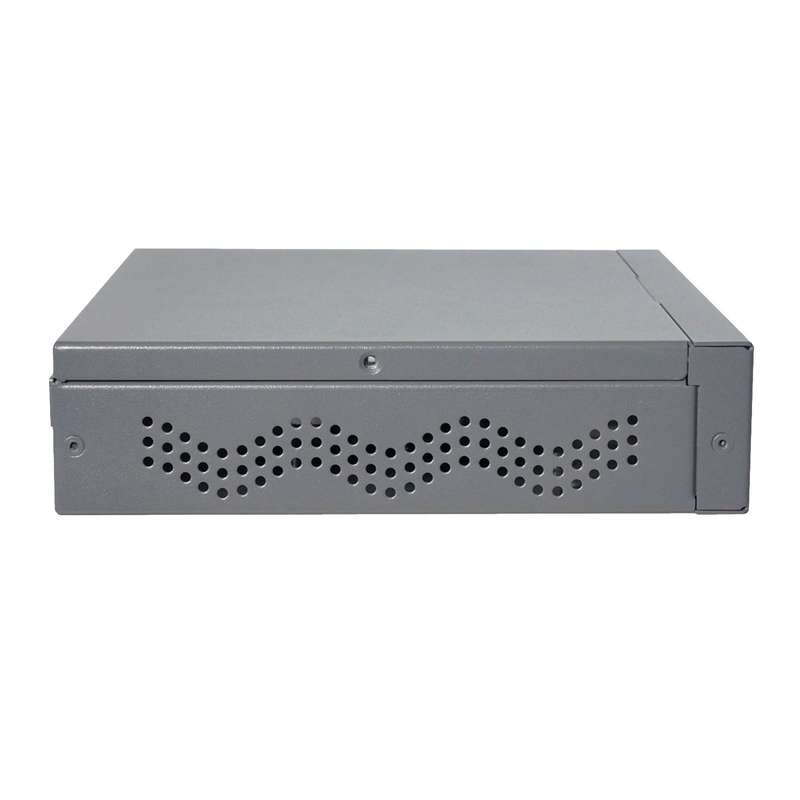

The VSOL V1600GS-F Single Port GPON OLT is a high-performance, cost-effective optical line terminal purpose-built for delivering ultra-fast and reliable fiber optic connectivity across small to medium-sized networks. Designed in a compact 1U box form factor, the V1600GS-F integrates GPON OLT functionality with gateway and AC controller features, making it an all-in-one solution for FTTH (Fiber-to-the-Home), SOHO environments, SMBs, and rental housing network upgrades.
Equipped with one GPON port and supporting a splitting ratio of up to 1:128, this device can handle large-scale user deployments while maintaining excellent performance. With transmission distances of up to 20km, the V1600GS-F ensures stable and long-range coverage, perfect for delivering gigabit broadband services over passive optical networks.
Capable of 1.25Gbps upstream and 2.5Gbps downstream, the V1600GS-F is ideal for applications that demand high throughput such as HD video streaming, IP telephony, cloud access, and enterprise-level data management. Its flexible deployment makes it suitable for both urban and rural network topologies where performance and affordability are critical.

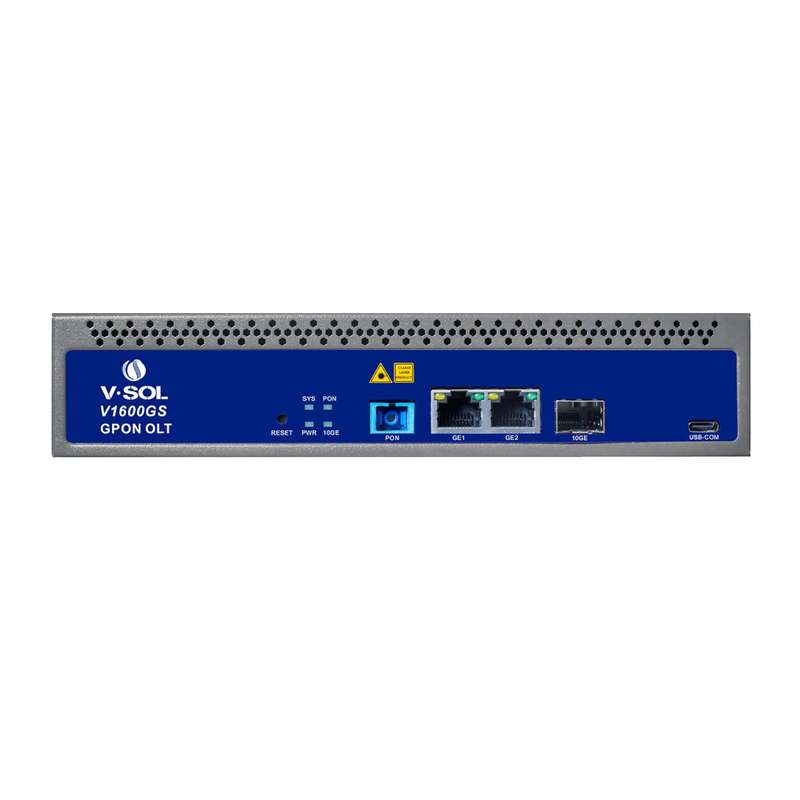

The device features three uplink ports two Gigabit Ethernet RJ45 and one SFP/SFP+ combo port supporting up to 10Gbps ensuring fast and scalable backhaul connectivity. It includes centralized network management through WEB, Telnet, CLI, and SNMP, offering streamlined deployment and simplified administration across a range of network architectures. With support for plug-and-play AP control and centralized AC management, it forms the backbone of a POL (Passive Optical LAN) setup for modern offices and enterprise parks.
Additionally, the V1600GS-F is engineered for resilience and durability, featuring 4KV lightning protection for power and 1KV surge protection on device interfaces. It also supports both AC (100~240V) and DC (12V/2A) power inputs, offering flexibility across installation scenarios.
FEATURES:
- All-in-one Single Port GPON OLT
- Integrated OLT, Gateway and AC Function
- High-Speed Fiber Optic Coverage
- Easy Installation Saves Investment
- Centralized Management and Plug & Play
- AC+AP Solution
- POL Network of Small & Medium-sized Enterprises
- Rental Housing Network Renovation
SPECIFICATIONS:
- Rack: 1U
- Uplink Port
- QTY: 3
- RJ45(GE): 2
- SFP(GE)/SFP+(10GE): 1
- GPON Port Specification
- QTY: 1
- Fiber Type: 9/125m SM
- Connector: SC/UPC, TX: 7.5±0.5dBm, Sen: -32dBm
- GPON port speed: Upstream 1.244Gbps | Downstream 2.488Gbps
- Wavelength: TX 1490nm, RX 1310nm
- Max splitting ratio: 1:128
- Transmission Distance: 20KM
- Management Ports: 1 x USB-COM(Type-C) port
- Backplane Bandwidth: 16Gbps
- Port Forwarding Rate: 23.808Mpps
- Management Mode: WEB/Telnet/CLI/SNMP
- Power Supply
- AC Power Adapter: Working Voltage Range: 100~240V | Rated Voltage: 110V/220V
- DC Power Adapter: DC 12V/2A
- Lightning Protection Level
- Power supply: 4KV
- Device Interface: 1KV
- Product Dimensions: 21 x 17.3 x 4.36 cm
- Product Weight: 1070 g
WHAT'S IN THE BOX:
- VSOL V1600GS-F Single Port GPON Optical Line Terminal x1
