Specification:
| Model | SpeedyBee TX ULTRA |
| Frequency Channel: | 5.8GHz 48CH |
| Output Power: | PIT / 25mW / 200mW / 800mW / Max mW |
| Working Current: | 12V @ 90~560mA |
| Voltage Out: | 5V @ Max 300mA |
| Voltage In: | 7-28V (6S) |
| Video Input Impedance: | 75 Ohm |
| Antenna Connector: | MMCX |
| Weight: | 7g (without antenna) |
| PCB Size: | 29mm*28mm*6mm @ 20*20mm M2 holes |
Feature:

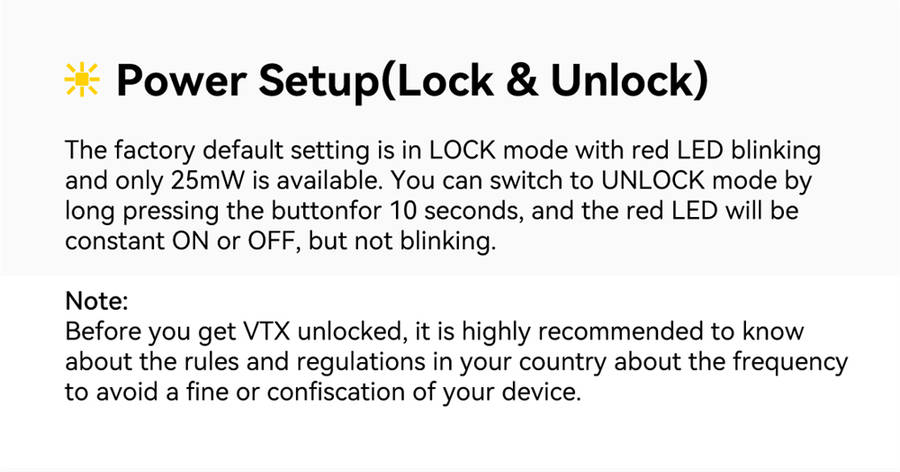

- Adjustable Power Output and High-efficiency Heat Sink: 5.8GHz 48CH, PIT/ 25mW/ 200mW/ 400mW/ 800Mw switchable

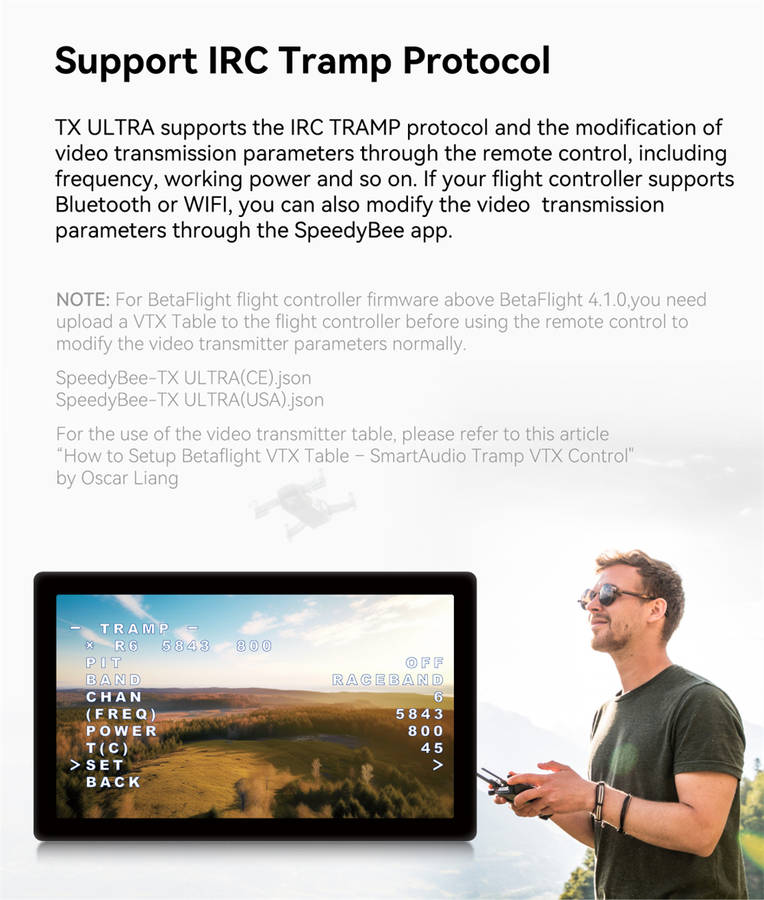

- IRC Tramp Protocol Support: Support to modify the image transmitter parameters through the remote control. You can also modify the parameters of image transmitter through SpeedyBee App.
- Pit Mode Support: When you are flying in the same field with other players, PitMode can make you more calm to power up the aircraft for parameter adjustment without disturbing other players,
- Side LED Indicators: 3 kind of color LED indicators help you know the intuitive status of the channel, band and the power.
- Simple Installation:Mounting hole distance of 20 x20mm makes convenient stacking with your other electronics.
Package included:
1 x TX ULTRA
1 x MMCX to SMA Cable
1 x MMCX Antenna
1 x 1.0mm 4pin Cable
