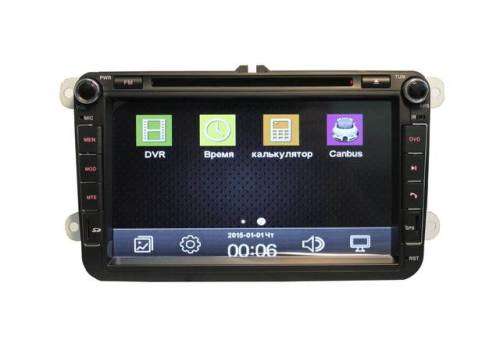

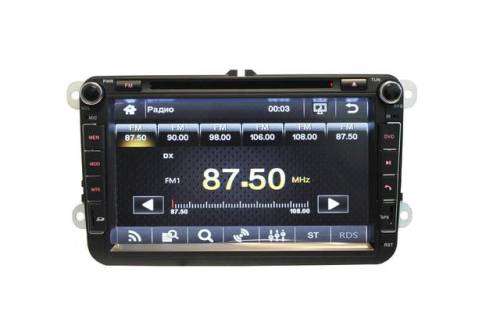

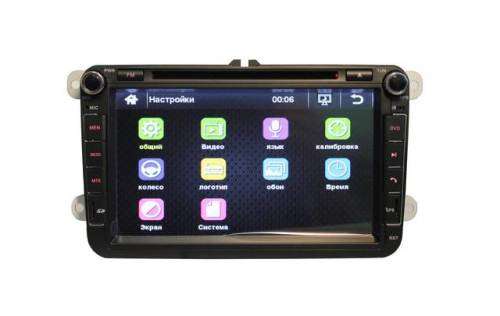

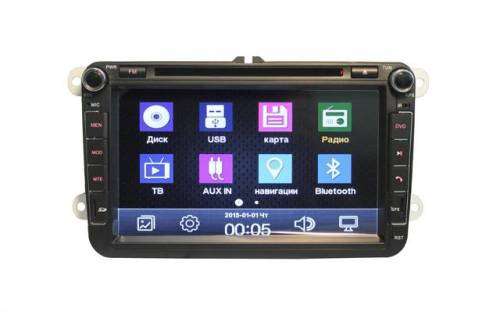

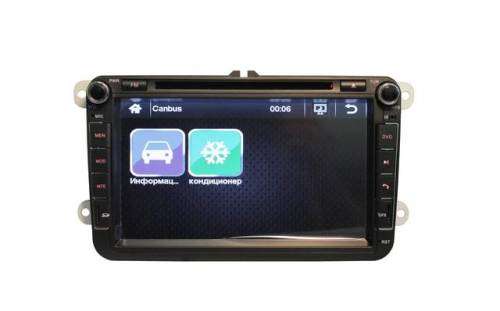

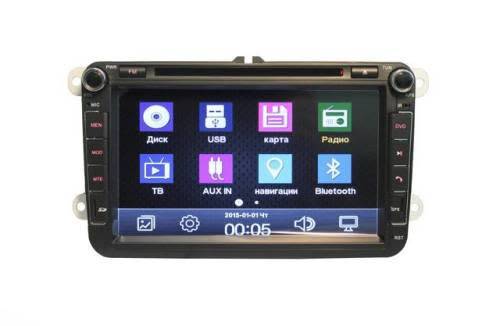

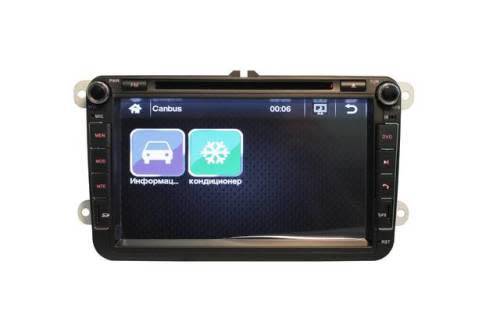

VW Car Multimedia Audio/Video Entertainment System 8328 GPS

 General Parameters :

Operating Voltage : 12V
Operating Voltage Range ; 10.8 - 16V
Maximum Current Consumption : 15A
Operating Temperature Range : -10*C - 60*C
Storage Temperature Range : -20*c - 85*C

FM Section :
Frequency Range : 87.5 - 108MHz
Signal to noise ratio : 60dB
Sensitivity : 9.3dB
Frequency response range : 30Hz - 15KHz

AM Section :
Frequency Range : 522KHz - 1620KHz
Sensitivity : ( SN - 20dB) : 20dB
Frequency response range : 50Hz - 2KHz

TV Section :
Frequency Range : 48.25MHz - 863.25MHz
Receiving Pattern : PAL B/G,I,D/K,N,NTSCM,SECAM B/G,I AND D/K
Video signal to noise : 45dB
Audio signal to noise : 46dB

DVD/CD Section :
Signal to noise ratio : 65dB
Frequency response range : 20Hz - 20KHz
MSP ( mechanical shock protection ): 10-200Hz,X/Y/Z: 1.0G
ESP(electronic shock protection):DVD for 2-3 sec , CD for 10 sec , MP3 for 100 sec , WMA for 200 sec

Specification:
Mp3 , MP4 , DVD , CD
USB , SC card
GPS
