VW Car Rear View Reverse backup Camera for Volkswagen
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details

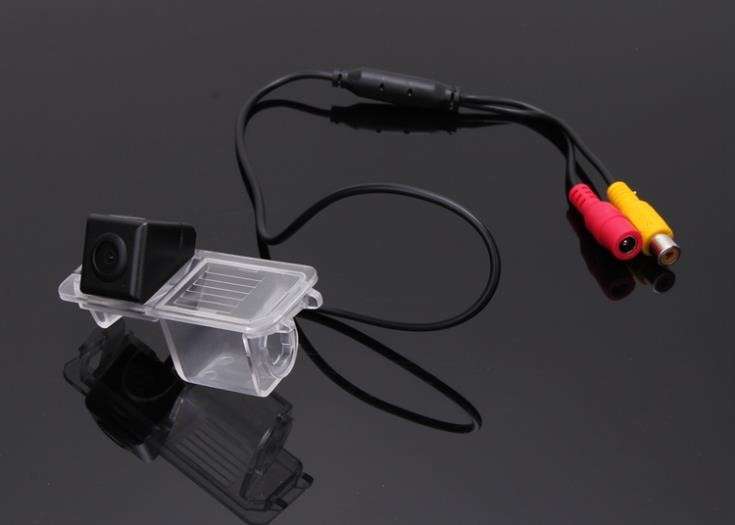

CCD Special Car Rear View Camera for:
VW Polo V hatchback (6R) (2010 - Present)
VW Golf VI (2009 - Present)
VW Passat CC (2008 - Present), 2013 BEETLE
PLS kindly Take Note as below :

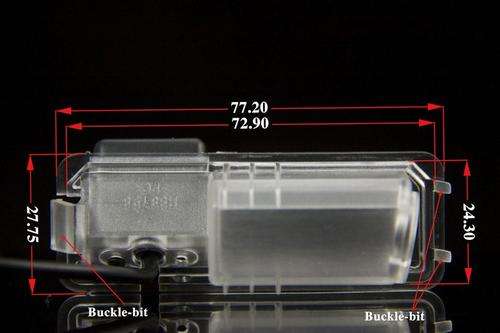

To be safe, please pay attention to dimension picture before buying.
Please kindly make sure that our product's size is same with your car’s license plate light, This camera will replace one of the license plate lights.
Image Sensors | Colour night vision |
Effective Pixels | NTSC656 x 492 |
Electronic shutter | 1/60 1/20,000sec |
Resolution (TV Lines) | 420 |
Minimum illumination | 0.1 Lux / F1.2 |
Horizontal Sync. Frequency | 15.625 KHZ |
Vertical Sync. Frequency | 60 HZ |
Video Output | 1.0vp- p 75 Ohm |
Gamma Consumption | 0.45 |
AGC | Auto |
BLC | Auto |
Night Vision | Yes |
IP Rating | IP67-68 |
S/N ratio | Better than 48dB |
Lens | F=1.6 |
Lens Angle (Deg.) | 170 |
Current Consumption (mA) | 120 |
Power Supply (DC V) | 12 |
Operating Temperature (Deg.C) | -20 70(RH95% Max.) |
Storage Temperature (Deg.C) | -40 80(RH95% Max.) |

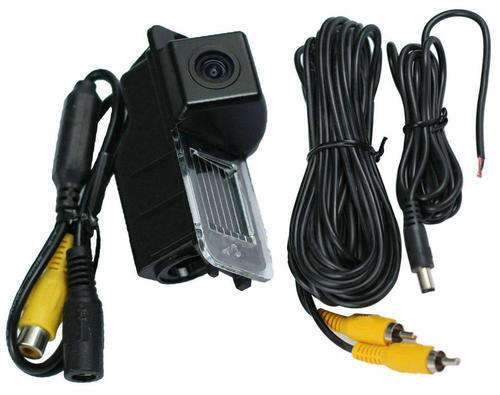

Package:
1 x car Camera
1x 6m video cable
1x power supply cable
1X user manual

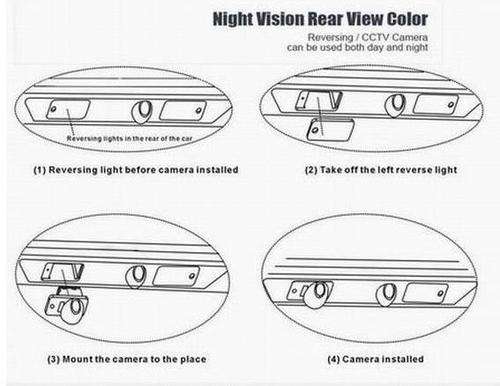

How to Install :
Take out your stock license plate light at the back of your car
Fix the camera to where the stock license plate light was
Connect the built-in license plate light of the camera to where the stock license plate light was connected to get the power
Connect the power of the camera to your reverse lights - red wire to positive and black wire to negative
Connect the video cable of the camera to the extension cord
Connect the extension cord to your car monitor
You will see the images when your car is in reverse shift.
