W1209 Temperature Controller Thermostat (-50 to 110deg) DC 12V With Long Probe **LOCAL STOCK**

Thermostat Temperature Controller DC 9-15V:

Category: 1500312645 / 1510312645 - Controller Humidity / Temperature

Specifications:

Control Range: -50 to 110 Celsius
Input Power: DC 12V
Resolution: -9.9-99.9 0.1 , other temperature ranges 1
Measuring Inputs: NTC (10K 0.5%) Waterproof sensor 0.5M
Output Range: 1 way 10A relay
Environmental Requirements: -10-60 , Humidity 20% -85%
Refresh Rate: 0.5S
Temperature Protection: 0-110
Display Type: 0.28 " Three digital display tube
Size: 48 x 29 x 33mm

Probe Length: 1.5 Meter

Instructions:

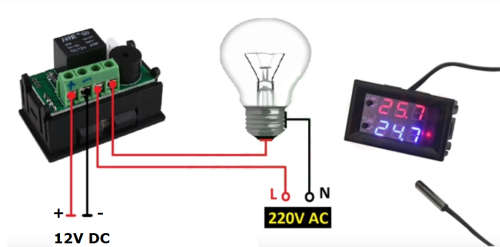

Connect the power supply and the load, you can supply to the controller,Is displayed as a measured temperature,Press the SET button, the display flashes the temperature,Press + - to set the desired temperature,After setting press SET to confirm return,The controller automatically performs the relay by setting off!
LED status descriptions:Indicator: Off The relay is switched off, Always indicate the relay is closed. LED: Shows LL is the sensor open, showing HH is out of range.
Parameter Function: Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press SET or 10 seconds of no key activity confirmed their return to the controller
Code          Code Description           Setting range         Factory setting
P0               Cooling /Heating                    C/H                          C
P1               Hysteresis setting                 0.5-15                        2
P2               Highest setting upper limit      110                       110
P3               Lowest setting upper limit       -50                       -50
P4               Temperature correction          -7-7                        0
P5               Delay start time                  0-10 Minutes               0
P6               High temperature alarm        0-110                     OFF
Off state, long press + - boot to restore the factory settings
