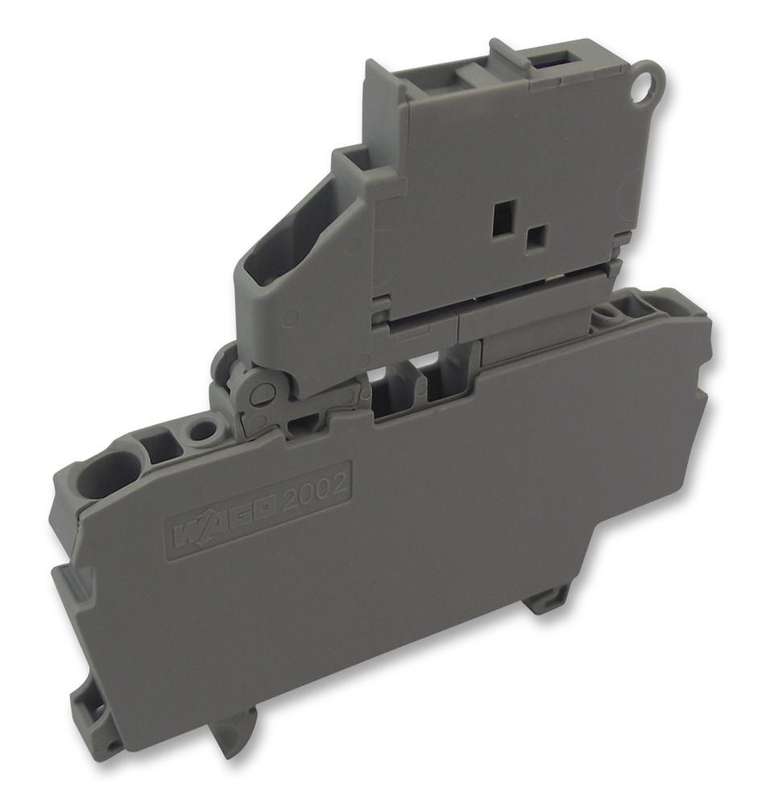

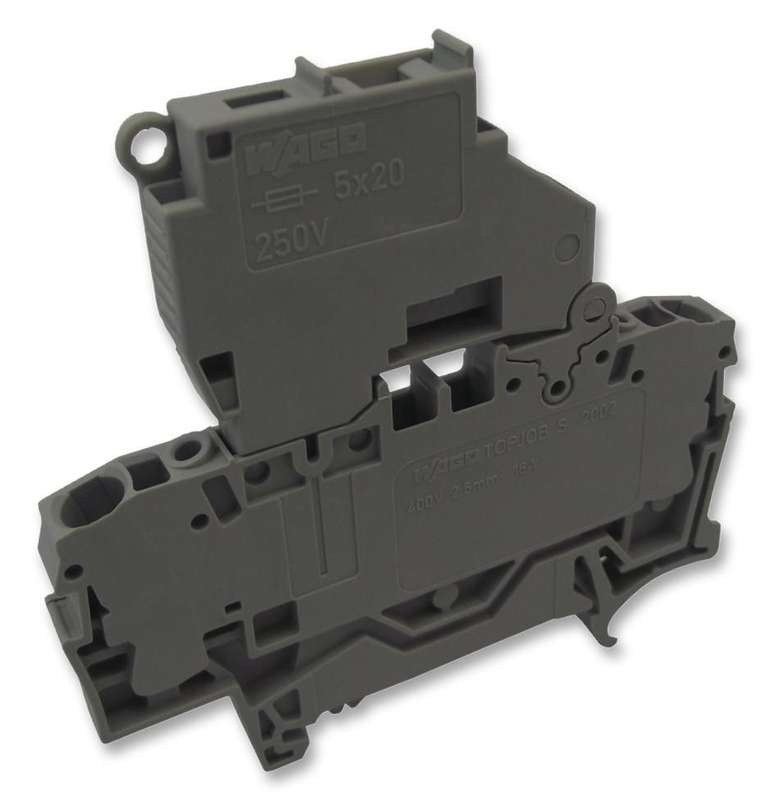

Wago (2002-1611) Fused Terminal Block, Disconnect, 2 Ways, 22AWG to 12AWG

Fused Terminal Block, Disconnect, 2 Ways, 22AWG to 12AWG, 4 mm², Clamp, 6.3 A,250 VProduct Overview2-conductor fuse terminal block with pivoting fuse holder and end plate.Certified by UL 60079, EN 60079, CNCA-C23-01, C22.2 No. 158, UL 1059. It hasrated voltage UL (use group B) of 250V, rated current UL (use group B) of 10A,nominal voltage (III/3) of 250V/rated current of 6.3A (IEC/EN 60947-7-3), ratedvoltage CSA (use group B) of 250V/rated current CSA (Use Group B) of 6.3A.Suitable for 5 x 20mm miniature metric fuseWithout blown fuse indicationFor DIN-rail 35 x 15 and 35 x 7.5Push-in CAGE CLAMP® connection technologyProcessing temperature range from -35 to +85°CGrey colour polyamide (PA66) insulationFire load is 0.282MJ, weight of 13.2gDimension width is 6.2mm x height 66.1mm x depth from upper-edge of DIN-rail57.2mm2.5mm² nominal cross-sectionTotal number of connection is 2 pointsProduct InformationWire Size (AWG): 22AWG to 12AWGWire Size AWG Min: 22AWGWire Size AWG Max: 12AWGConductor Area CSA: 4mm²Wire Connection Method: ClampRated Current: 6.3ARated Voltage: 250VFuse Size Held: 5mm x 20mmProduct Range: TOPJOBS 2002
