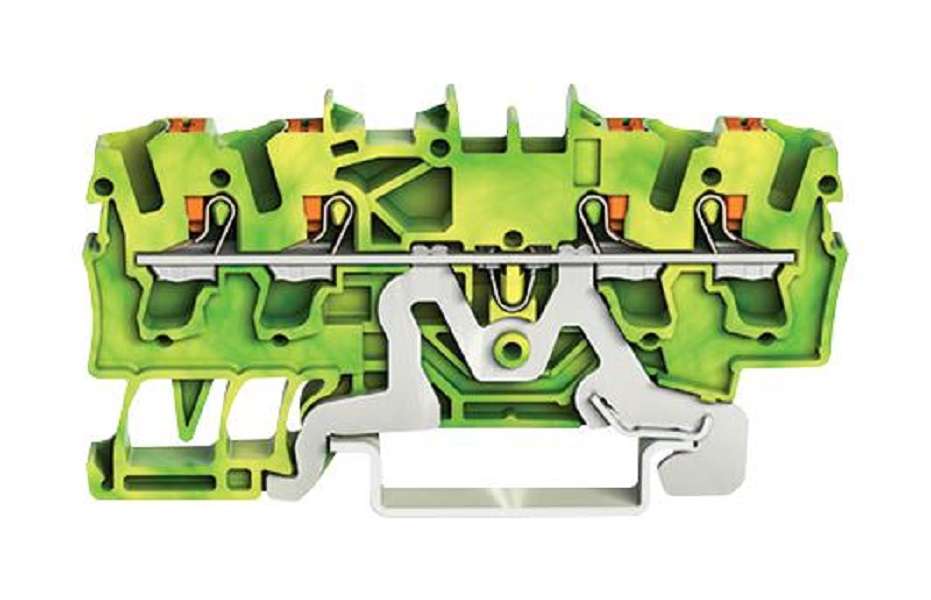

DIN Rail Mount Terminal Block, Ground, 4 Ways, 12 AWG, 12 AWG, 2.5 mm, Clamp, 24AProduct Overview4-conductor ground terminal block with push-button. Certified by UL 6007, IEC60079-0, CNCA-C23-01, TP TC 012/201, IEC 60079, EN 60947, C22.2, IEC 60947.With test port, side and centre markingConnectable conductor materials is copperFor DIN-rail 35 x 15 and 35 x 7.5Push-in CAGE CLAMP connection technologyOperating temperature range from -60 to +105°C (continuous)Green-yellow colour polyamide (PA66) insulationWeight is 10.8gDimension width is 5.2mm x height is 69.9mm x depth from upper-edge of DIN-rail32.9mm2.5mm² nominal cross-sectionTotal number of connection is 2 pointsProduct InformationWire Size AWG Min: 12AWGWire Size AWG Max: 12AWGConductor Area CSA: 2.5mmWire Connection Method: ClampRated Current: 24ARated Voltage: 800VNo. of Levels: 1Product Range: TOPJOBS 2202
