Wago (733-336) Terminal Block, Header, 2.5 mm, 6 Ways

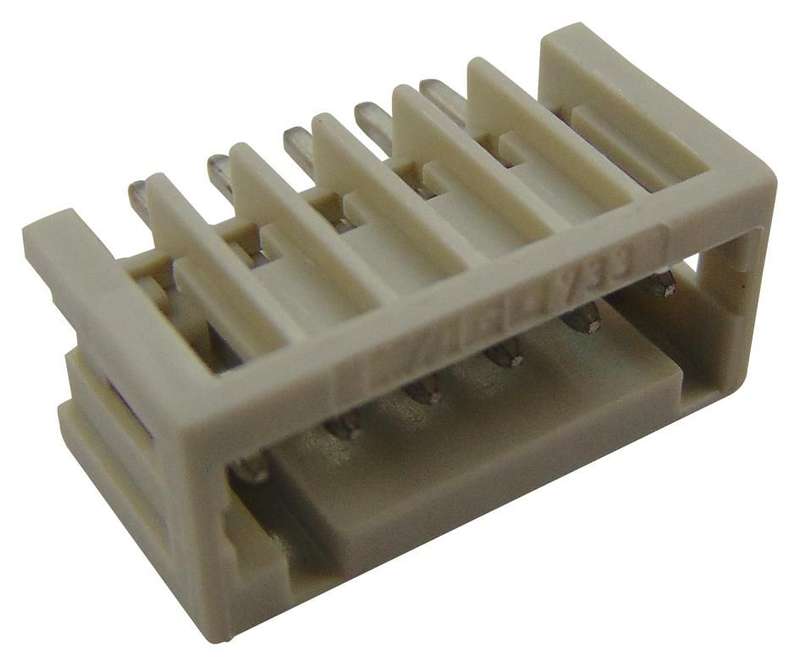

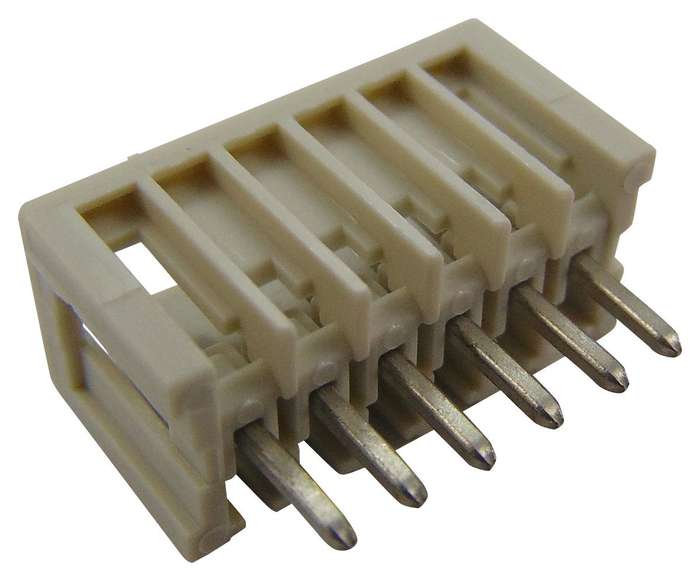

Terminal Block, Header, 2.5 mm, 6 Ways, 4 A, 150 V, Through Hole VerticalProduct OverviewThe 733-336 from Wago is a light gray colour 6-pole, 2.5mm pin spacing maleheader with straight solder pins and closed end for PCBs. This connector is 100%protected against mismating, only mating halves with the same pole number can beconnected together and it is vertical PCB mounting type. It has ABS, BV, CCA,CSA, DNV GL, KEMA, UR (Underwriters Laboratories Inc) and LR approvals.Ratings per IEC/EN 60664-12.5KV rated impulse voltage (III / 3), 2.5KV rated impulse voltage (III / 2)160V rated voltage (III/2), 320V rated voltage (II / 2) & 6A rated currentSingle number of levels, robust housingShock and vibration resistantPolyamide 66 (PA 66) insulating material, flammability class per UL94 V0Limit temperature range from -60°C to 100°CElectrolytic copper (Ecu) contact material with tin contact plattingSolder pin length is 4.6mm, drilled hole diameter (tolerance) is 1.1mm (+ 0.1)Dimension is 17.5mm x 13.5mm x 7.8mm (W x H x D) and 0.87g weightApplicationsIndustrialProduct InformationPitch Spacing: 2.5mmRated Current: 4ARated Voltage: 150VProduct Range: 733
