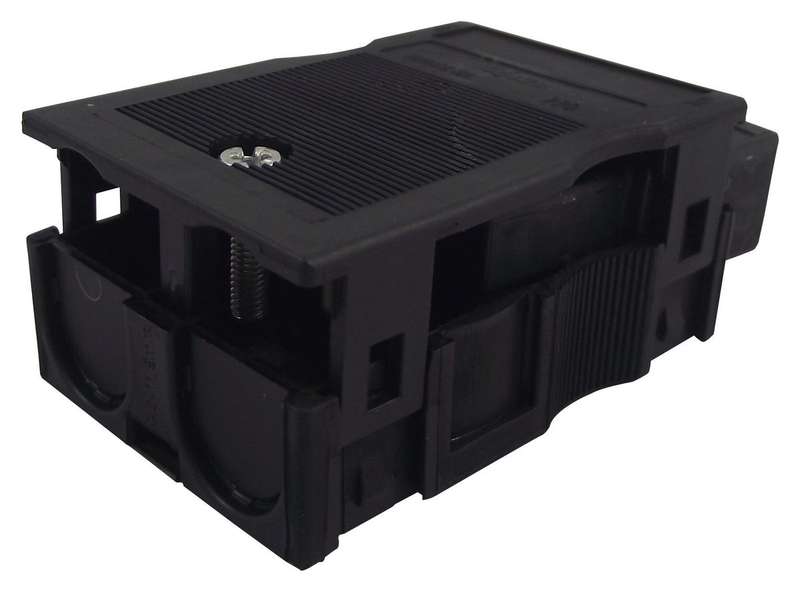

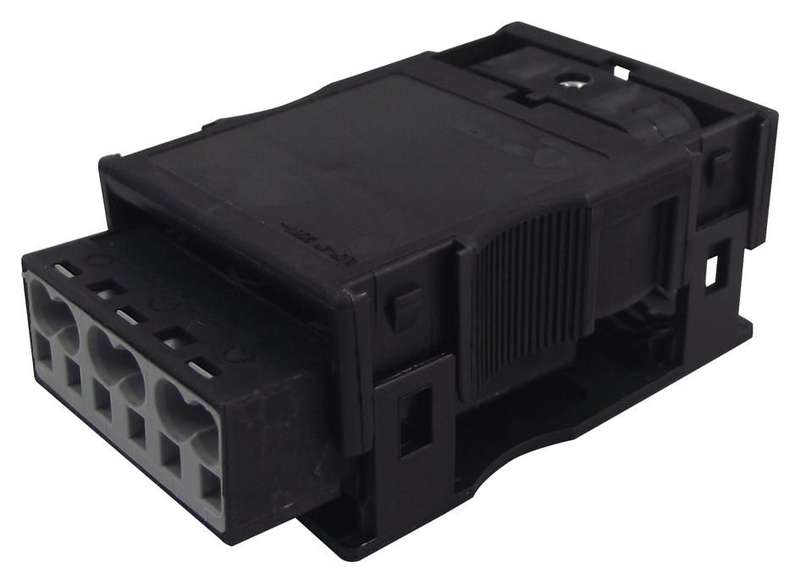

Wago (770-113) Rectangular Connector, 3 Contacts, Plug, 10 mm, Clamp, 1 Row

Rectangular Connector, WINSTA MIDI, 3 Contacts, Plug, 10 mm, Clamp, 1 RowProduct OverviewThe 770-113 from Wago is a WINSTA 3 pole plug with strain relief housing. Thisconnector is factory equipped with locking levers to ensure plugs and socketsare securely locked.Pin spacing of 10mm (0.394inch)100% protected against mismatingCable diameter of 8mm to 11.5mmProcessing temperature range from -5°C to 40°CBlack colour polyamide 6.6 insulationClamping spring material is chrome-nickel spring steel (CrNi)Contact material is copper or copper alloy (surface treated)Push-in CAGE CLAMP connection technologyVDE approved and pollution degree of 3Rated voltage of 250V and nominal current of 25AApplicationsIndustrialProduct InformationProduct Range: WINSTA MIDINo. of Contacts: 3ContactsGender: Plug (View Associated Connectors)Pitch Spacing: 10mmContact Termination Type: ClampNo. of Rows: 1 RowConnector Mounting: Cable MountContact Plating: -Contact Material: -
