Features:

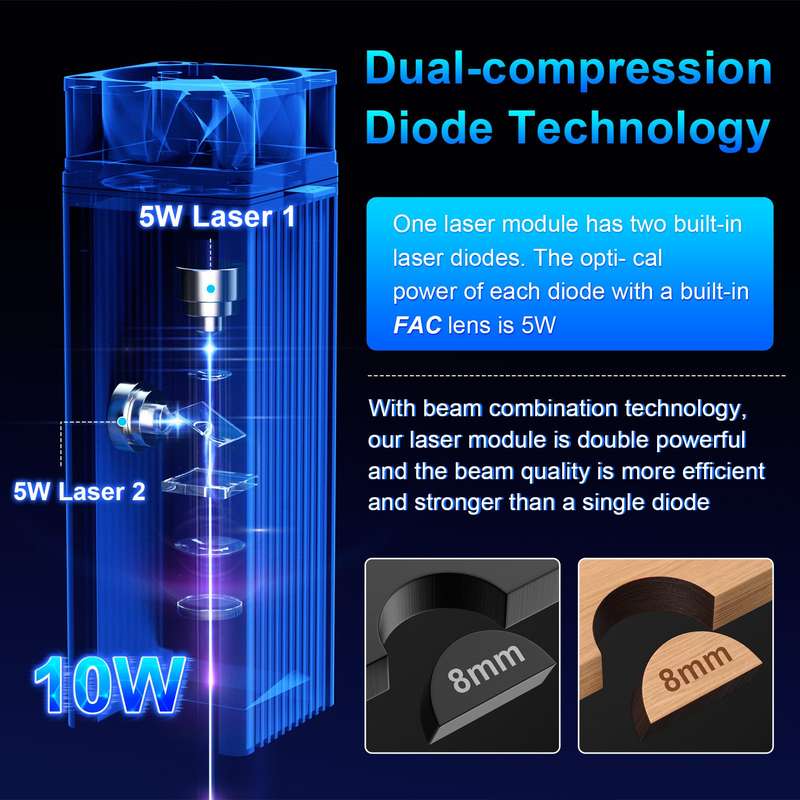

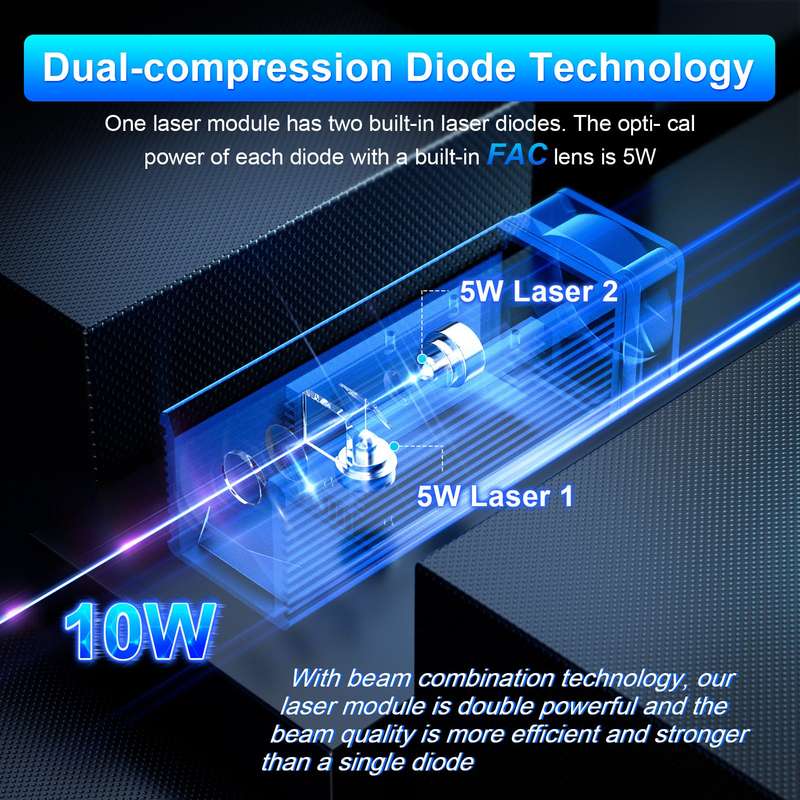

Super high-power laser module: JL7 adopts the latest Dual-compression diode technology, which can achieve real 10W laser output, is able to easily cut off 8mm pine board and 8mm black acrylic with only one pass, regarding other low-density objects cutting, is a piece of cake for JL7 model, benefit from two built-in laser diodes, engraving stainless steel also turn to easy and simple.
Higher Accuracy: WAINLUX JL7 laser cutter adopts a 0.08mm*0.05mm ultra-fine compression spot, achieving detailed and vivid engraving images, besides, the motion accuracy can even reach to 0.01mm, which can easily achieve engrave your photo like 1:1.
Advanced 32-bit chip: Through internal firmware optimization, JL7 can directly use market-mature software like Lightburn and LaserJRBL, ￂﾠgreat for professional engravers, the operation steps are simplified, and the operation difficulty and time cost are reduced, just plug and play; Of course, this machine also supports the ourself-developed native program for beginner, which is easy to use and for free in whole life.
Wide Software Compatibility: JL7 machine is compatible with LightBurn, and LaserGRBL(not support mac) ￂﾠsoftware. Free to transfer data via BT, USB data cable or TF card. WAINLUX's self-developed APP is a beginner-friendly software that is easy to use and powerful.ￂﾠ
Modular Design: The modular design and the accompanying assembly instruction video make it easy for even a novice to complete the assembly within 8 minutes. Thanks to the independent distinction of each part, we can easily do replacement and upgrade.
Specification:
Model: JL7

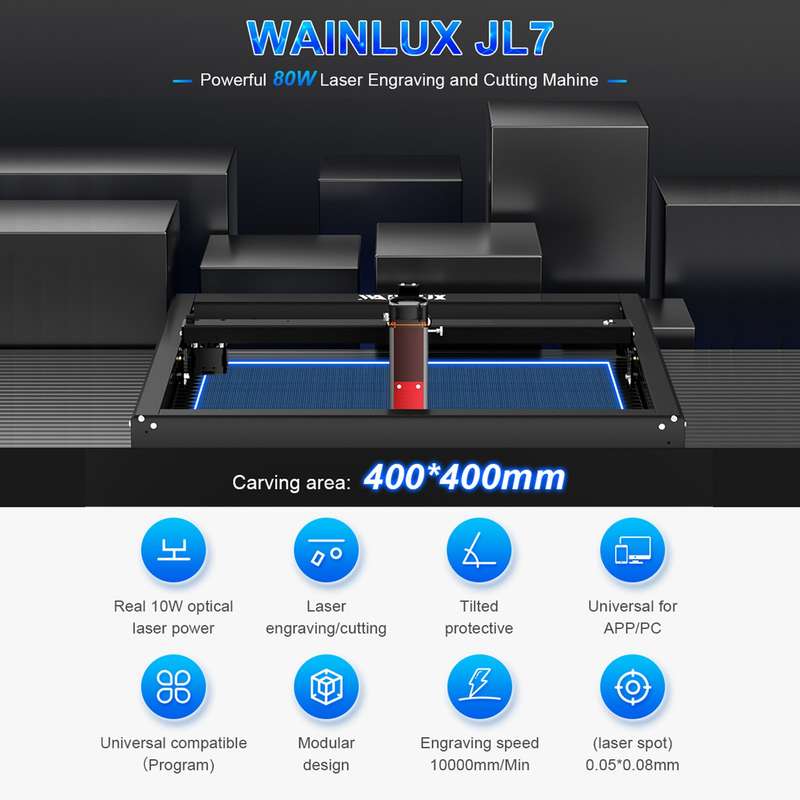

Work Area: 400x400mm
Machine power (electric power): <60W
Engraving accuracy: 0.05mm
Heat dissipation method: air cooling
Laser Power: 10W Spot Compression
Laser Wavelength: 455nm
Laser module focus type: spot compression
Engraving speed: <100mm/s
Picture format: JPEG/BMP/PNG/JPG/GIF
Vector format: DXF/PLT/HPGL
Support Software: GRBL, LaserGRBL, LightBurn
Support OS: Xin Jia platform (windowsOS, macOS, Android, IOS);ￂﾠ
GRBL software platform (windowsOS, macOS)
ￂﾠNote: LaserGRBL software does not support macOS temporarily.
Motor: stepper motor
Motor driver: stepper motor driver chip
Processor: 32-bit high-speed MCU
Cutting materials: cardboard, wood, cloth, leather
Engraving Materials: most non-transparent materials such as cardboard, wood, cloth, leather, stone, ceramics, stainless steel (only light spots can be compressed); transparent materials such as glass can also be engraved after being blackened.
Product Size: 60.5x60.3x15.6cm/23.8x23.7x6.1in
Product Weight: 3.5kg/7.7lb
Package Size: 64.5x26.5x18.7cm/25.3x10.4x7.3in
Package Weight: 5.2kg/11.4oz
