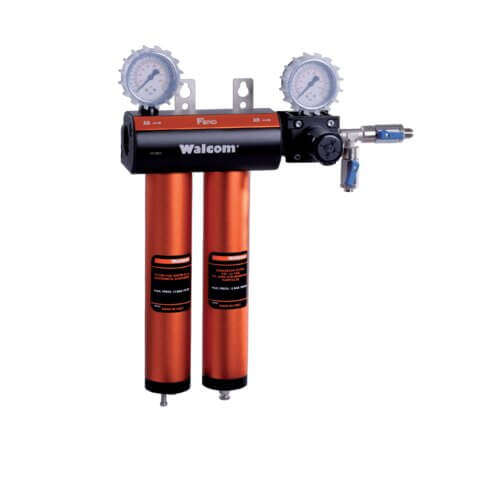

Walcom FRSD Air Filtration System

Walcom® series filter groups represent the maximum expression of quality in terms of compressed air treatment in bodyworks. Line, drop line, paint booth: perfectly clean and filtered air is a must, and for this reason Walcom® has created a complete range of single and combined filter groups, able to fully eliminate all water, oil, dust and humidity residue from mains air, generating breathable air thanks to the active carbon filter. The new /11 series combines a restyled look with higher efficiency which, thanks to the new air passage designs, guarantees 1200 l/min air flow, allowing for efficient bodyworks with even 2 spray guns.

Central bodyAnodized aluminium

Composition1) Pre-filtering element in sythentic fibre for the elimination of condensation.

Automatic discharge.2) Oil-separating filter for the elimination of residual pollutants.

Manual drainage tap.

Pressure adjuster

Membrane system and automatic decompression

Air Inlet F 3/4"

Air outlet Nr. 2 from M 1/4"

Filtering power Air 5 - oil 0.01

Working Pressure 12 bar

Air Consumption 1200 l/min to 6 bar

Weight4.7 Kg
