Product description:

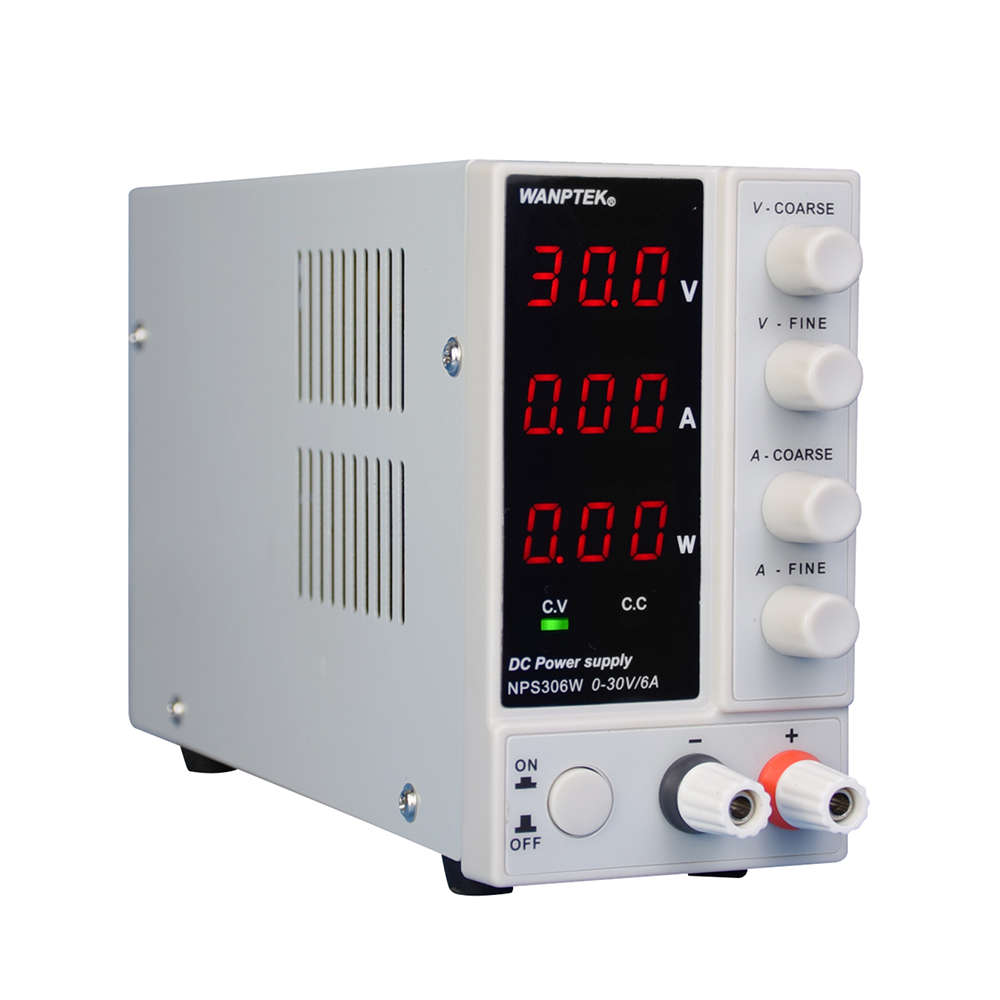

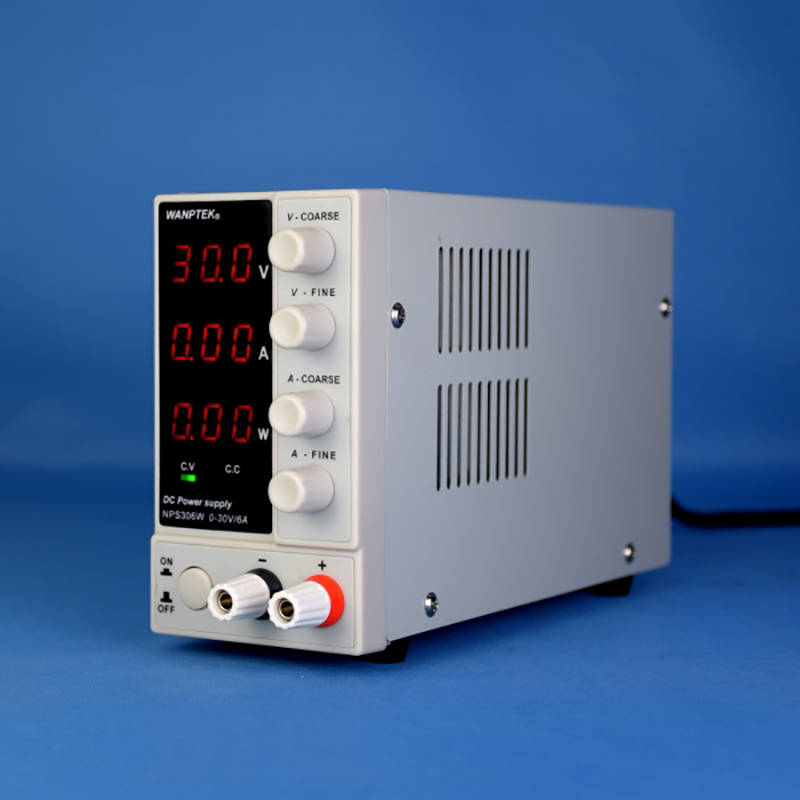

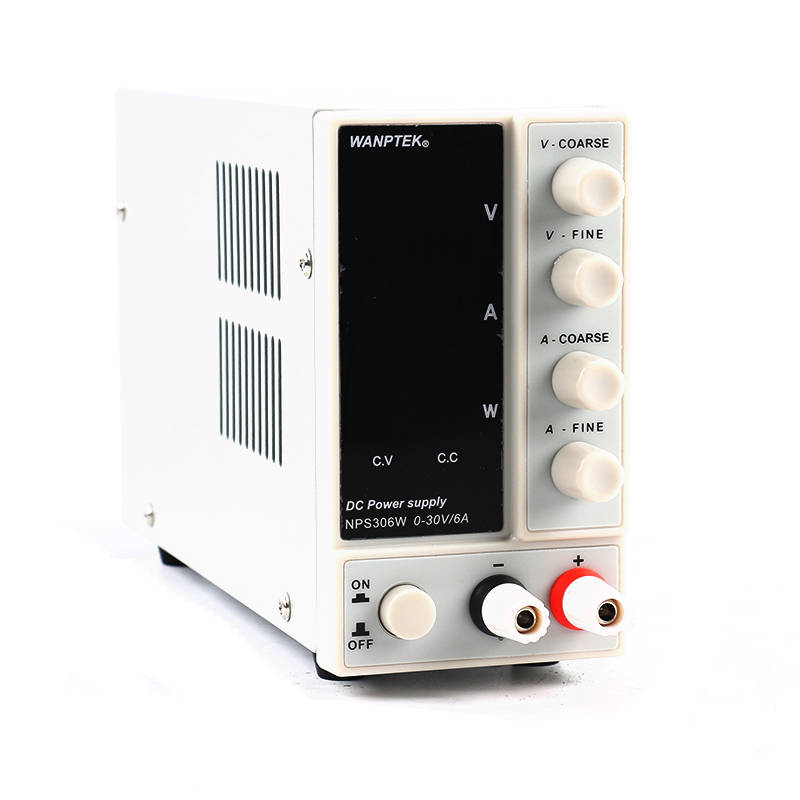

The Wanptek NPS-W series is a three-window display mini DC power supply that simultaneously displays voltage, current, and power.
This product improves the shortcomings of traditional linear power supplies that are bulky, heavy, and inefficient.
The output voltage and current of the product can be controlled and adjusted by coarse adjustment and fine adjustment potentiometer respectively, so it provides more convenience and precision in voltage and current adjustment.
Specification:
Product model | NPS306W |
| Output Voltage | 0~30V |
| Output Curent | 0~6A |
| Output Power | 180W |
| Workling environment |
| Input voltage: | AC 230V/115V±10%; 50Hz/60Hz |
| Working temperature: | 0C~40￢ﾄﾃ; relative humidity: <80%RH |
| Storage temperature: | -10￢ﾄﾃ~70￢ﾄﾃ; relative humidity: <70%RH |
Constant voltage CV |
| Voltage stability: | 0.1%±3mV |
| Load stability: | 0.2%±3mV |
| Ripple voltage: | =0. 5% Vp-p |
| 0 to rated voltage continuously adjustable |
| Constant current CC |
| Current stability: | 0.1%±3mA |
| Load stability: | 0.2%±3mA |
| Ripple current: | =0.5% Vp-p |
| Recovery time: | =500us |
| Temperature coefficient: | =100ppm/￢ﾄﾃ |
| 0 to rated current continuously adjustable |
| Display |
| Three-window digital tube display: voltage, current, power |
Display accuracy: 0.5%±digits |
| Display resolution: voltage (0.1V), current (0.01A), Power (0.1W/1W) |
Size and weight |
| Product size: | 70(W)x 130(H)x 230(L)mm |
Net weight: | 1.3Kg |
Features:
- Small size, light weight and high power density.
- Constant voltage, constant current automatic switching.
- Voltage, Current, Power 3 window display.

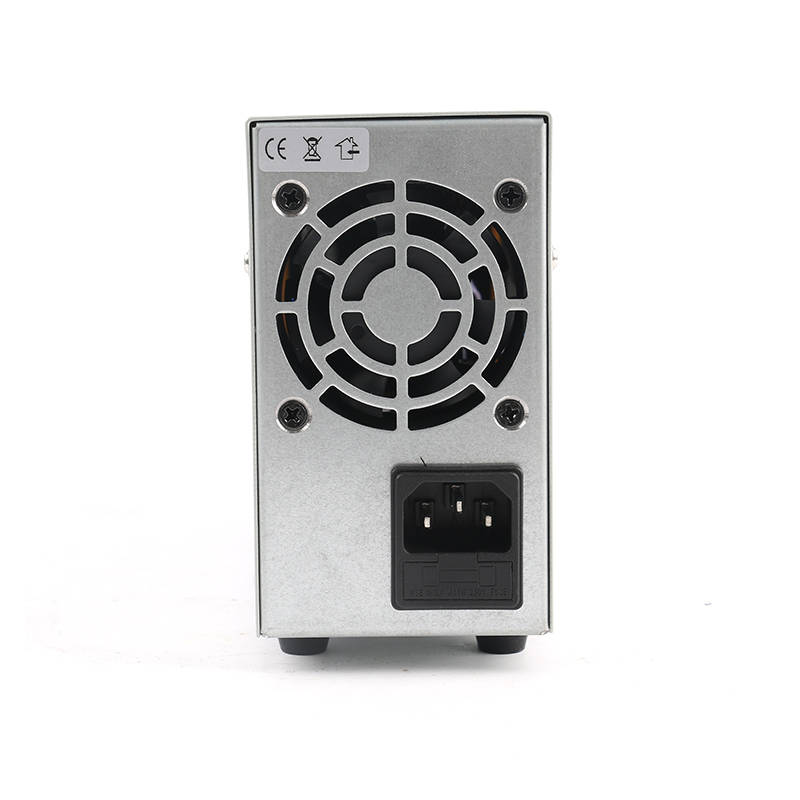

- Temperature controlled fan heat dissipation, low noise and long life.
Application field:
1. Production line testing.
2. Mobile phone, computer, electrical maintenance.
3. Product aging, plating.
4. Charge the battery.
5. Laboratory, research and teaching.
6. Everything else needs a DC regulated power supply.
Package include:
1 x NPS306W DC Power Supply
1 x Output Test Line
1 x Manual
