Water Level Switch

Water Level Switch

2 available / new
Only 2 left – grab it before it’s gone!
R92.00
Shipping
R65.00 Standard shipping applies to orders under R100.00, in most areas in South Africa. R35.00 Standard shipping applies to orders over R100.00. Some areas may attract a surcharge surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
SEN-00082
Bob Shop ID
635498554

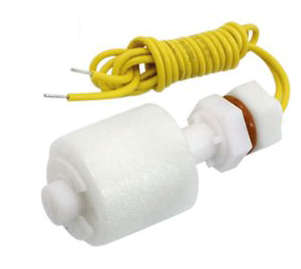

This switch is a device used to sense the level of liquid within a tank, it may actuate a pump, an indicator, an alarm, or other devices. When the float ball rises or falls with the liquid to the level of the switch, the magnetic force of the magnet which is inside of the floating ball will cause the reed switch to turn ON. When the floating ball move away from the reed switch, the reed switch will turn off.

Specifications:

Maximum contact rating: 10W
Maximum switching voltage: 100VDC
The maximum switching current: 0.5A
The maximum breakdown voltage: 220VDC
Maximum carrying current: 1.0A
Maximum contact resistance: 100mohm
Temperature rating: -20 to 80 degrees Celsius
Insulation resistance:> 10
Contact resistance: <100m
Float material: PP

Add to cart
